Controls MX Series User Manual

14
SPEED CONTROL OPTIONS
ELECTRONIC ENGINE SPEED CONTROL

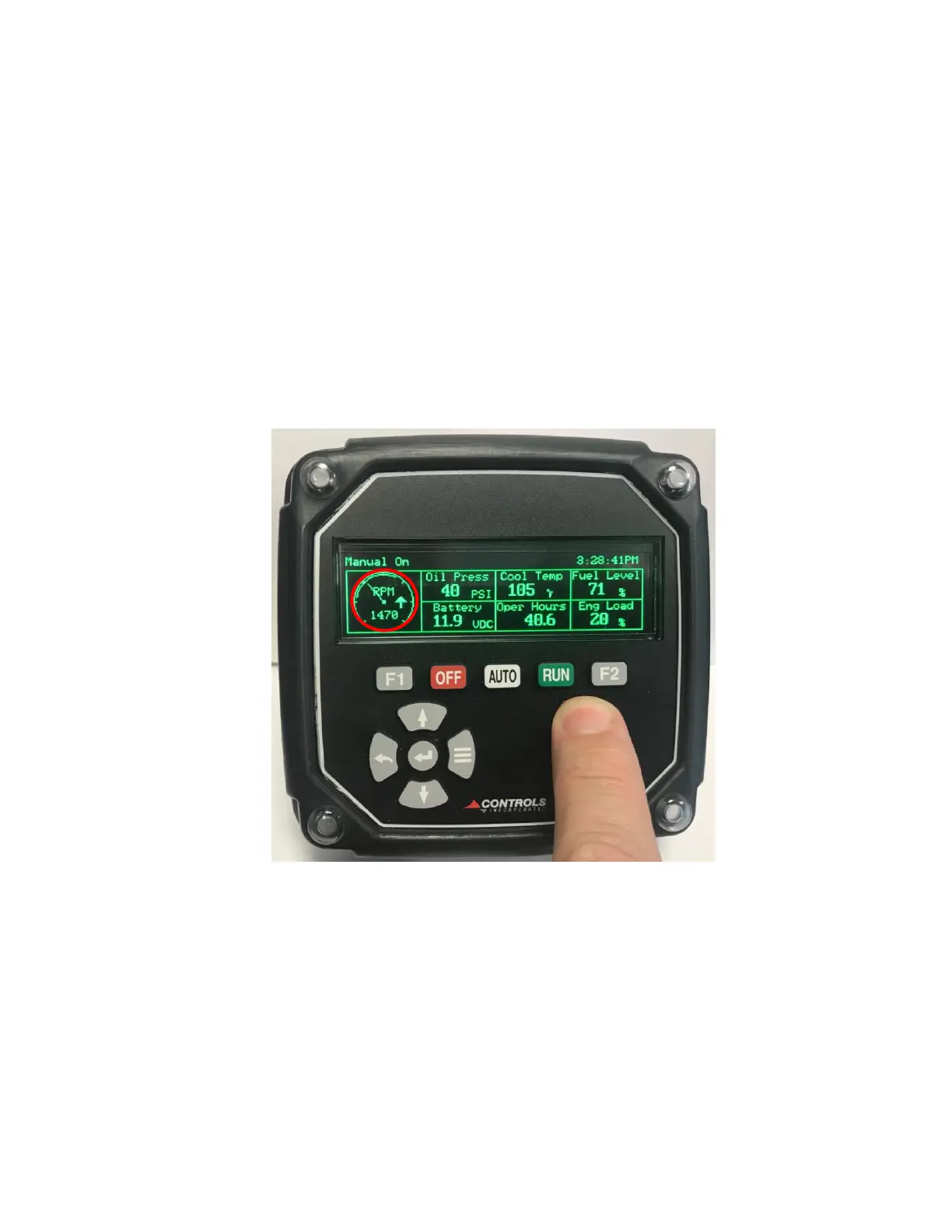

The display can control the engine’s speed using J1939 Torque Speed Control (TSC1). When the
engine is started manually, the control panel will request the minimum programmed speed. Pressing
the Up-arrow button will cause the panel to increase the requested speed. The display will place an up
or down arrow to the right of the RPM displayed to indicate that a change in speed is being
requested.
Please note that if the low idle speed on the engine’s ECU is higher than the minimum speed
programmed in the controller, the actual engine RPM will be the low ECU setting until the controller’s
speed request command (TSC1) exceeds the ECU low idle speed. This holds true for the high idle
speed set in the ECU as well.
