Controls MX Series User Manual

20
DISPLAY CONFIGURATION
GRAPHICAL DISPLAY
The MX Series uses a 3.2” diagonally measured, OLED (Organic Light Emitting Diode) display with a
resolution of 256x64 pixels. The OLED technology provides a vibrant display that is highly readable in
direct sunlight while also offering a wide temperature range of -40C to +80C for both operating and
storage.

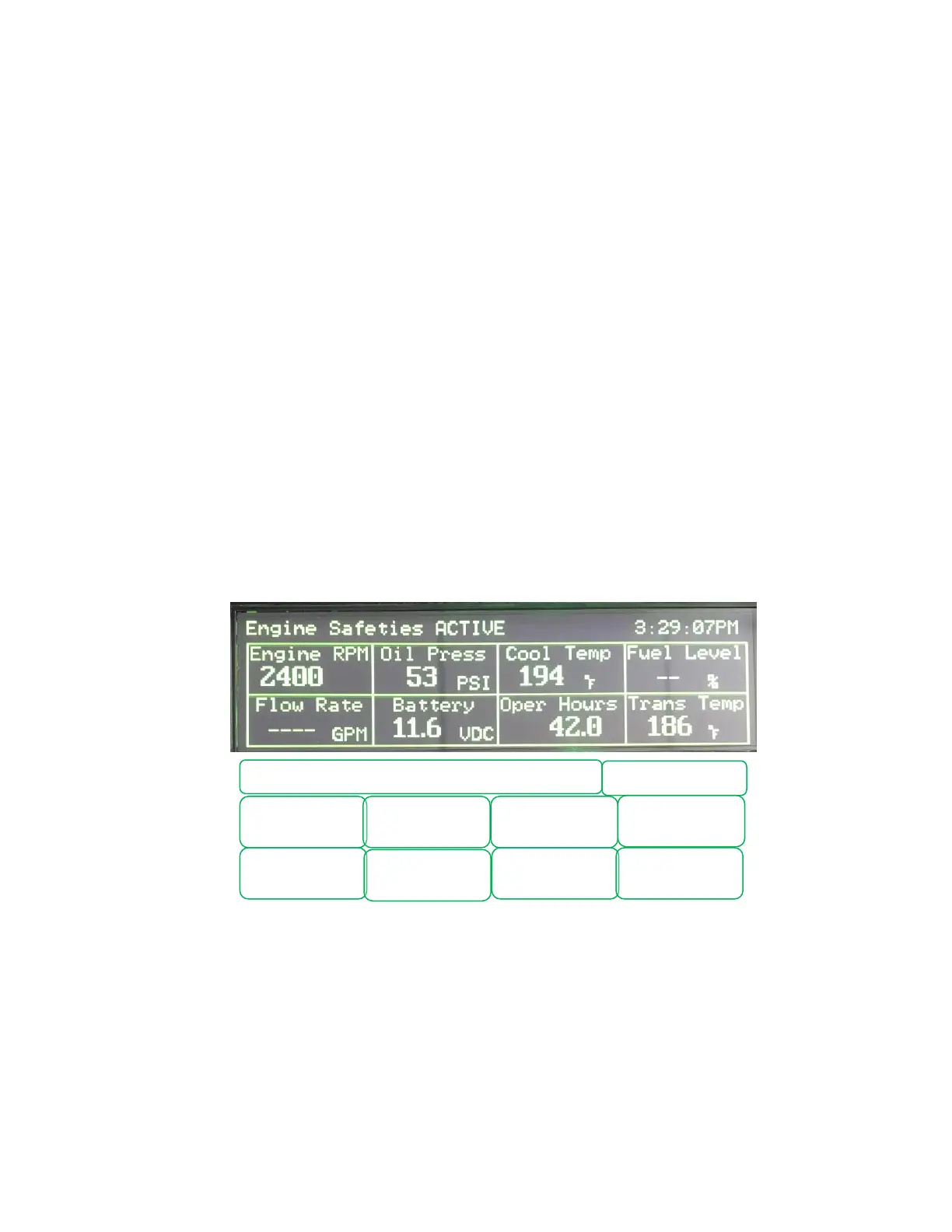

DISPLAY LAYOUT
The display is defined into 10 sections. Sections 1 through 8 are defined as the rectangles that contain
various engine and system parameters. They are numbered from the upper left as Area 1, with Area 2
directly below and continuing as shown below. Area 9 is the Status annunciation and Area 10 is the
Clock.
Area 1
Area 2
Area 3
Area 4
Area 5
Area 6
Area 7
Area 8
Area 9
Area 10
