MODULE SAFETY SHUTDOWNS AND WARNINGS
The control panel also has the ability to monitor the engine vitals if configured. The ability to set pre
alarms and alarms in the panel is supported to back up the ECUs safeties in the event the ECU
shutdowns were not enabled or a more conservative setting is desired. If the parameter falls outside
of the normal operating range, the control panel will stop the engine by removing power to the fuel
solenoid or ignition circuit. The display will indicate the reason for the shutdown and a red alarm lamp
will be illuminated in the upper left corner of the module.
Mechanical engines should use the MX module for all desired engine protection.

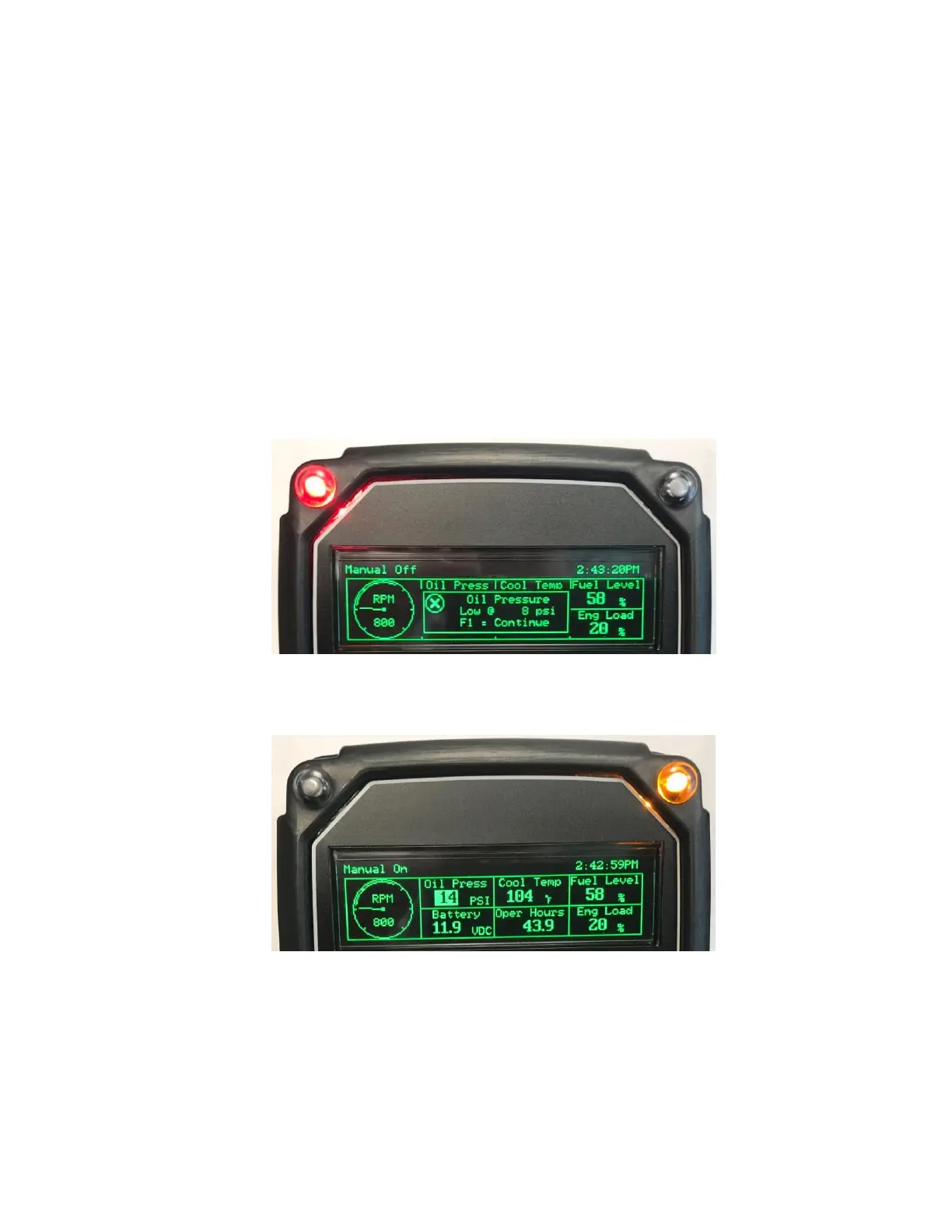

Example of Low Oil Pressure shutdown by MX Module
Example of Low Oil Pressure warning by MX Module
