FITTING GUIDE
8

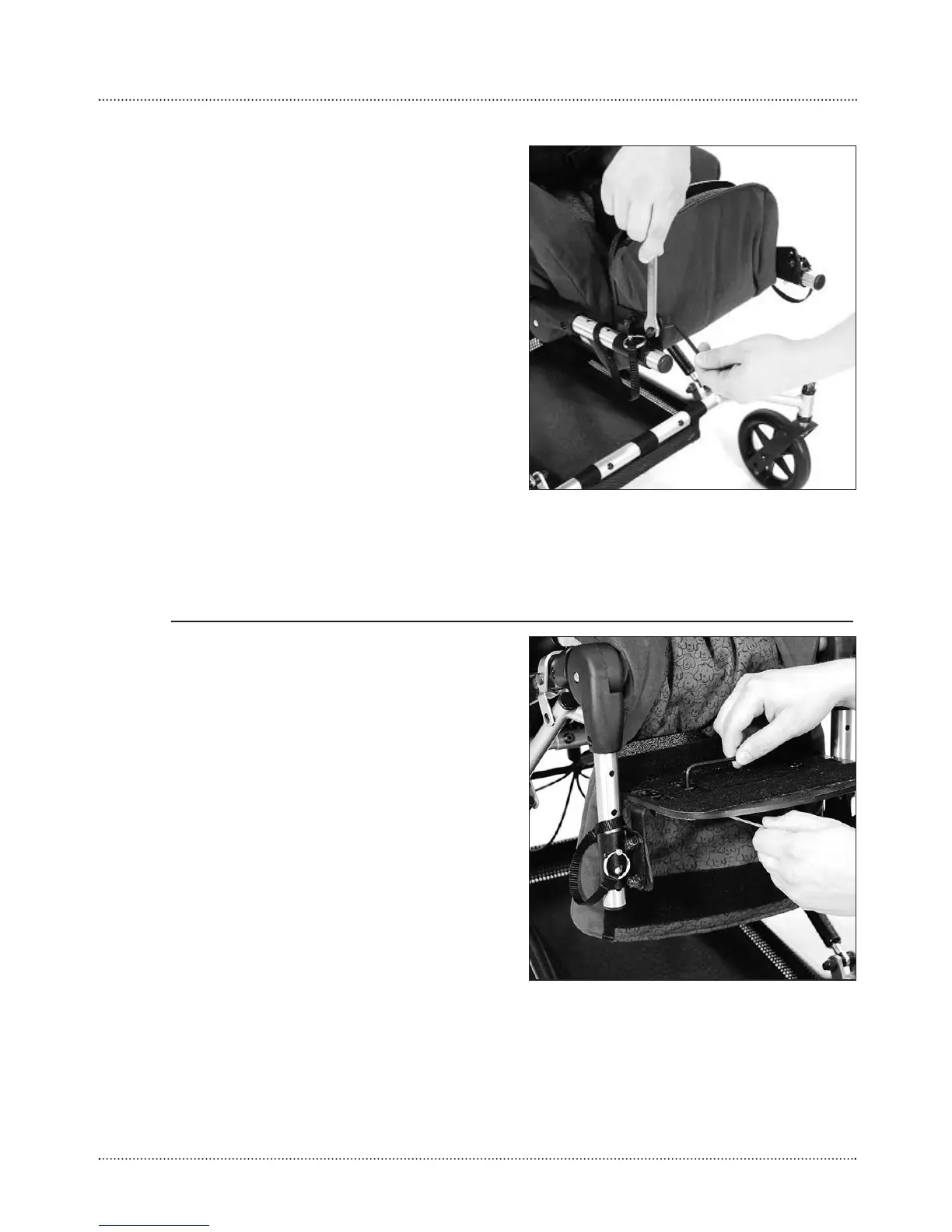

To achieve comfortable foot place-
ment, the footplate angle may be
adjusted. First loosen the four bolts on
the outer edge of the leg rest where
the footplate tubes are located. Angle
the footplate for maximum comfort
and tighten the bolts. Fig. 17c
Footplate Depth Adjustment
To adjust the depth of the footplate,
loosen the four bolts on the bottom of
the footplate and slide the footplate
into desired position, then tighten the
bolts. Fig. 18
Fig.17c
Fig.18
