CONVAID USER’S GUIDE
13

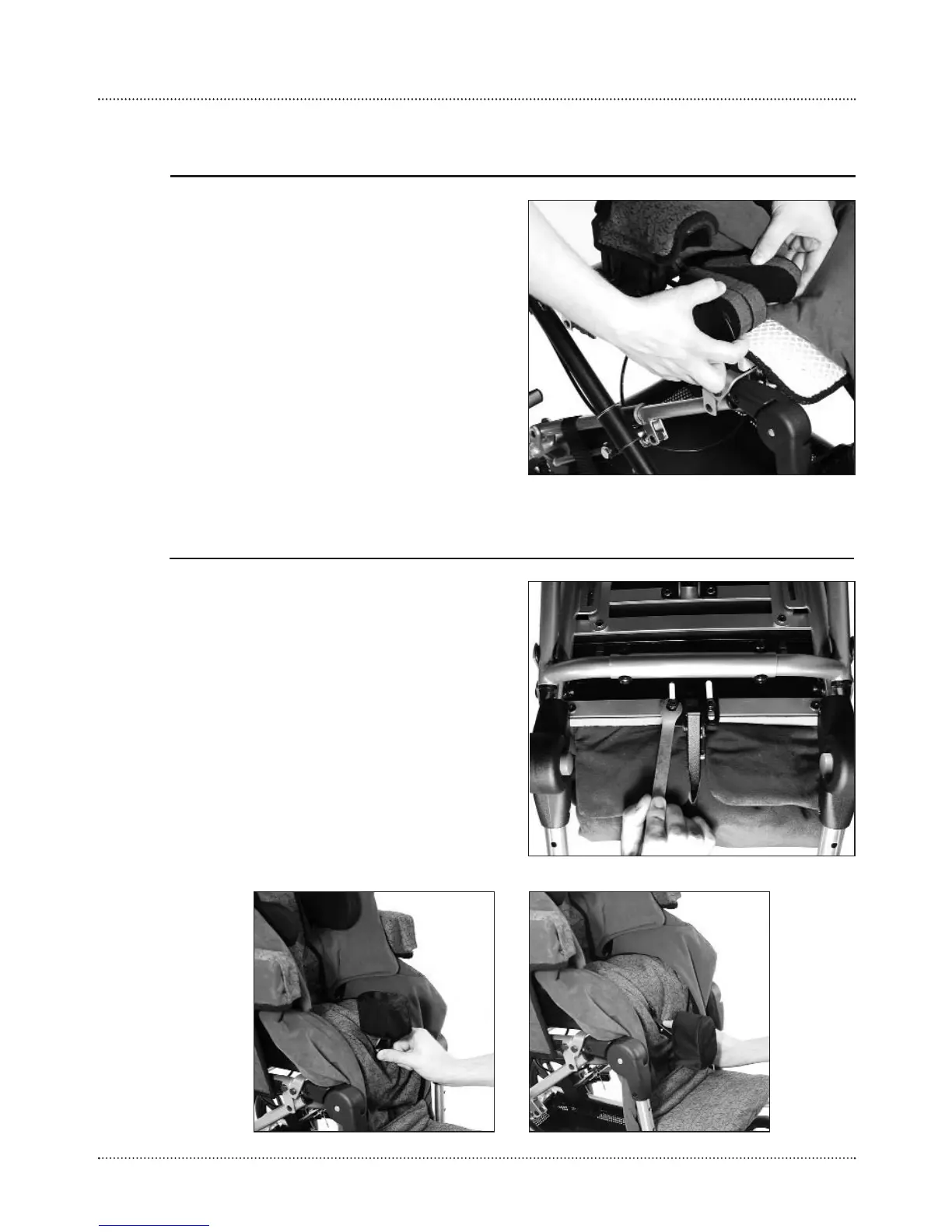

Hip Guides
Medial Thigh Support (Pommel)
Hip guides help to stabilize the pelvis.
To adjust the width: Velcro the
desired number of foam positioning
pads to each side of the seat to
achieve desired width. Fig. 34
The pommel separates the legs at the
knees for proper seating.
Depth adjustment: Use a wrench to
loosen the two nuts located under the
pommel. Slide pommel to desired posi-
tion and tighten the nuts. Fig. 35
To swing pommel up: Rotate up
until pommel snaps into place. Fig. 36
To swing pommel down: Press snap
button on the right side of the pommel
and swing pommel under the seat.
Fig. 37
Fig.34
Fig.35
Fig.36
Fig.37
