FITTING GUIDE

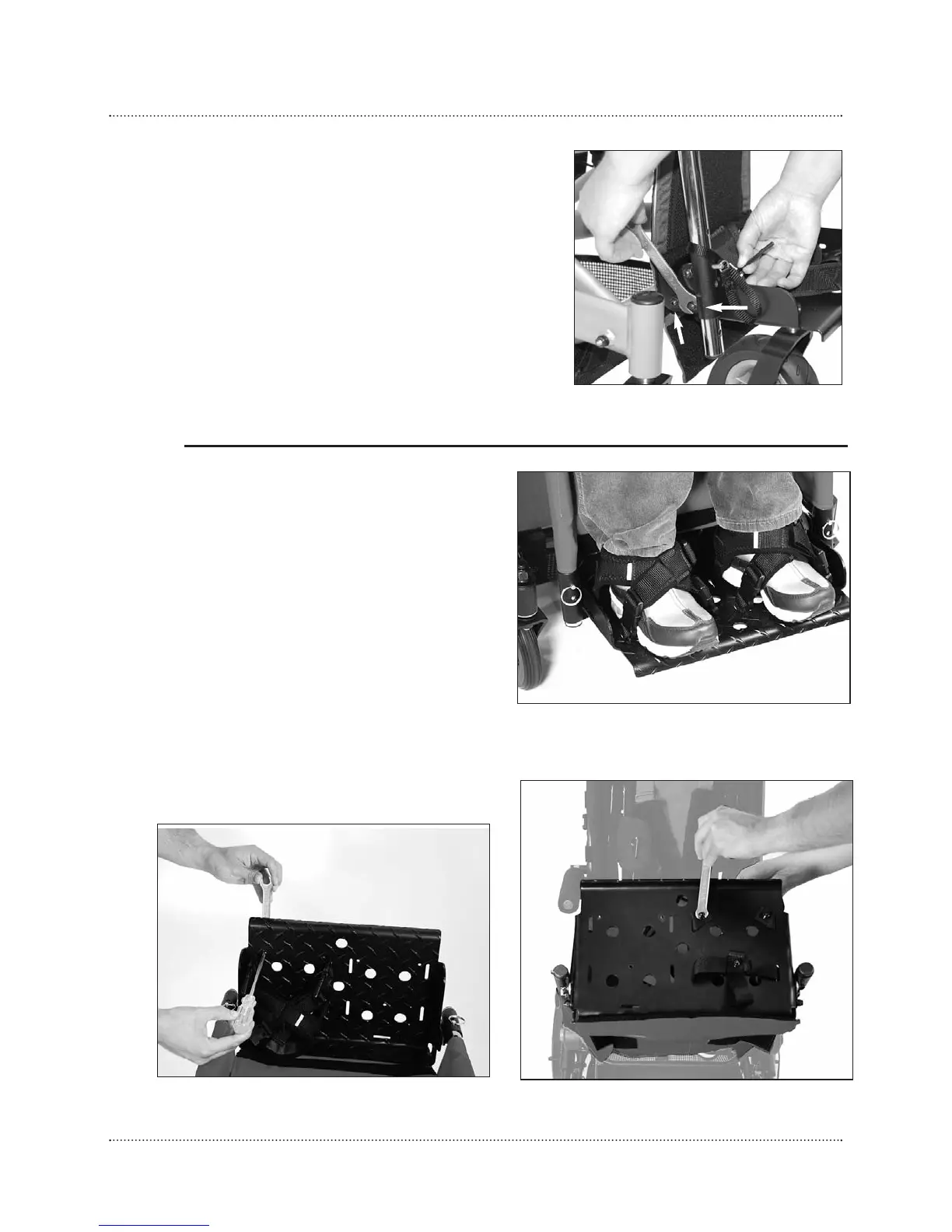

Depth Adjustment:
To adjust the depth of the footplate,
loosen the two bolts on ea ch si de of
the footpla te. Sli de the footpla te
i nto desi red posi tion, and ti ghten
the bolts. Fig. 32
Fig. 32
Fig. 35
Fig. 34
Adjustable foot posi ti oners hold
feet i n posi ti on on the footplate.
The foot posi ti oners may be
cri ss-crossed over the top of the
foot to secure the enti re foot, or
ca n be converted i nto a si m ple
ankle strap by wrappi ng the
right strap around the ankle and
fasteni ng the buckle. Fig. 33
To attach the posi ti oners, thread
the strap through footplate, and
bolt to undersi de of footplate.
Fig. 34 & 35
Fig. 33
Foot Positioners
10
