CHAPTER 3.0 | CHAMBER START-UP
The height of the levelers must now be adjusted so the unit rests on the levelers rather than
the casters. Do this as follows:
1. Start adjusting the levelers in the back wall until they are slightly higher than the casters.
2. Now adjust the ones on the side walls (see photo). They should be adjusted (unscrewed)
until the gap between the caster and the floor is at least 1/8” (3mm) and no more than
1/4” (6 mm)
3. It is important that the two front levelers are perfectly level (side to side) so the door
closes easily. An out-of-level condition on the front levelers can cause the door to bind
due to misalignment.
Hooking the unit up
Adaptis A1000 and A350 products are provided with a 10 ft power cord (3 m) with plug
and a female “quick” water supply connection (M6 or ¼” for North American market). The
connection point is at the back of the cabinet. (See figure 3.2 and 3.3a.)
Power supply
All Adaptis products are single phase and delivered to the market in two options:
Connect the unit to the power supply – verify the voltage shown on the serial plate.
Added humidity
All Adaptis products provide added humidity by using ultrasonic humidifiers in all chambers.
This system requires between 5 to 60 PSI (0.3 to 4 bar) pressure of purified supply water.

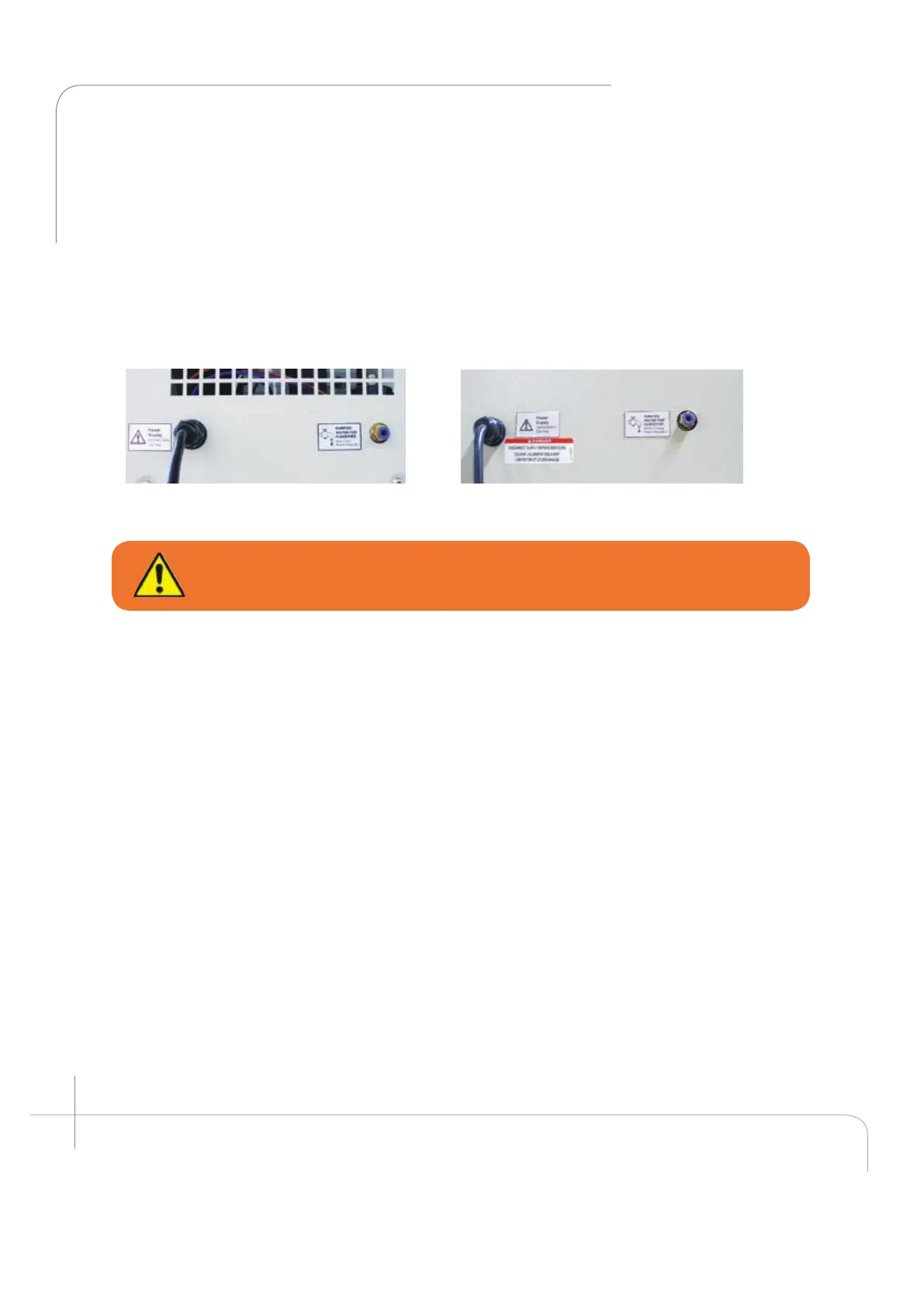

Figure 3.3a: A350 rear cabinet view.
Figure 3.2: A1000 rear cabinet view.
120VAC/60 Hz (3 wires + ground). A 20A breaker required
230VAC/50Hz (3 wires + ground). A 16A breaker required
