3.0 CHAMBER START-UP
3.1 Installation
Chamber placement
Adaptis units must be placed in ventilated areas. The ideal temperature around the
equipment is 21ºC. Although Adaptis will perform at higher ambient temperatures (see
spec), it is recommended that the product be placed in areas that have circulating air.
Note: Adaptis A1000 products will dissipate up to 2400 W to ambient. Adaptis A350
products will dissipate up to 1400 W to ambient.
Also necessary for product placement are the following:
• Powersupply
• Watersupply
• Drainconnection
If there is no a drain close to the unit a drip pan can be ordered.
Please allow for the following clearances:
• At least 1 ft (300 mm) must be left clear behind the back wall.
• At least 1 ft (300 mm) must be left clear above the unit.
• A1000: At least 2” (50 mm) must be left clear on each side of the A1000 when the PG Kit is
installed. Note – if any kit other than the PG Kit is installed, no side clearance is required.
• A350: At least 2” at each side of the unit must be left clear. Two feet (600 mm) are
required to obtain full access for service to the side panels
Leveling and locking the unit
Adaptis cabinets are delivered with four (4) levelers in order
to prevent the unit from rolling on its casters once installed,
and also to compensate for any variance in the floor level.
The levelers are 25 x 4” bolts that insert at the four corners
at the bottom of the base. The unit must be tilted or lifted
in order to thread the bolts in. (The leveling bolts may also
come already installed.) The two levelers in the front are very
important and and can affect the performance of the unit.
(See figure 3.1)

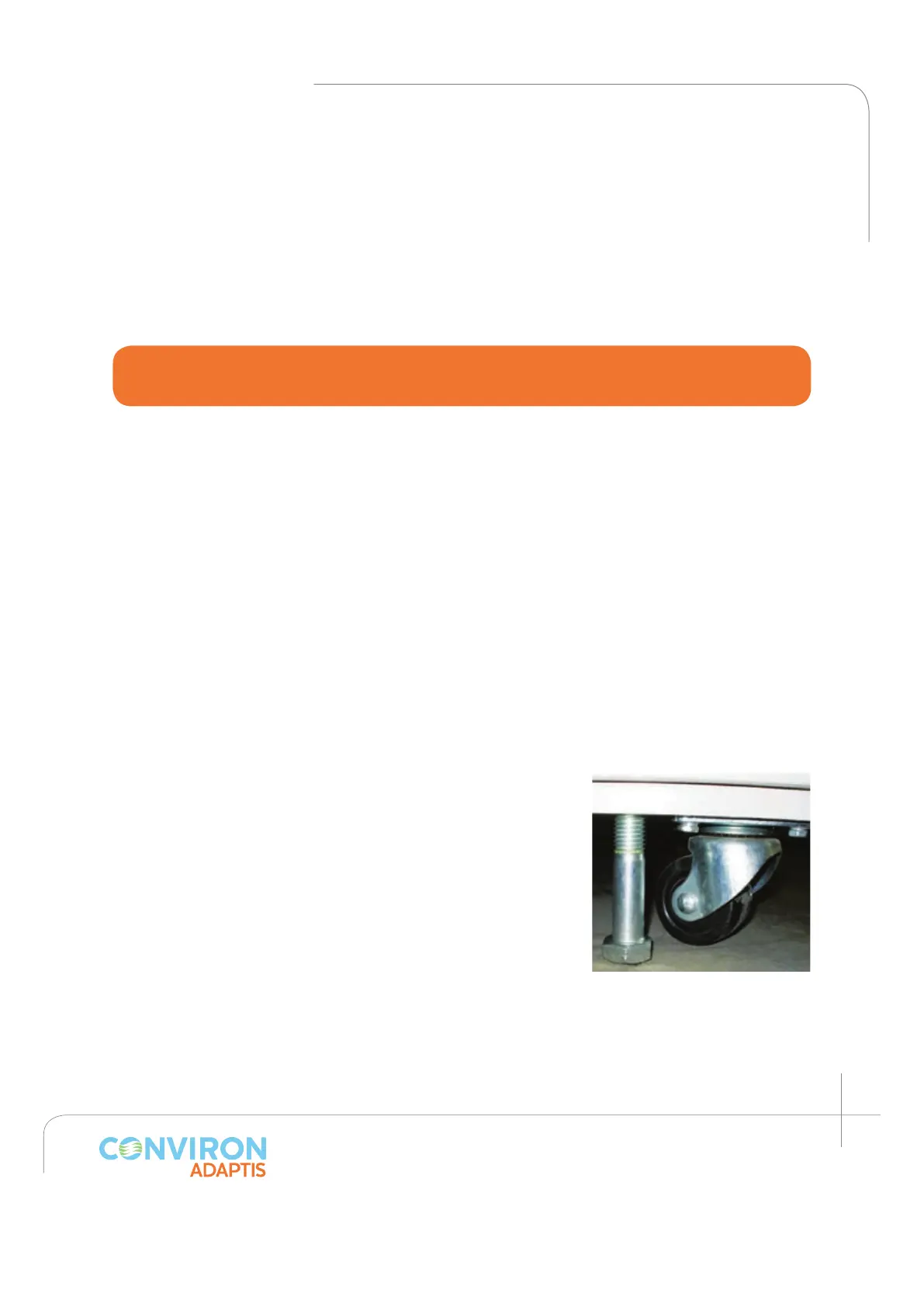

Figure 3.1: Unit raised with
level bolt.
