COOLIUS A10 - 4.1.2 Replacing the Vacuum Pump Oil

16
COOLIUS A10 / Y10
4.1.2 Replacing the vacuum pump oil
NOTE: Always use goggles and gloves!
Contact with the refrigerant can cause blindness and other physical injury to
the user!
IMPORTANT: Disconnect the plug from the power supply!
1. Remove the front cover (4x large head Phillips screws).
2. Unscrew the oil discharge screw
C
and wait for the oil to drain.
Thenretthedischargescrew
C
.
NOTE: Dispose according to local regulations.
3. Unscrewthemu󰀪er
A
.
4. Fill with new oil.
Thecorrectoillevelofthepumpisaroundhalfsightglass(llingcapacityapprox.350ml).
5. Retthemu󰀪er.
6. Reassemble the front cover.
NOTE: Thepicturecouldshowadi󰀨erenttypeofvacuum
pump.
A
 Mu󰀪er
B
Sight glass to indicate the oil level
C
Discharge screw
D
Discharge hole
A
B
C
D

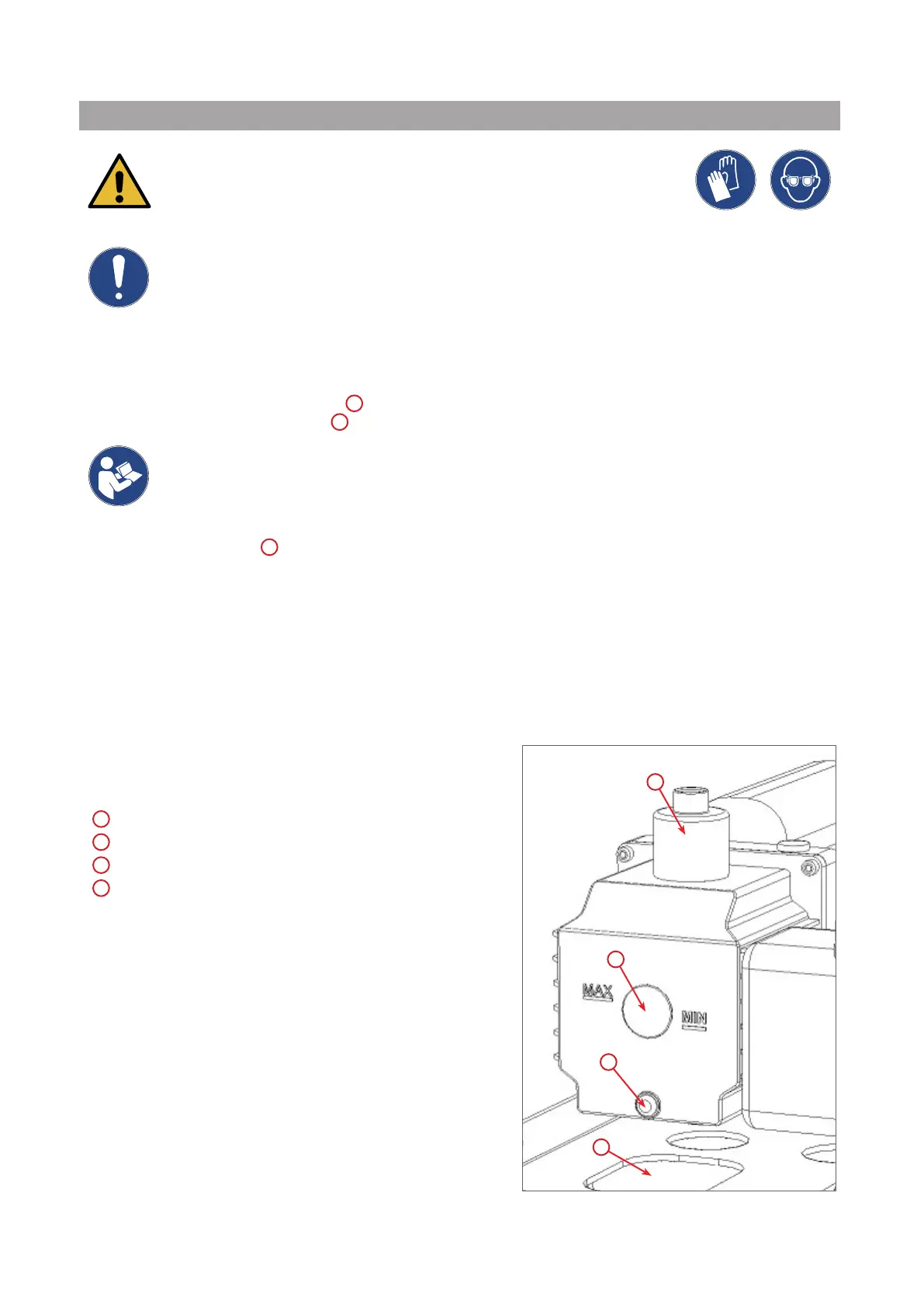

g.002 Vacuum pump
