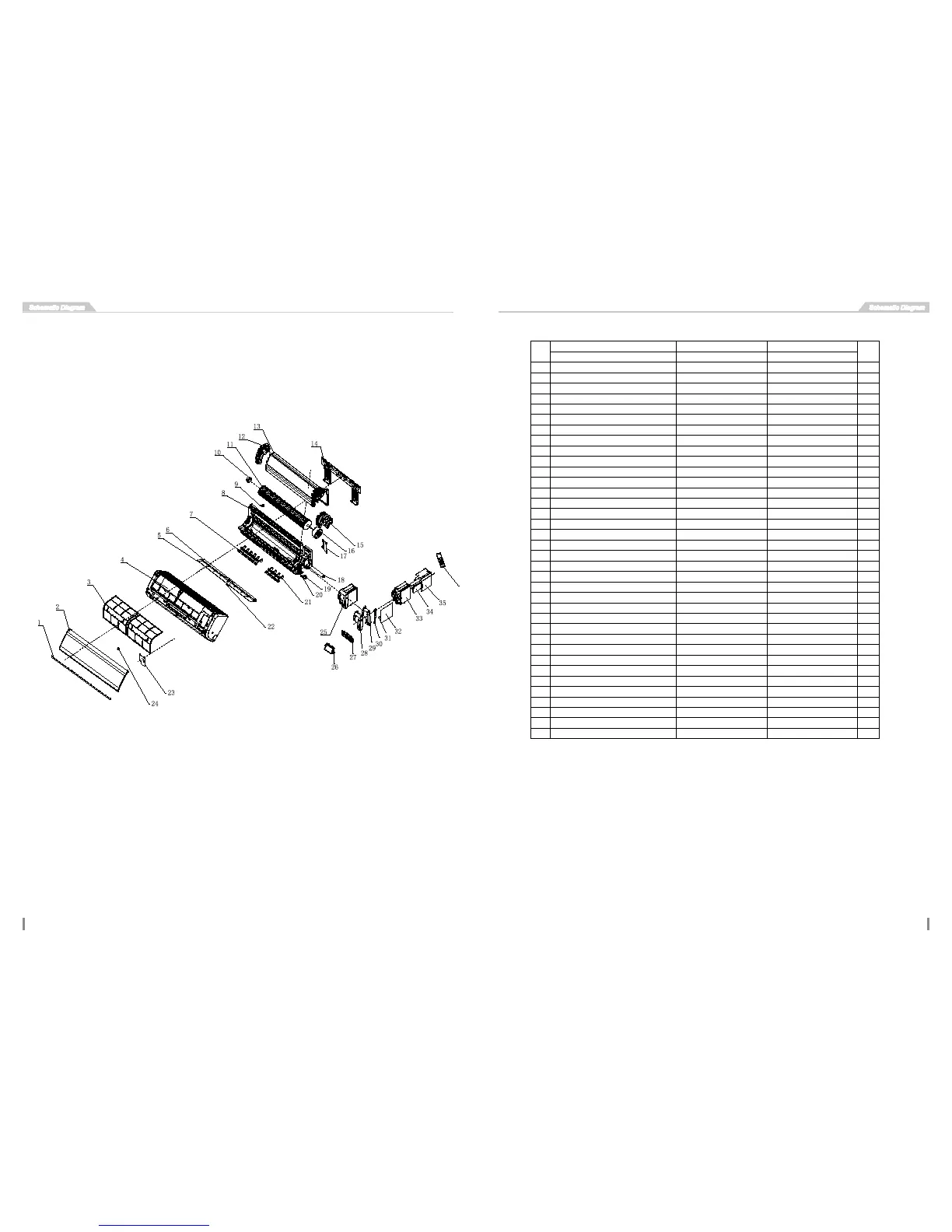

8.1 Indoor Unit
Model:
CH-S09FTXN-E2wf CH-S12FTXN-E2wf
8. Exploded Views and Parts List
NO.
Description
CH-S09FTXN-E2wf CH-S12FTXN-E2wf
QTY
product code SCB001N0011 SCB001N0021
1 decorate strip S21200001P S21200001P 1
2 panel S24600000004 S24600000004 1
3 filter subassembly S15420001 S15420001 2
4 panel S20000005 S20000005 1
5 left axile bush S15210003 S15210003 1
6 air louver S15200001 S15200001 1
7 swing louver S15200003 S15200003 1
8 chassis subassembly S21400001 S21400001 1
9 water pan rubber S62600001 S62600001 1
10 bearing rubber ring subassembly S62400001 S62400001 1
11 cross-flow fan S15020002 S15020002 1
12 evaporator angular carriage S21800002 S21800002 1
13 evaporator assembly S20210001 S20210001 1
14 wall frame S10620001 S10620001 1
15 fan motor clamp board S22020002 S22020002 1
16 fan motor S16800001 S16800001 1
17 fan motor clamp board S22020001 S22020001 1
18 drain pipe S1301000101 S1301000101 1
19 step motor S17000001 S17000001 1
20 crank S61200002 S61200002 1
21 swing louver S15200004 S15200004 1
22 axile bush S15210002 S15210002 1
23 electrical box cover 2 subassembly S21420003 S21420003 1
24 screw cap S21830001 S21830001 1
25 electrical box assembly S39901005 S39901006 1
26 WiFi module Y3500000101 Y3500000101 1
27 display board S304100002 S304100002 1
28 electrical box cover shielding cover S11020004 S11020004 1
29 electrical box cover S21420001 S21420001 1
30 tempreature sensor S3300000101 S3300000101 1
31 jumper wire cap S3361000112 S3361000110 1
32 main board S300500044 S300500044 1
33 electrical box S20410001 S20410001 1
34 electrical box shielding cover 2 S11020003 S11020003 1
35 electrical box shielding cover 1 S11020002 S11020002 1
36 remote controller S30400001K004 S30400001K004 1
36
