Note
Be sure to wait for a minimum of 10 minutes after turning off all power supplies before disassembly.

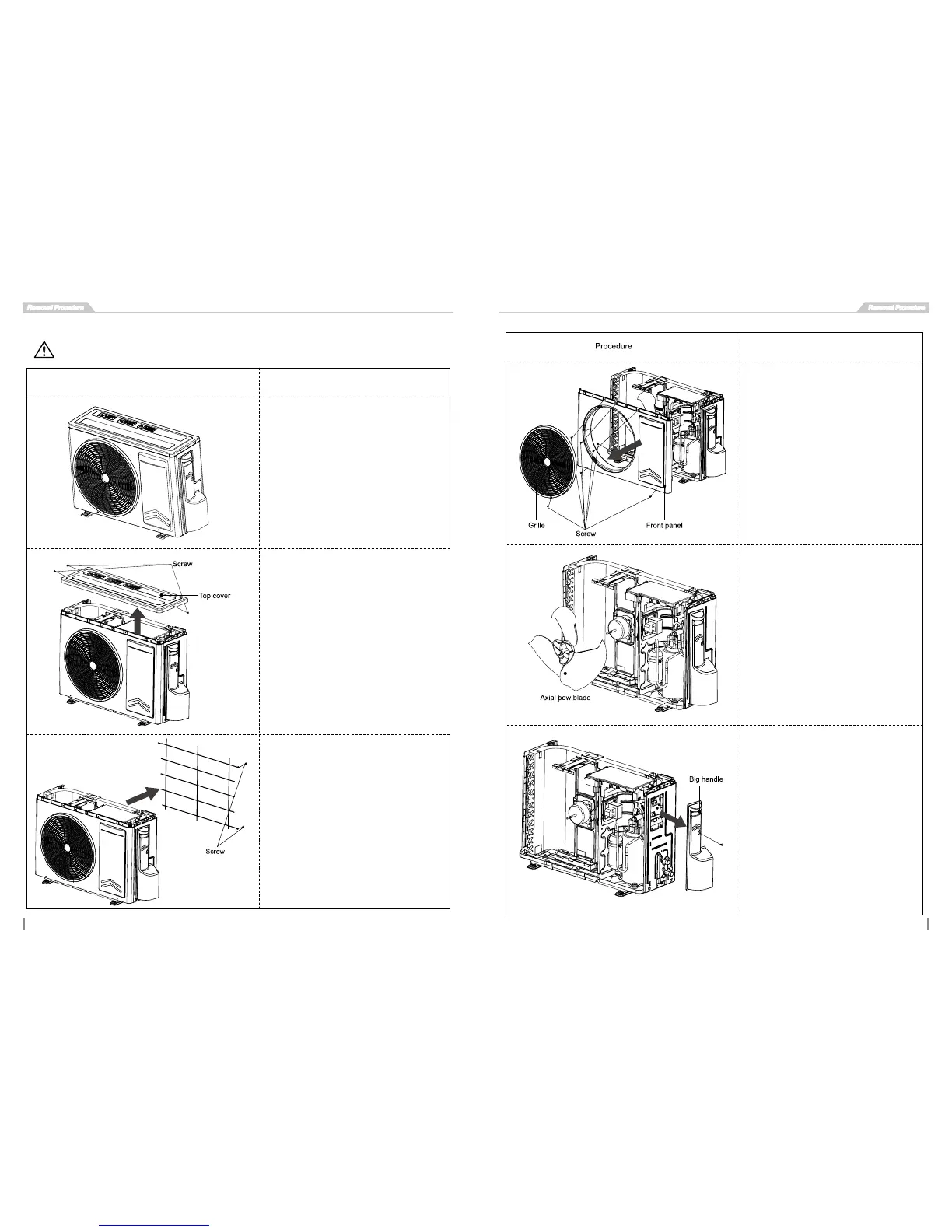

10.2 Removal Procedure of Outdoor Unit
Warning
1.Before disassembly
2. Remove top cover
Remove connection screws connecting the top cover
plate with the front panel and the right side plate, and
then remove the toppanel.
3. Remove protective grille
Remove the screws fixing protective grille and then
remove the protective grille.
Procedure
4.Remove axial flow blad
Remove the nut fixing the blade and then
remove the axial flow blade.
5.Remove big handle
Remove the connection screw fixing the big handle
and then remove the handle.
4.Remove grille and panel
A: Remove connection screws between the front
grille and the front panel. Then remove the front
grille.
B: Remove connection screws connecting
the front panel with the chassis and the motor
support, and then remove the front panel.
Note
To Next Page
