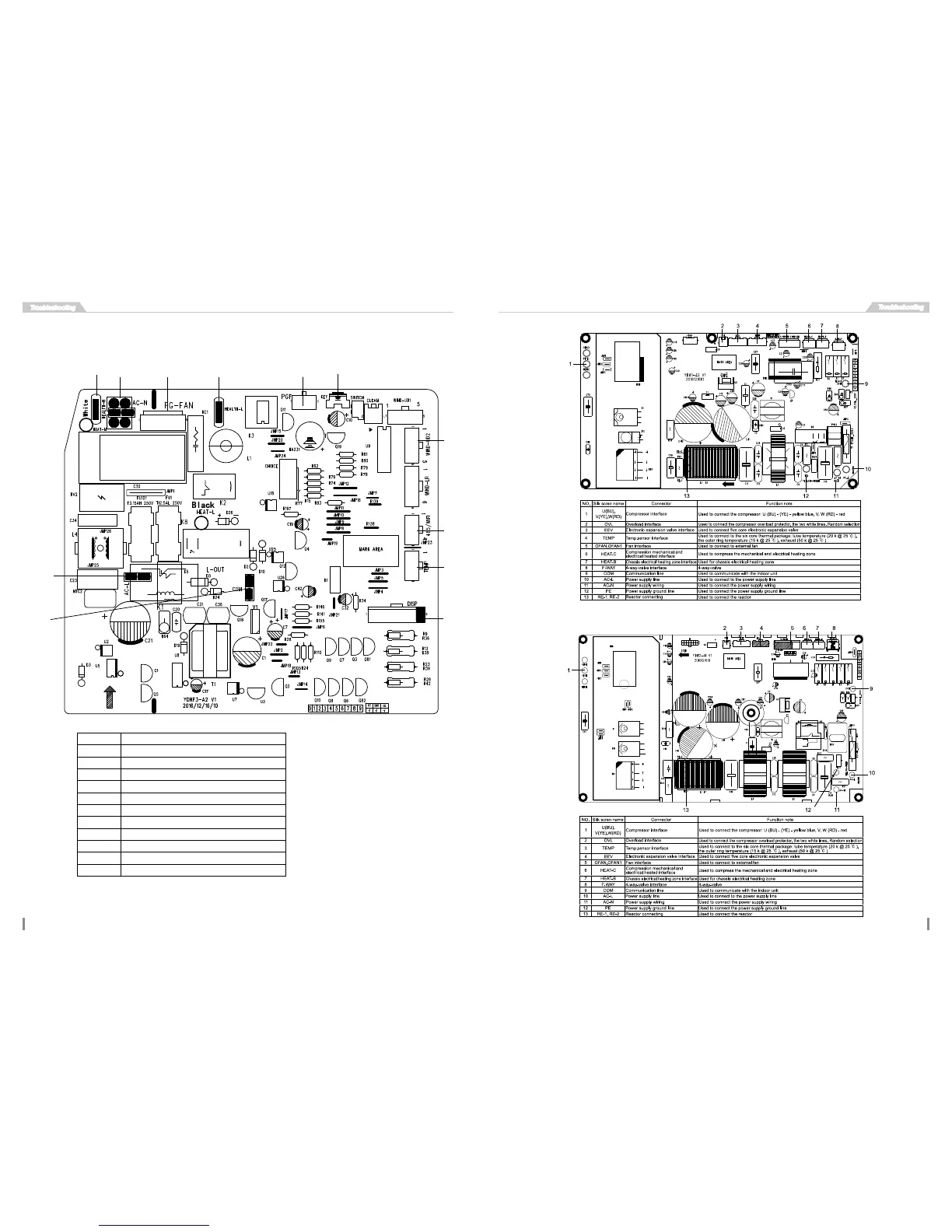

9.2 PCB Printed Diagram
● Indoor Unit
● Outdoor Unit
9K/12K
18K/24K
2
3
4
5
6
7
8
9
10
12
11
1 Cold pasma zero wire connector
2 Power supply zero wire connector
3 PG fan contral connector
4 Cold pasma fire wire connector
5 PG fan feedback connector
6 Auto key
7 Vertical swing connector
8 WiFi connector
9 Temp. sensor connector
10 Display connector
11 Communication connector
12 Power supply fire wire connector
