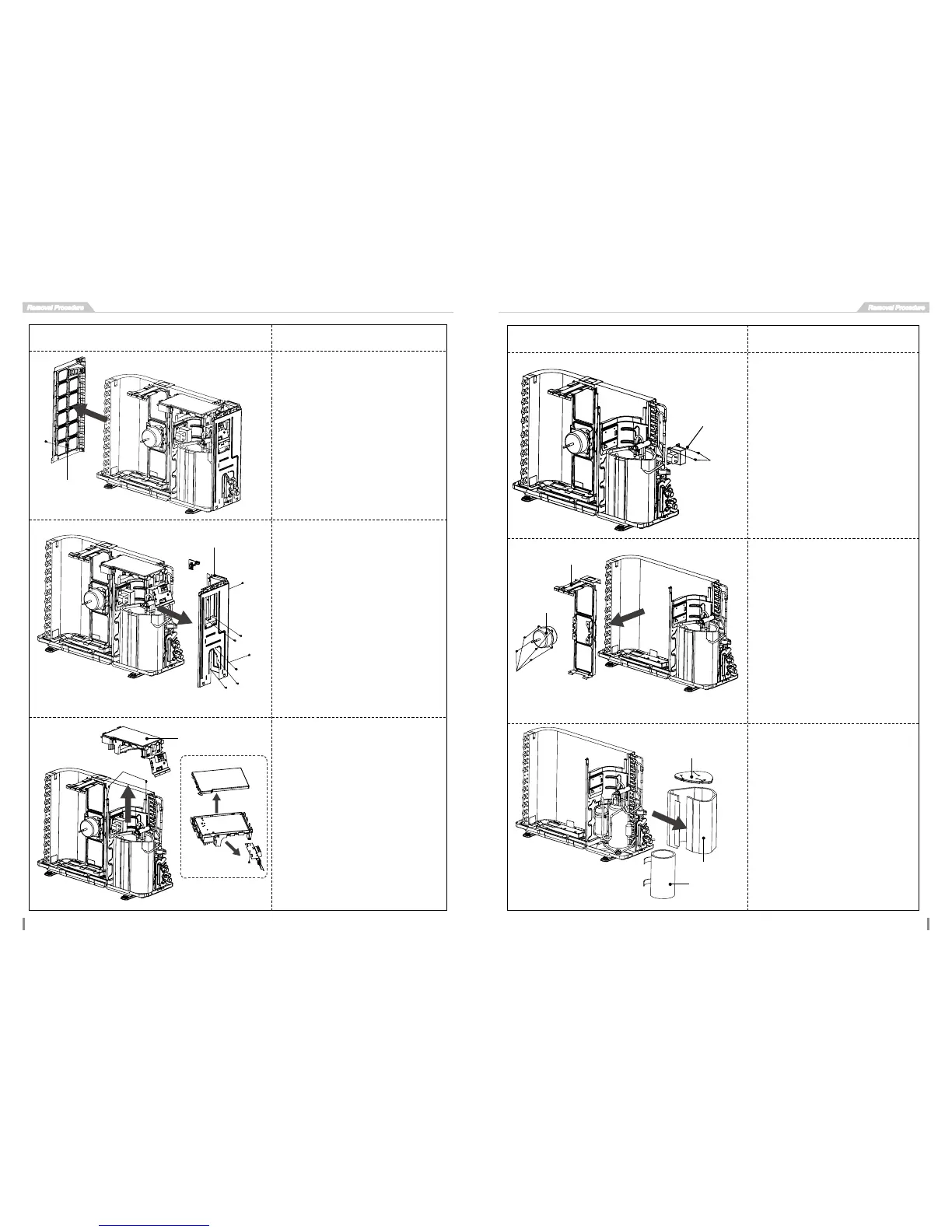

6. Remove left side plate
Remove connection screws connecting the
left side plate with the condenser assy. Then
remove the left side plate.
7. Remove right side plate
Remove connection screws connecting the right
side plate with the valve support and the electric
box. Then remove the right side plate.
8. Remove electric box assy
Remove screws fixing the electric box assy;
loosen the wire bundle and unplug the wiring
terminals. Then lift the electric box to remove it.
Right side plate
Electric box assy
Screw
Left side plate
NoteProcedure
10. Remove motor and motor support
Remove tapping screws fixing the motor
anddisconnect the leading wire insert of the
motor. Then remove the motor. Remove
tapping screws fixing the motor andlift the
motor support to remove it.
Motor support
Motor
11. Remove acoustic cotton
Split the acoustic cotton lock,and take out 3
pcs slowly.
NOTE: Do not damage the pipe.
Acoustic cotton 1
Acoustic cotton 2
Acoustic cotton 3
9. Remove Reactor
Reactor
Take off the fixed scre ,and you could take off
the reactor.
Screw
Screw
NoteProcedure
To Next Page
