Procedure

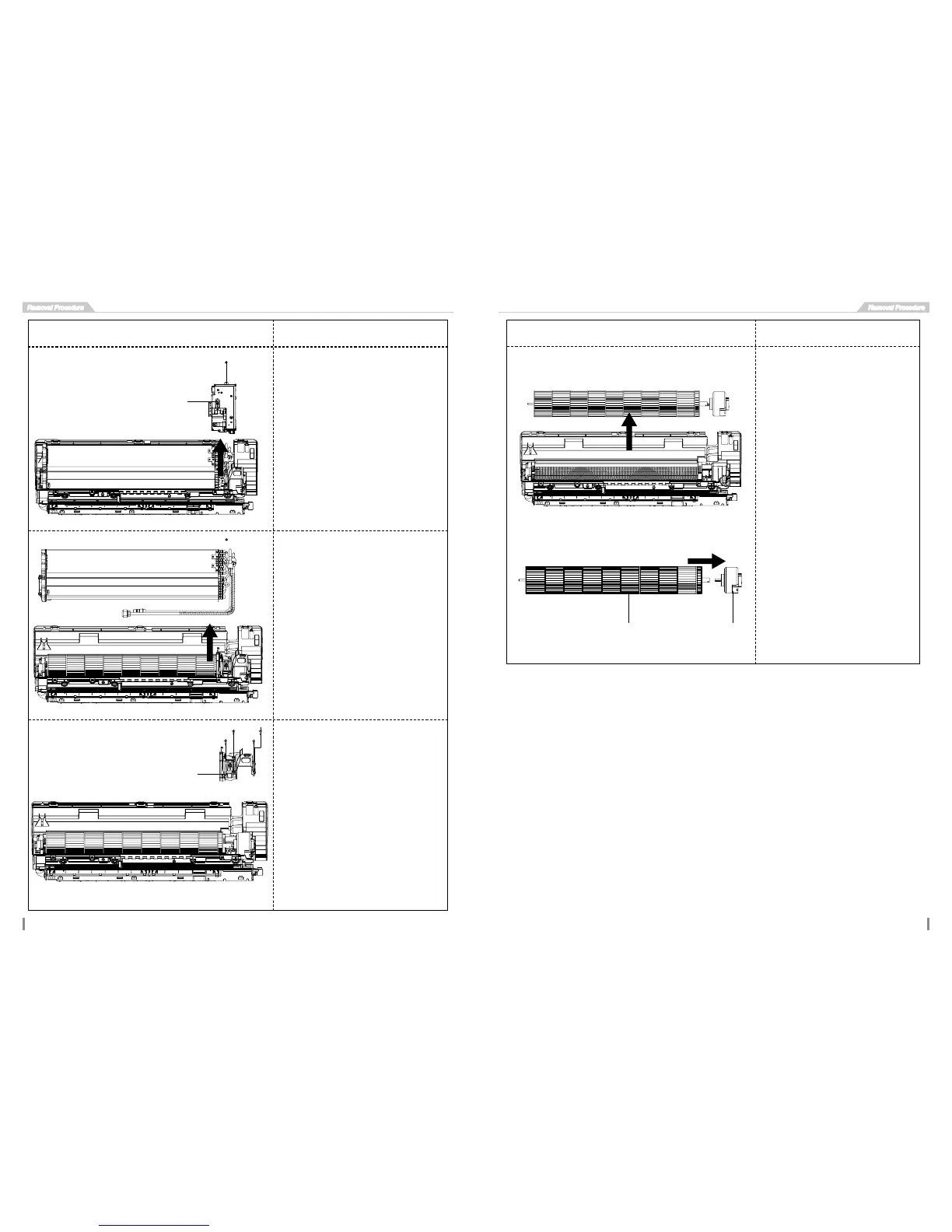

8. Remove electric box
9. Remove evaporator
10. Remove motor press plate
A: Disconnect the indoor tube temperature
sensor.
B: Remove the screws at the joint of the
earthing wire and evaporator.
C: Loosen the clasp at the joint of the electric
box.
A: Remove the screws at the joint of the
evaporator and rear case.
B: Adjust slightly the pipe on the evaporator to
separate the pipe with the evaporator.
C: Remove the evaporator to separate the
evaporator with rear case assy.
Motor press plate
Remove the screw of the motor press plateand
then remove the press plate.
Electric box
Note
11. Remove motor and cross flow blad
A: Remove the cross flow blade and moto .
B: Remove the screws at the joint of the cross
flowblade and the moto .
Take down the motor.
Cross flow blad Motor
NoteProcedure
