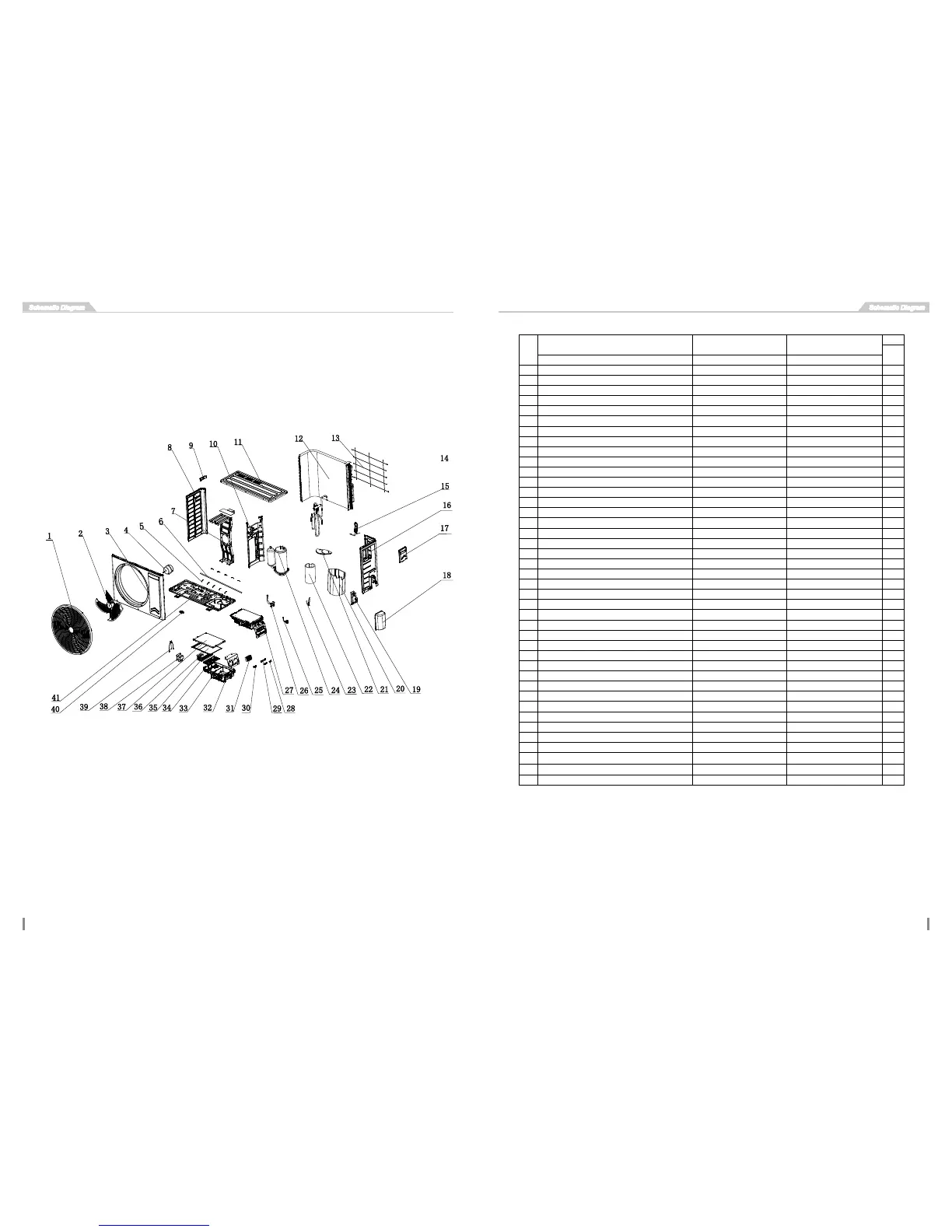

Model: CH-S18FTXN-E2wf
CH-S24FTXN-E2wf
NO.
Description
CH-S18FTXN-E2wf
CH-S24FTXN-E2wf
QTY
product code
SCB001W0051_A0020 SCB001W0061_A0020
1 grill（apricot grey) S21600002 S21600002 1
2 axial flow fan（original color） S15010003 S15010003
1
3 front panel（apricot grey） S11010002P S11010002P 1
4
ODU fan motor S16800009 S16800009 1
5 Electric heating tablet S11410001 S11410001 1
6 electrical heating(chassis) S3080000101 S3080000101 10
7 motor support subassembly S1120000404 S1120000404 1
8 left side panel（apricot grey） S10600003P S10600003P 1
9 small handle S22210003 S22210003 1
10 Partition board subassembly S10440014 S10440014 1
11 top cover（apricot grey） S10450002P S10450002P 1
12 condenser assembly S10300010 S10300011 1
13 mesh enclosure(lron mesh) S10860004 S10860004 1
14 4-way-valve assembly S12050004 S12050004 1
15 capillary subassembly S12000006 S12000007 1
16 4-way-valve coil S3380000209 S3380000209 1
17 right side panel（apricot grey） S10600004P S10600004P 1
18 big handle（apricot grey） S22210002 S22210002 1
19 valve cover S21420007 S21420007 1
20 valve support subassembly（apricot grey） S11200002P S1120000201P 1
21 noise-absorption sponge（outside） S61410003 S61410003 1
22 noise-absorption sponge（inside） S61410009 S61410009 1
23 wiring（compressor） S3320000501 S3320000501 1
24
compressor and accessory S10000008 S10000008 1
25 stop valve 1/4 S1420000103 S1420000103 1
26 stop valve 1/2 S1420000203 S1420001603 1
27 electric box assembly S11800015 S11800015 1
28 wire fix clamp S61000002 S61000005 1
29 insulation gasket S60600004 S60600004 1
30 wire fix clamp S61000004 S61000004 1
31 wiring board（5 unit） S3360000401 S3360000401 1
32 wiring board support S10820004 S10820004 1
33 electric box S20400006 S20400006 1
34 module support S22240001 S22240001 1
35 radiator S34810003 S34810003 1
36
main board S300100008 S300100008 1
37 electric box cover S20400007 S20400007 1
38 reactor S34020002 S34020002 1
39
temp. sensor S3300000203 S3300000203 1
40 drain joint S13210001 S13210001 1
41 chassis subassembly S10400012P S10400012P 1
