Electrical Operation
The Type NOVA recloser utilizes an interface circuit located
in the mechanism housing. The electronic interface circuit
controls the opening and closing signals to the magnetic
actuator. Both control-powered and auxiliary-powered
interface options are available. Refer to Figures 26 and 27
for wiring diagrams.
OPEN/CLOSE Contact Position
Indicator
The OPEN/CLOSE contact position indicator consists of a
red CLOSED and a green OPEN indicator located on the
bottom of the mechanism housing (Figure 14).
Hotstick Operation (Manual Open,
Electrical Close
The recloser may be opened manually by using a hotstick
to pull down the yellow manual OPEN handle, located on
the front of the recloser (Figure 14). To close the recloser
after a manual opening, first, push the yellow manual open
handle up. Then, using the microprocessor control, close
the recloser.
WARNING: This equipment is not intended to
protect human life. Follow all locally approved proce-
dures and safety practices when installing or operating this
equipment. Failure to comply can result in death, severe
personal injury, and equipment damage. G102.1
IMPORTANT: If the yellow manual OPEN handle
remains in the down position, the recloser cannot be
closed electrically.
WARNING: Hazardous voltage. Do not rely on
the open position of the yellow operating handle
or the contact position indicator; it does not ensure that
the line has been de-energized. Always establish a vis-
ible disconnect. Failure to follow proper safety practices
can result in contact with high voltage, which will cause
death or severe personal injury. G114.1
OPERATION
WARNING: Hazardous voltage. Always use a hot-
stick when working with this equipment. Failure to
do so could result in contact with high voltage, which will
cause death or severe personal injury. G108.1

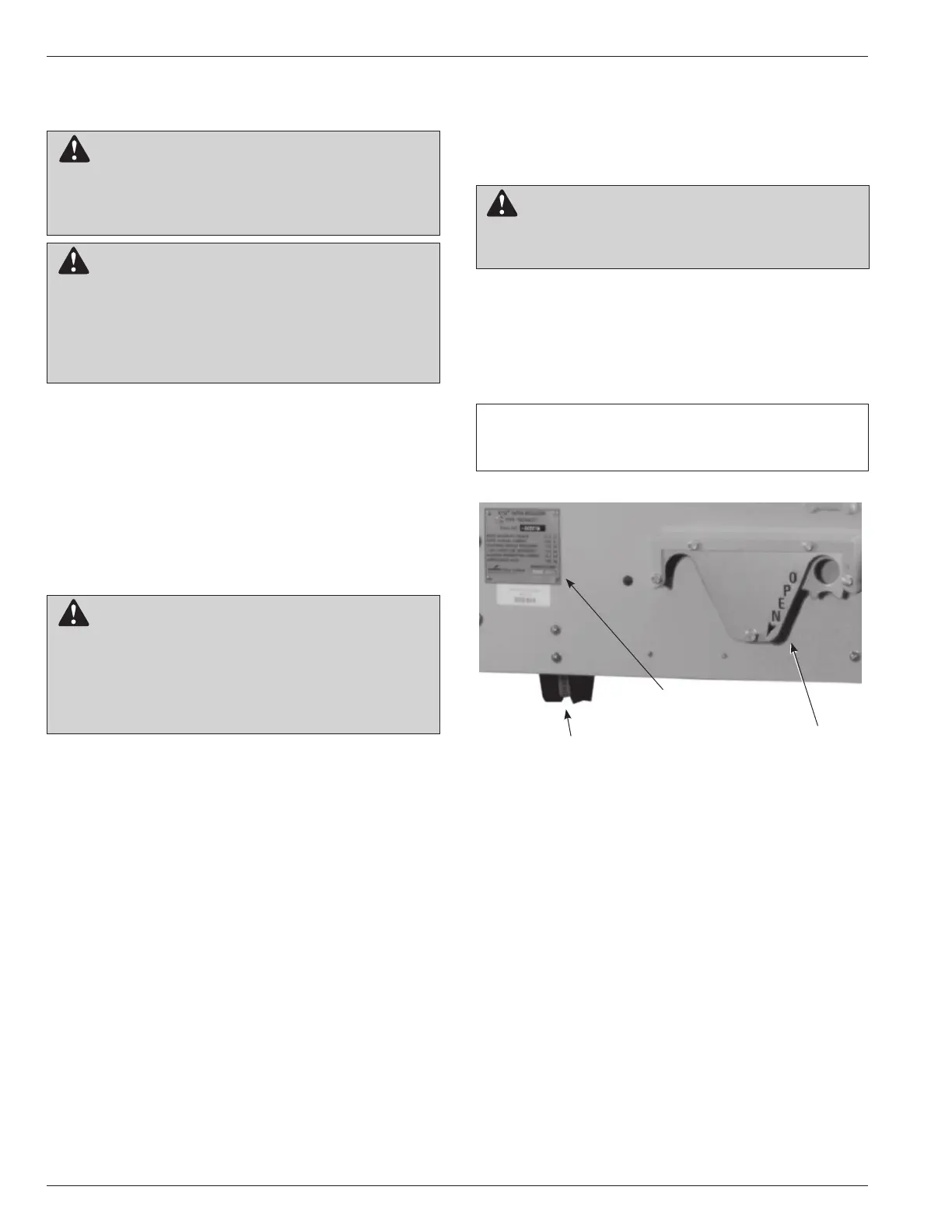

Figure 14.
Type NOVA recloser OPEN/CLOSE contact position
indicator, data plate, and manual OPEN handle.
Manual
OPEN Handle
Data Plate
OPEN/CLOSE Contact
Position Indicator
WARNING: Hazardous voltage. Never rely on
the open position of the operating handle or the
contact position indicator; it does not ensure that the
line is de-energized. Follow all locally approved safety
practices. Failure to comply can result in contact with
high voltage, which will cause death or severe personal
injury. G123.1
