Cooper Power Systems NOVA 15 - Pole-Mounting Hanger

Type NOVA Three-Phase, Microprocessor-Controlled Recloser Installation and Operation Instructions
20
Pole-Mounting Hanger
A pole-mounting hanger (Figure 22), which bolts directly
to the recloser frame, is available for pole-mounting instal-
lation.
779
(30.75)
Pole
686 mm
(27 in)
Pole
637
(25.0)
592 Min.
(23.25)
Mounting
Holes
for
0.75 Bolts
B
290
(11.5)
A
1089
(43.0)
O
P
E
N
Pole

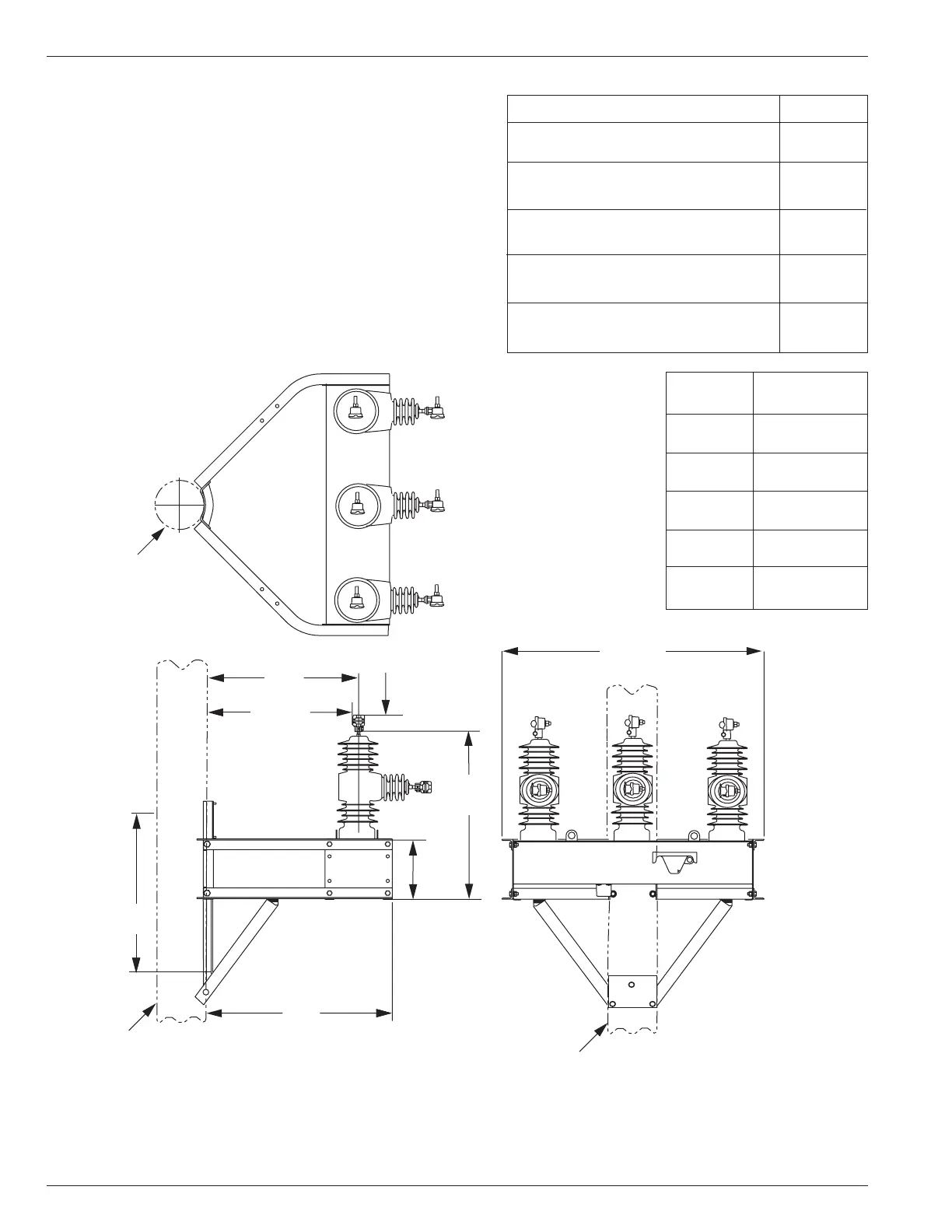

Figure 22.
Dimensions of Type NOVA recloser with pole-mounting hanger accessory.
Note: All dimensions are mm (inches). Dimensions
shown are approximate.
Dimension B
NOVA 15 791
110 kV BIL (31.25)
NOVA 15 847
125 kV BIL (33.25)
NOVA 27 847
125 kV BIL (33.25)
NOVA 27 946
150 kV BIL (37.25)
NOVA 38 946
170 kV BIL (37.25)
Terminal Options A
Eyebolt, 1/0 - 500 mcm 80 (3.25)
Cable Range (630 A maximum)
Eyebolt, 4/0 - 1000 mcm 108 (4.25)
Cable Range (800 A maximum)
Flat Pad, 2-hole 114 (4.5)
(630 A maximum)
Flat Pad, 4-hole 121 (4.75)
(800 A maximum)
Stud Type, 1.125 - 12 threads 82 (3.25)
(800 A maximum)
