Cooper Power Systems NOVA 15 - Substation-Mounting Frame

Substation-Mounting Frame
A substation-mounting frame accessory (Figure 24) is
available for substation-mounting applications.
Type NOVA Three-Phase, Microprocessor-Controlled Recloser Installation and Operation Instructions
22
B C
NOVA 15 791 508
110 kV BIL (31.25) (20)
NOVA 15 847 564
125 kV BIL (33.25) (22.25)
NOVA 27 847 564
125 kV BIL (33.25) (22.25)
NOVA 27 946 663
150 kV BIL (37.25) (26.0)
NOVA 38 946 663
170 kV BIL (37.25) (26.0)
Terminal Options A
Eyebolt, 1/0 - 500 mcm 80 (3.25)
Cable Range (630 A maximum)
Eyebolt, 4/0 - 1000 mcm 108 (4.25)
Cable Range (800 A maximum)
Flat Pad, 2-hole 114 (4.5)
(630 A maximum)
Flat Pad, 4-hole 121 (4.75)
(800 A maximum)
Stud Type, 1.125 - 12 threads 82 (3.25)
(800 A maximum)
2216
(87.25)
adjustable to
2826
(111.25)
in
76 (3)
increments
1060
(41.75)
965
(38)
457
(18)
552
(21.75)
19 (0.75)
Mounting Hole (4)
B
O
P
E
N
C
870
(34.25)
A

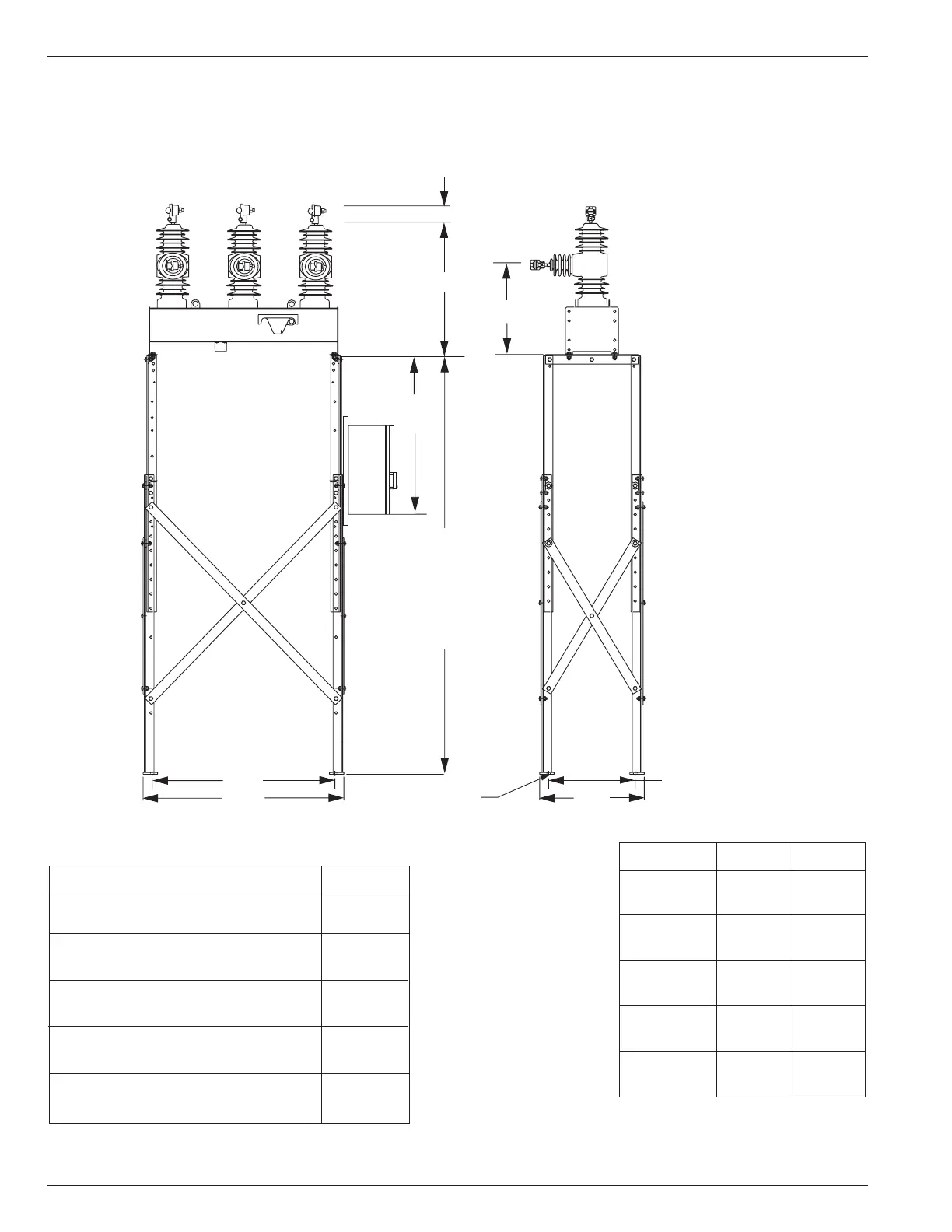

Figure 24.
Dimensions of Type NOVA recloser with substation-mounting frame accessory.
Note: All dimensions are mm (inches).
Dimensions shown are approximate.
