DIMENSIONS

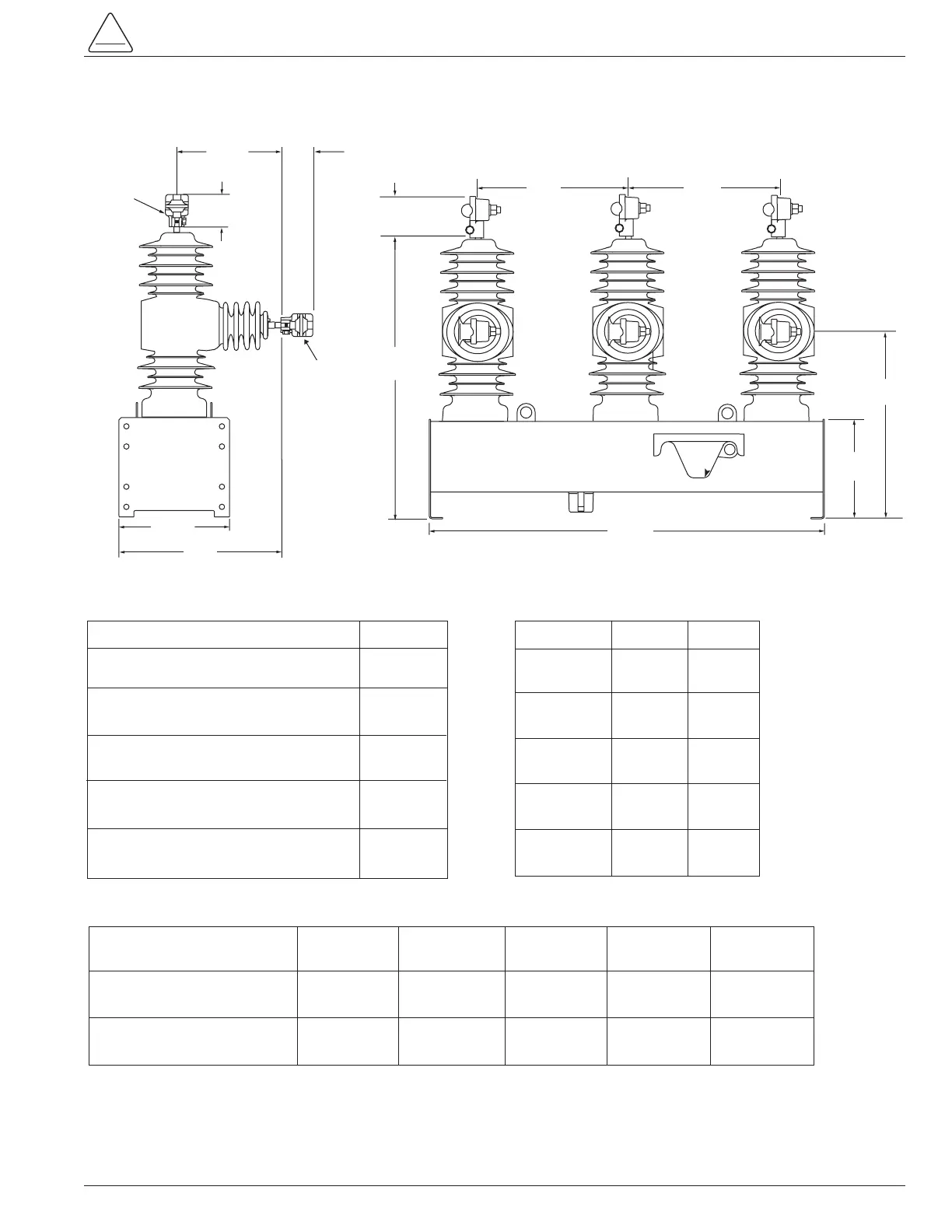

Figure 2.
Type NOVA recloser dimensions, NOVA 27 shown.
Description 15 kV 15 kV 27 kV 27 kV 38 kV
110 kV BIL 125 kV BIL 125 kV BIL 150 kV BIL 170 kV BIL
Terminal to terminal 1030 1030 1030 1030 1030
(40.5) (40.5) (40.5) (40.5) (40.5)
Lower terminal to ground/earth 673 772 772 950 950
(26.5) (30.5) (30.5) (37.5) (37.5)
Creepage Distances
B C
NOVA 15 791 508
110 kV BIL (31.25) (20)
NOVA 15 847 564
125 kV BIL (33.25) (22.25)
NOVA 27 847 564
125 kV BIL (33.25) (22.25)
NOVA 27 946 663
150 kV BIL (37.25) (26.0)
NOVA 38 946 663
170 kV BIL (37.25) (26.0)
Terminal Options A
Eyebolt, 1/0 - 500 mcm 80 (3.25)
Cable Range (630 A maximum)
Eyebolt, 4/0 - 1000 mcm 108 (4.25)
Cable Range (800 A maximum)
Flat Pad, 2-hole 114 (4.5)
(630 A maximum)
Flat Pad, 4-hole 121 (4.75)
(800 A maximum)
Stud Type, 1.125 - 12 threads 82 (3.25)
(800 A maximum)
285
(11.25)
Terminal
Connectors
1/0 - 500 MCM
(Standard)
Terminal
Connectors
1/0 - 500 MCM
(Standard)
A
271
(10.75)
1000
(39.50)
285
(11.25)
O
P
E
N
B
C
388
(15.5)
388
(15.5)
A
A
413
(16.25)
C
L
O
S
E
D
NOTE: All dimensions are mm (inches). Dimensions shown are approximate.
