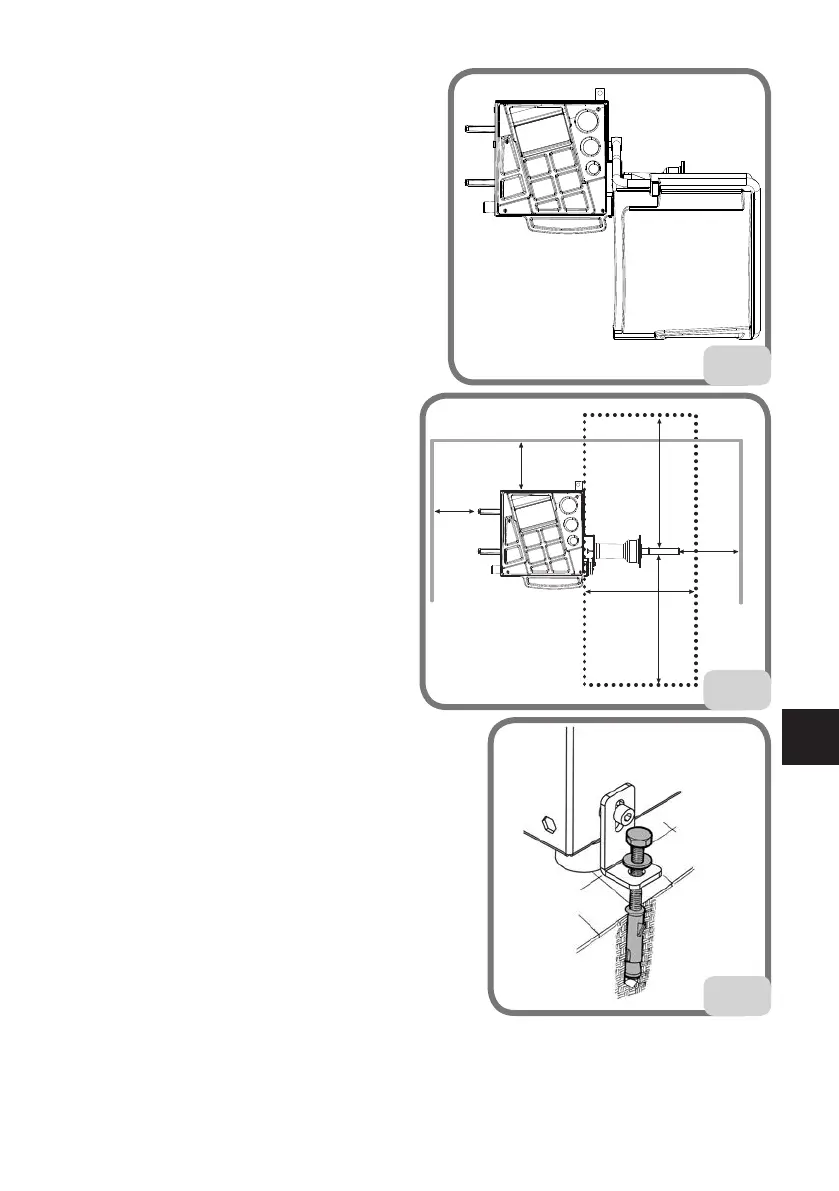

Fixing the machine to the
ground (Fig. 6)
The machine is to be fixed to the ground if:
- It does not have the accessory triangular foot.
- If it does have the accessory triangular foot
but is going to be used with wheels heavier
than 50Kg. In such a case the triangular foot
will have to be removed in order to fix the
front bracket.
- Undo the three M8x60 hex head screws
fastening the machine to the pallet.
- Remove the plastic washers between the
casing and the three L brackets: these brack-
ets will be used to fasten the machine
to the floor.
- Refit the brackets on the machine in the
original positions, without tightening
the screws.
- Position the machine on the ground in the
selected position and make sure that the
surrounding spaces correspond to the
minimum values indicated in Fig. 5/5a.
- Trace the position for drilling on the floor.
- Drill in the traced position and then take
the included Fischer M8 and insert them
into the holes that were made.
- Secure the machine to the floor by fasten-
ing the L brackets to the Fischer anchor
bolts using the relative screws and washers (fig.6).
- Tighten the three fastener screws to the casing.
