92 EM 9250 Operator’s manual
3. ENTERING WHEEL DIMENSIONS (ALU1P
AND ALU2P PROGRAMMES EXCLUDED)
Wheel data entry for wheel balancers without an ultrasonic sen-
sor or outer mechanical sensor
The machine allows for the diameter and
distance values to be entered automati-
cally; the width value can be entered using
the keypad.

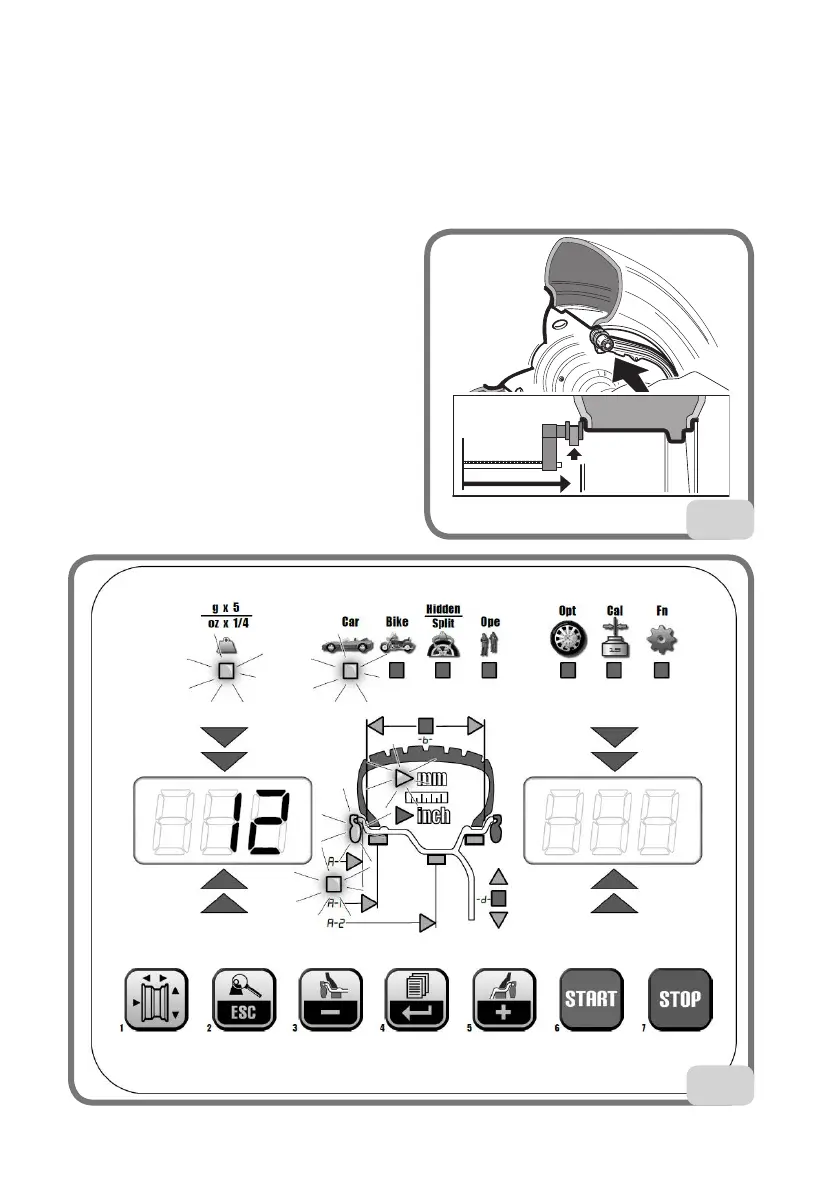

- Bring the automatic measuring arm into
contact with the inner side of the rim (fig.11).
Take great care to position the arm correctly
so as to ensure accurate data reading.
While moving the automatic arm, the dis-
tance measured by the arm is shown on
the display:
11
11a
