Network Configuration
Corinex AV200 Powerline Ethernet Wall Mount F
When to use this filter:
• When you want to isolate a Powerline test network from the rest of the
electrical grid, either because you don’t want the Powerline signal from the
test network to go out and disrupt other adapters, or because you want to
isolate this network from the noise, or other traffic, in the rest of the electrical

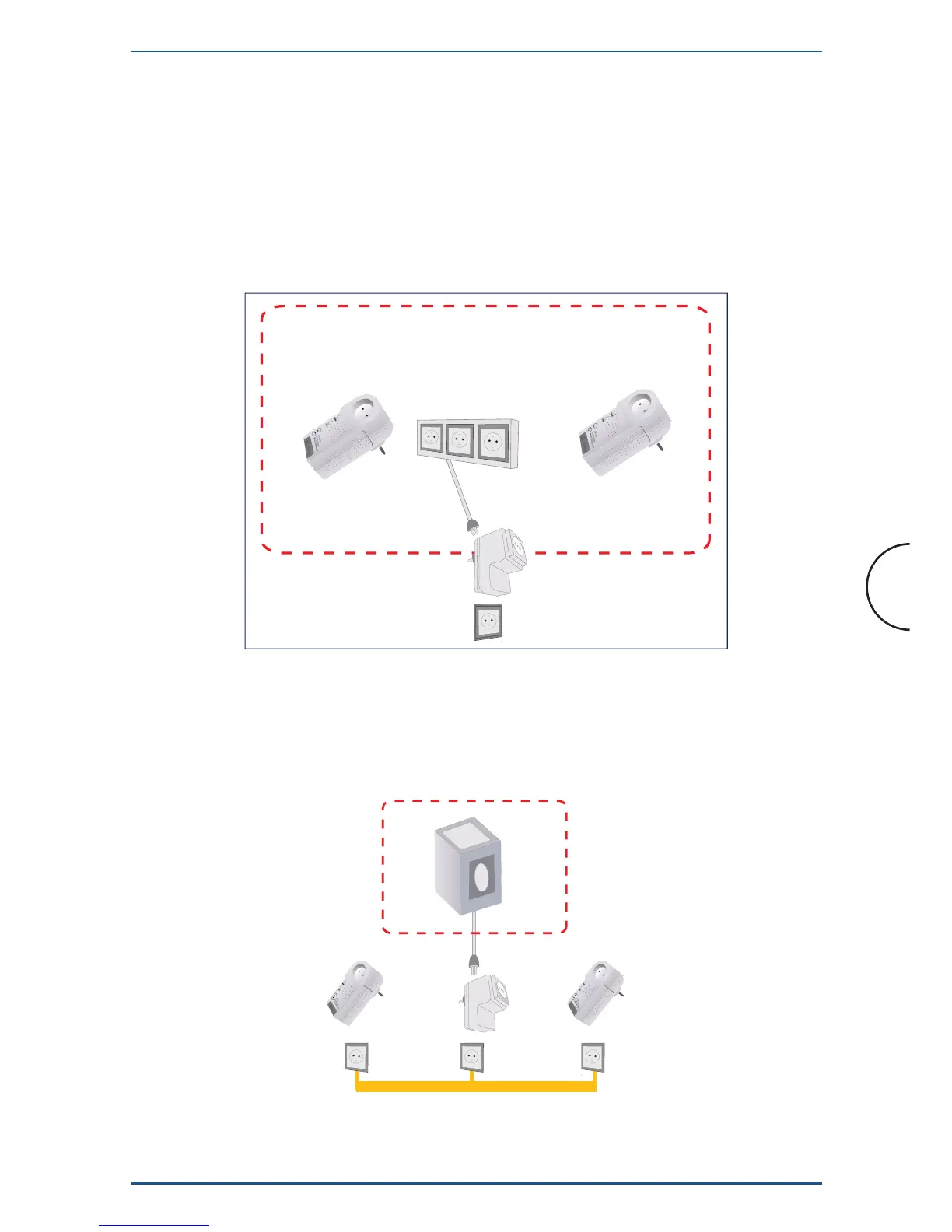

grid. This setup is illustrated in the picture below.
Powerline Domain
Corinex AV200 Powerline Wall Mount F
Power Strip
PrefilterNo Powerline signal on this side
No Noise on this side
Corinex AV200 Powerline Wall Mount F
Corinex Powerline
Noise Filter
• When you want to isolate the electrical noise produced by some household
appliance, because this noise falls in the PLC band and disrupts the signal from
the adapters. This setup is illustrated in the picture below.
Corinex Powerline
Noise Filt
er
Powerline Communication
Noisy Appliance
Corinex AV200 Powerline Wall Mount F Corinex AV200 Powerline Wall Mount F
