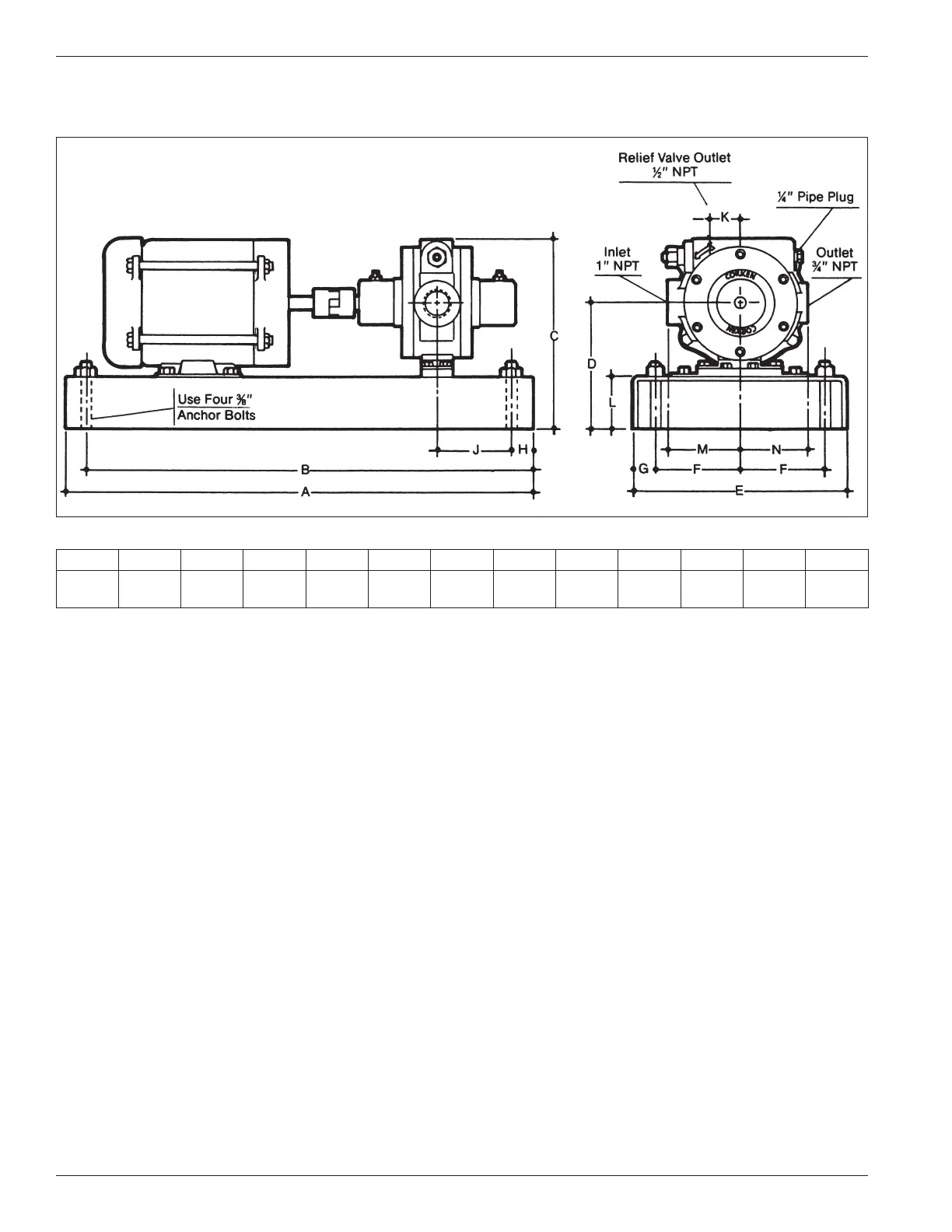

Appendix D—Outline Dimensions for Model F51-101 (Frame Mount)
A B C D E F G H J K L M N
22
(55.90)
20
(50.80)
9
(22.90)
6
(15.20)
10
(25.40)
4
(10.20)
1
(2.54)
1
(2.54)
3-1/2
(8.89)
1-7/16
(3.65)
2-1/2
(6.35)
3-3/8
(8.57)
3-3/16
(8.10)
All dimensions are in inches (centimeters).
