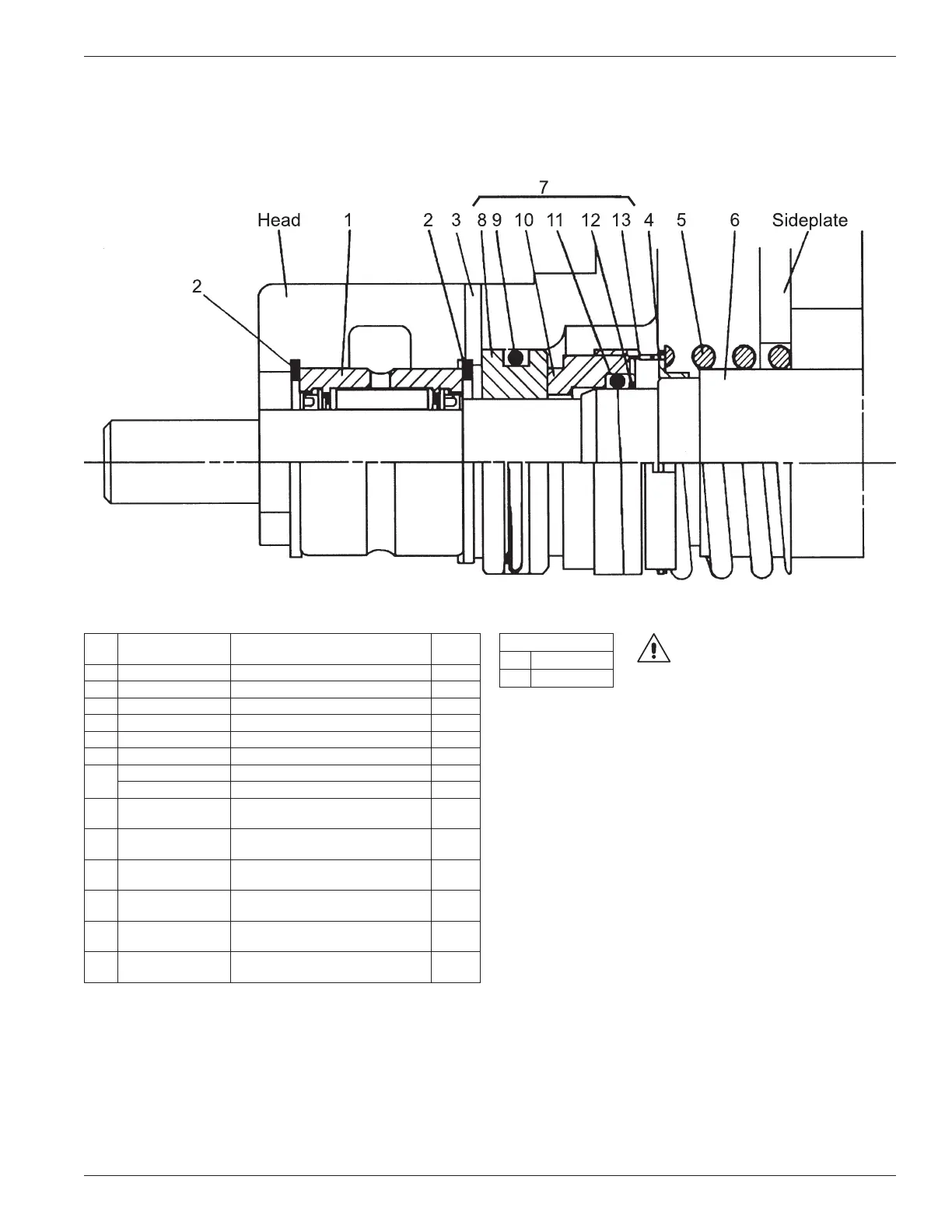

Appendix E—Parts Details for Seal Assembly (2296 Series)
Models D51 and F51
Material Code
A Buna-N
B Neoprene
®d
a
_ denotes material code. See material code chart for details.
b
Seal assembly includes the seal and a 2-154_
a
case O-ring.
c
Not sold separately. These items are included in both the seal and the
seal assembly.
d
Registered trademark of the DuPont company.
Ref
No.
Part No. Description Qty.
1. 2471 Roller bearing 1
2. 5000-112 Retainer ring 1
3. 2595 Seat location pin 1
4. 2735 Drive band (with 2492-X) 1
5. 3471 Spring (with 2492-X) 1
6. 2492-X Rotor and shaft assembly 1
7.
2296-X_6
a, b
Seal 1
2296-1X_6
a, b
Seal Assembly 1
8.
Not sold
separately
c
Silicon carbide seal seat 1
9.
Not sold
separately
c
Seat O-ring 1
10.
Not sold
separately
c
Rotor 1
11.
Not sold
separately
c
O-ring 1
12.
Not sold
separately
c
Disc 1
13.
Not sold
separately
c
Retainer 1
WARNING
CAUTION: Always relieve pressure in the
unit before attempting any repairs.
