• Potential risk due to local conditions regarding the
installation and operation (e.g. poor ventilation and
additional risks due to other elements in the vicinity, etc.).
• Qualification of the personnel.
• Type of liquid being transferred.
• Specific safety measures to be applied (e.g. gas
detection, automatic shut-off valves, personal protective
equipment, etc.).
The following table shows the weight of the bare pump
for each model. For handling a bare pump, lifting slings
should be used. Web slings are preferred over metal
slings to minimize damage to the paint. See Appendix D
for outline dimensions.
Model Shipping Weight: lb (kg)
D51 50 (22.7)
F51 25 (11.3)
521 132 (59.9)
1021 200 (90.7)
F1021 200 (90.7)
F1521 235 (106.6)

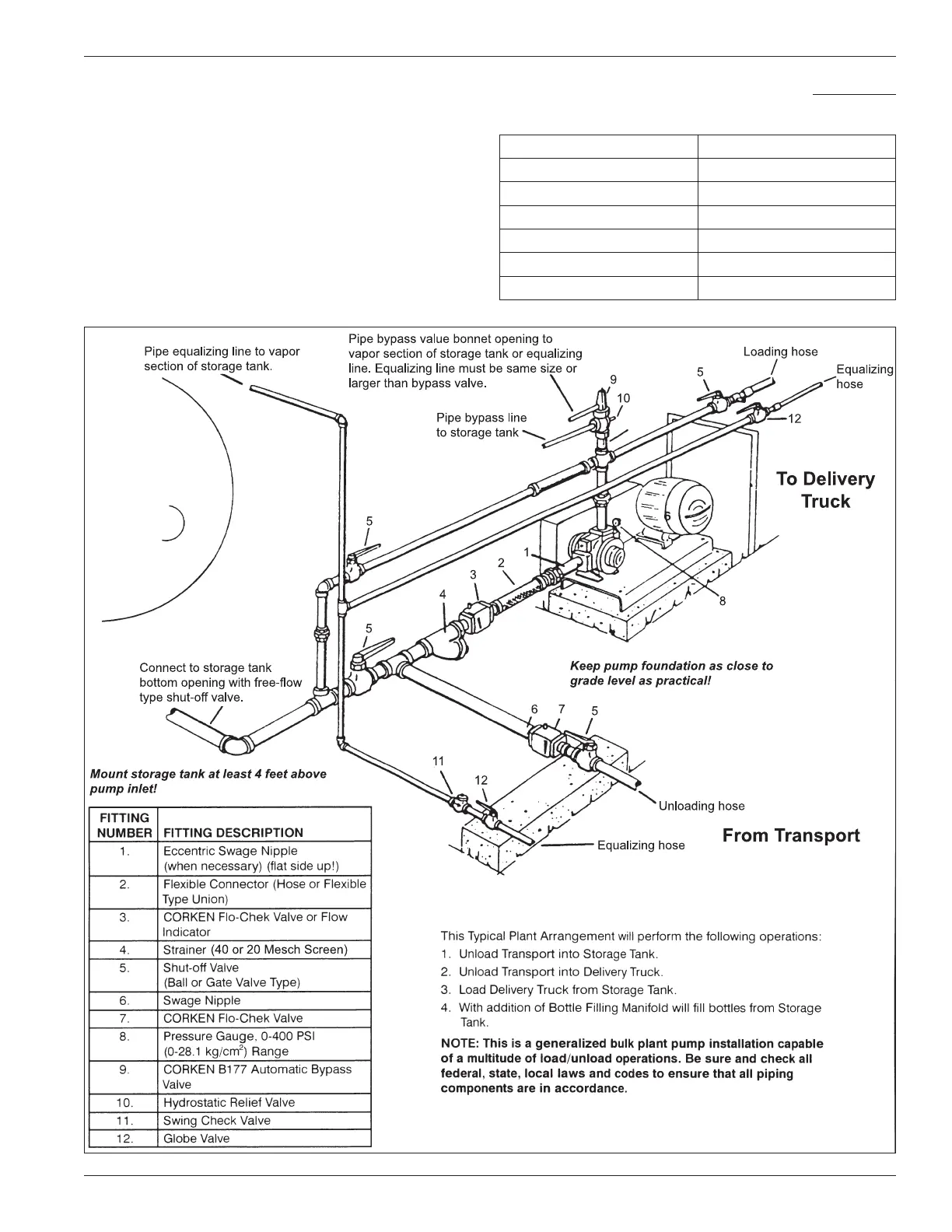

Figure 1.2: Typical Piping Diagram
5
