Instruction for use
43
electrical devices with
additional features
highlighted by the close
label (see fig. 59).
The label on the side
(fig. 60) shows the
electrical connection
dedicated to recharge the
electric battery of the
machine.
The electrical
recharging point outlet
is located on the right
side, near the lifting
point of the machine
(see fig. 61).
3.13. TRANSPORT
If the machine needs to be transported, one must
proceed correctly to avoid dangers to persons and/or
to the machine, if there is any on the machine, keep
down completely the bucket during the transport.
Because of the weight of the machine, it is not
possible to move it manually. Thus, it is necessary to
use suitable means of lifting to load it onto a means
of transport.
The machine is equipped with 4 hooks for lifting
each one with a capacity of 7.000N (700kg) for a
total of 28.000N (2.800kg).
The position of each hook is
indicated with a label like the one
shown in the fig. 62 (C0900.13.66).
To do this operation safely you
should use, as tools of lifting, 4
ropes with hooks, CE compliant; the
two front ropes are 200cm of length,
and the two rear ropes are 170cm of
WARNING: During transport, always position
the machine lev
elly to avoid the spilling of oil
or other liquids .

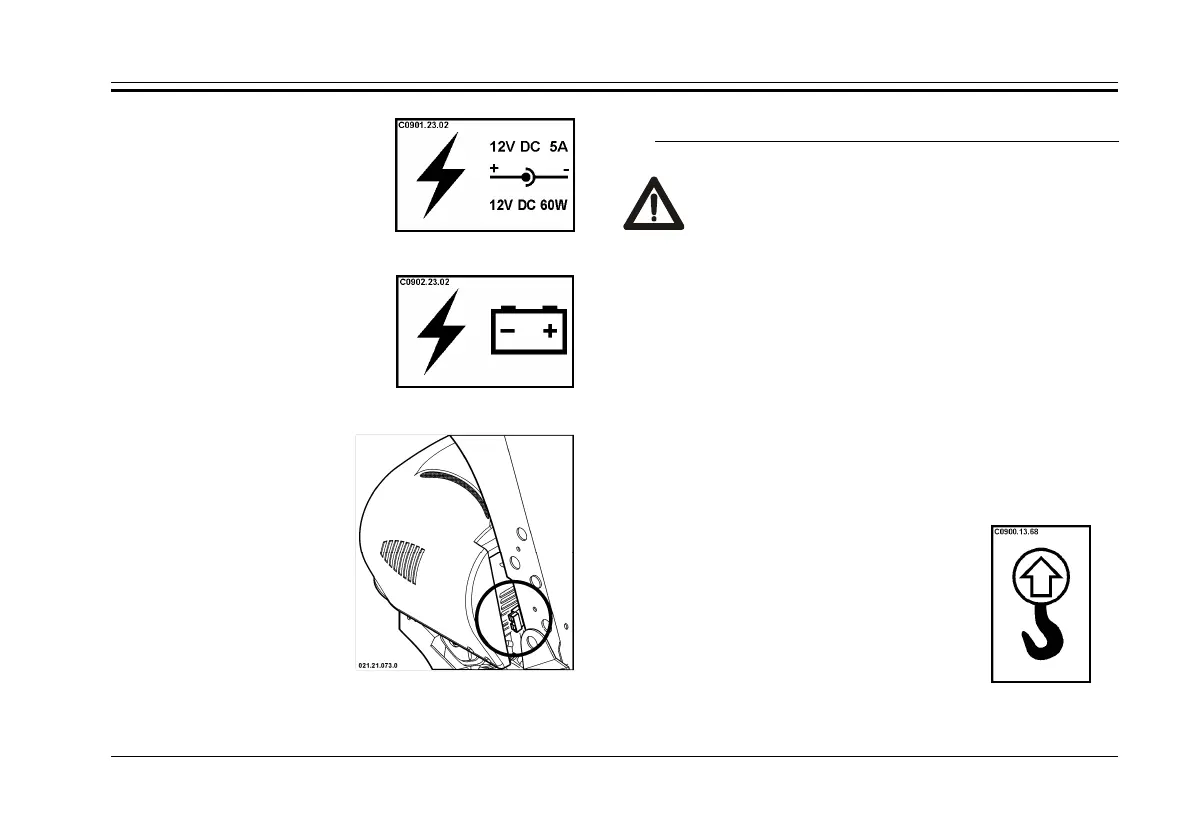

fig. 59
(cod. C0901.23.02)
fig. 60
(cod. C0902.23.02)
fig. 61
Richarging point
fig. 62
Lifting point
