• Lightly lubricate the washer of the new filter;
• Screw the new filter down well, clenching tightly by
hand only;
• Refill the oil level again.
Services Circuit
Every 300 hrs
Substitute the oil filter for the
services circuit.
The filter for the circuit feed of the auxiliary service
pump is an immersion type and is screwed directly to the
inferior tank.
Replacement:: to replace the filter, follow these
instructions (see fig. 70):
•
Empty the oil tanks, both the upper and anterior ones
by following the correct procedure;
• Unscrew the oil tube “G” by working on the junction;
• Unscrew the filter and take it out of the tank;
• Put the nipple on the new filter always checking the
lining;
• Screw the filter back into the tank;
• Screw the oil tube back on;
• Fill the tanks and check the levels.
4.4. TRACKS
Registration
Every 50 hrs
Register the tension of the tracks.
The correct ten-
sion of the tracks is
important in order to
guarantee their lon-
gevity and for your
own safety: to check
it, apply a pressure
of 5 kg on the track
and check that the
arrow is at about
30mm.
To carry out the regulation of the tension of the tracks
correctly:
• Take off the cover “B” by unscrewing the two screws “A”;
• Using two wrenches, loosen the counter-nut “C”;
• Regulate the tension by working on nut “D”;
• Check that the arrow is at 30 mm;
• When you have finished regulating, block the counter-
nut;
• Put the cover back on;
• Repeat the same procedure on the other track.

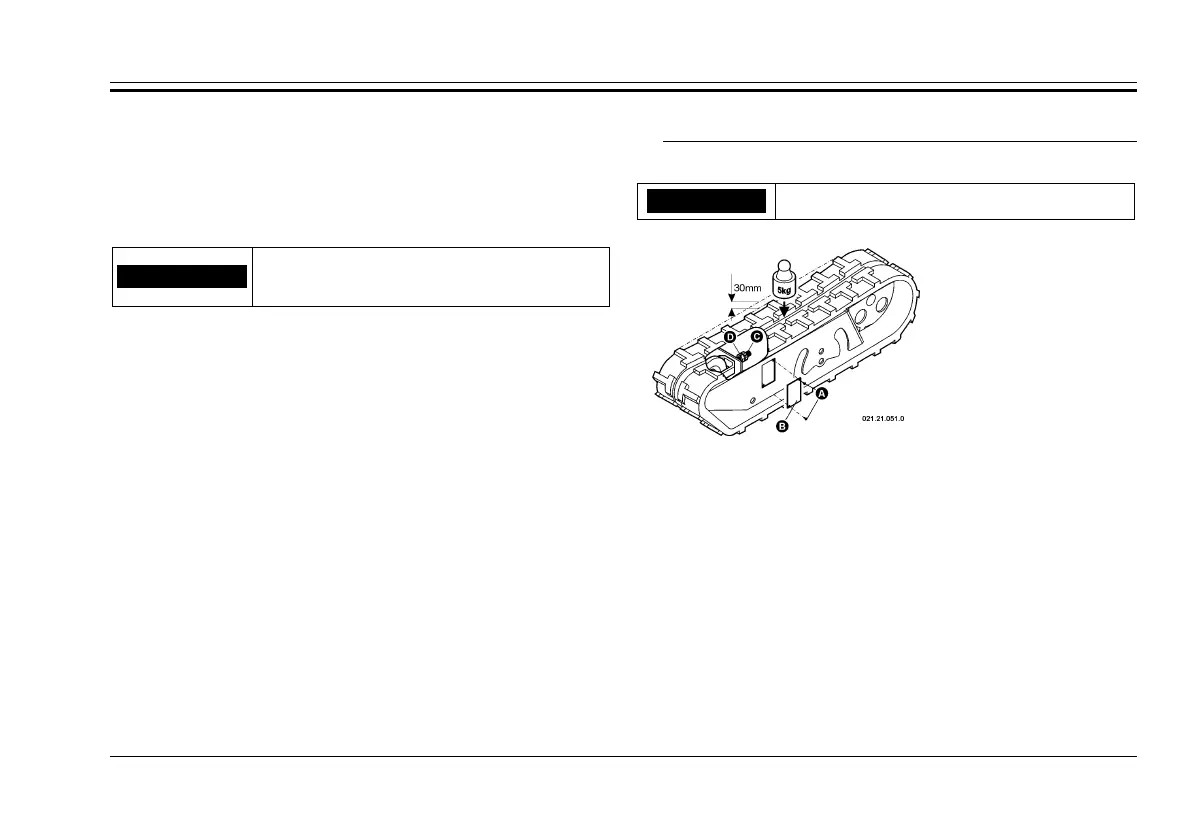

fig. 71-Regulation track tension
