Cornelius IMD Series - General Information; Specification Chart

Countertop Icemaker IMD Series Installation Manual
© 2004-2012, IMI Cornelius Inc. - 3 - Publication Number: 638085277INS
GENERAL INFORMATION
Models
Condensing
Un
it
VAC Hz Ph
Comp
RLA
Fan
Am
ps
Grmtr
Amps
Refrigerant
Circuit
Fuse
Oz. Type
IMD300-15A Air Cooled 115 60 1 6 0.82 2 12 R134a 15
IMD302-15A Air Cooled 220/240 50 1 3 .5 1.6 12 R134a 15
IMD300-30A Air Cooled 115 60 1 6.7 1.1 2 25 R404A 20
IMD300-30W Water Cooled 115 60 1 10.1 N/A 2 13 R404A 20
IMD301-30A Air Cooled 208/230 60 1 5.7 1 1.6 28 R404A 20
IMD301-30W Water Cooled 208/230 60 1 5.7 N/A 1.6 13 R404A 20
IMD302-30A Air Cooled 220/240 50 1 5.3 0.5 1.6 28 R404A 20
IMD302-30W Water Cooled 220/240 50 1 5.3 N/A 1.6 13 R404A 20
IMD600-30A Air Cooled 115 60 1 11.5 1.1 2 25 R404A 30
IMD600-30W Water Cooled 115 60 1 12 N/A 2 14 R404A 20
IMD601-30A Air Cooled 208/230 60 1 7.7 1 1.6 28 R404A 20
IMD601-30W Water Cooled 208/230 60 1 7.7 N/A 1.6 14 R404A 20
IMD602-30W Water Cooled 220/240 50 1 8.2 N/A 1.6 14 R404A 20
IMD600-90A Air Cooled 115 60 1 14.6 1.6 2 20 R404A 35
IMD600-90W Water Cooled 115 60 1 12 N/A 2 14 R404A 20
IMD601-90A Air Cooled 208/230 60 1 7.7 1 1.6 24 R404A 20
IMD601-90W Water Cooled 208/230 60 1 7.7 N/A 1.6 14 R404A 20
IMD602-90A Air Cooled 220/240 50 1 8.2 0.5 1.6 24 R404A 20
IMD602-90W Water Cooled 220/240 50 1 8.2 N/A 1.6 14 R404A 20
SPECIFICATION CHART
NOTE: For Units Not Listed in Above Chart, Refer to Nameplate or contact Factory Service.
SHIPPINGWT.189LBS.(APPROX.)

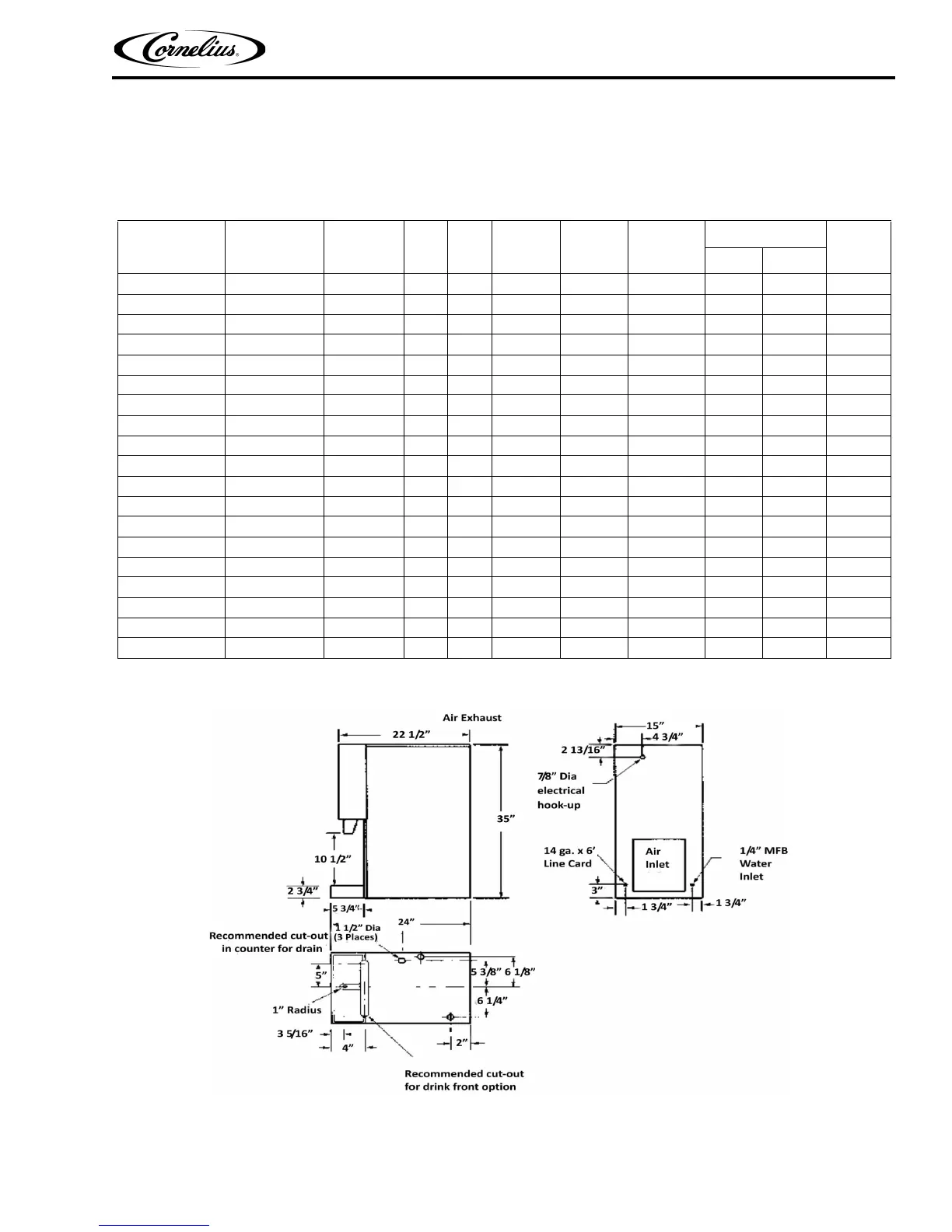

Figure 1. Dimension Drawing (15 lb.) IMD 300-15
