Quest 2000 Service Manual
© 2004, IMI Cornelius Inc. - 1 - Publication Number: 720529901SER
UNIT SPECIFICATIONS
Nameplate Data: Model QST 2000, 115 VAC, 4.5 amps, 1 phase 60 hertz, 6.25 oz. (177g) R-
134a refrigerant. Test press: High side 400 psi (27.6 bar). Low side 100 psi
(6.9 bar).
Model QST 2000, 230 VAC, 2.25 amps, 1 phase 50 hertz, 6.25 oz. (177g)
R-134a refrigerant. Test press: High side 400 psi (27.6 bar). Low side 100
psi (6.9 bar).
Concentrate Storage: Two 0.8 gallon (3.0 liter) disposable bottles.

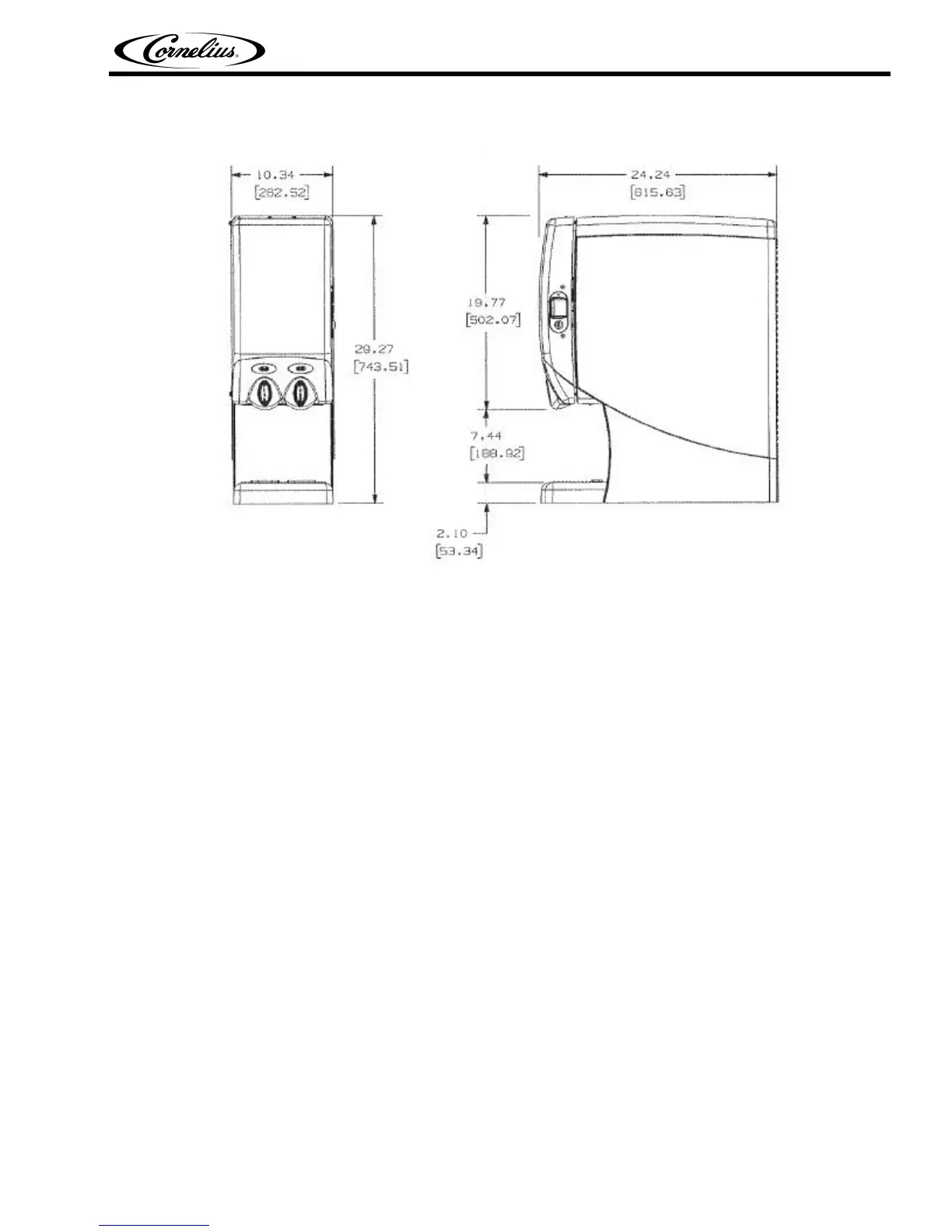

Clearance Recommended:12” (30.48 cm) on top and 4” (10.16 cm) required in back for air circulation.
Electrical Connection: 6 ft. long (1.83 m) power cord with 3-prong plug attached to dispenser.
Export models have line cord less plug.
Power Supply: 15 amps at 120 volts dedicated power supply.
20 amps at 230 volts dedicated power supply.
Water Connection: 3/8 in. (0.95 cm) SAE male flare fitting on dispenser.
Water Supply Requirements: 80 psi (5.5 bar) maximum static pressure. 20 psi (1.4 bar) minimum
dynamic pressure; i.e., flowing pressure measured at dispenser water inlet
with 3.0 ounces (88.7 ml) per second water flow.
Ice Bank/Pull Down: Weight 7-8 lbs. (4.1-4.5 kg.). Pull Down: 3 hours at 75°F (24°C)
