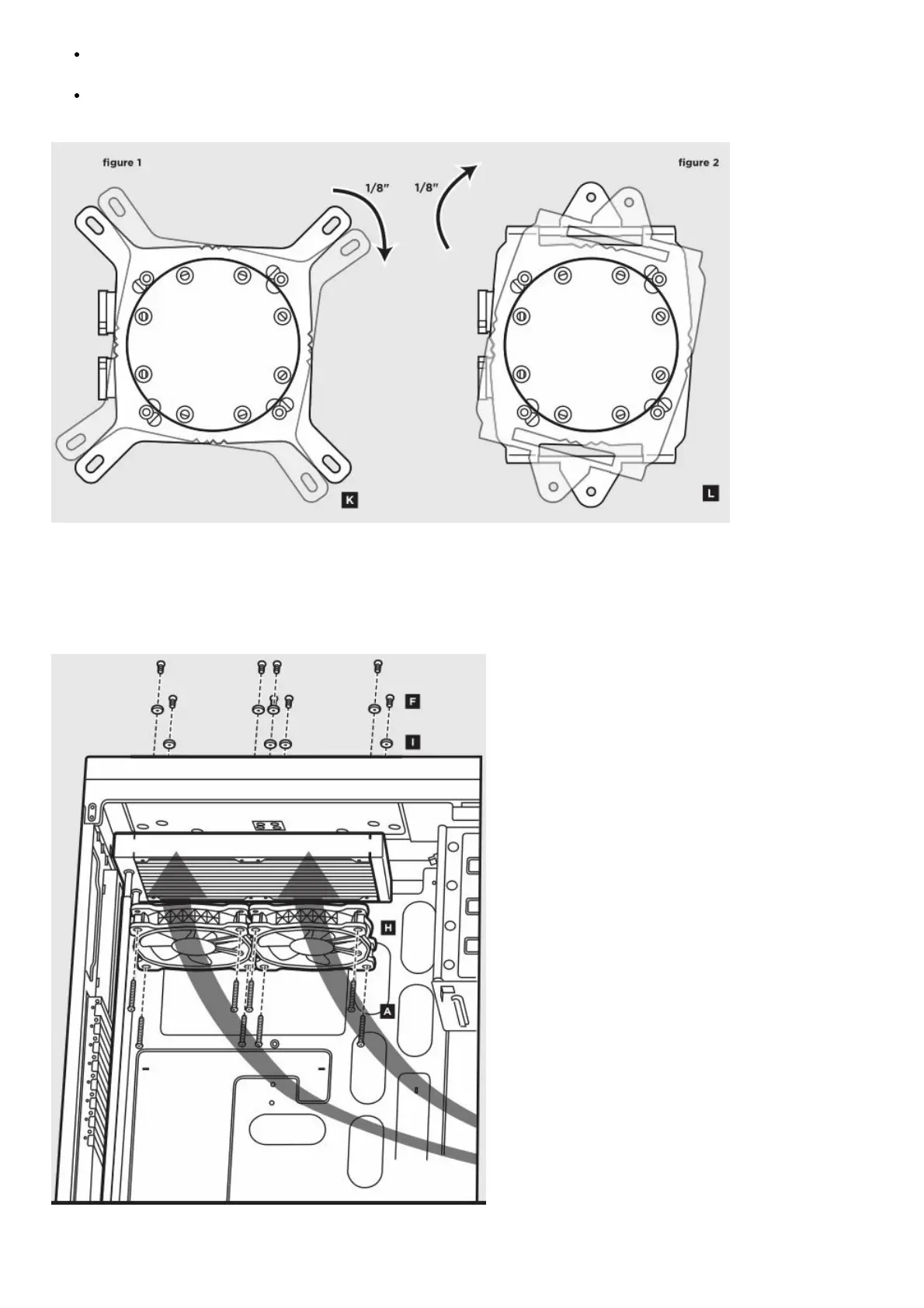

Remove the integrated Intel mounting bracket by turning the mounting bracket, and pulling away from the
copper coldplate (figure 1).
Install the AMD bracket by aligning the twist lock, pushing in, turning the opposite direction, and allowing
bracket to secure (figure 2).
Install the Fans and Radiator
Attach the radiator and the fans as shown. For the best cooling performance, we recommend mounting the fans as
an air-intake to your PC case.
Prepare the Mounting Bracket
