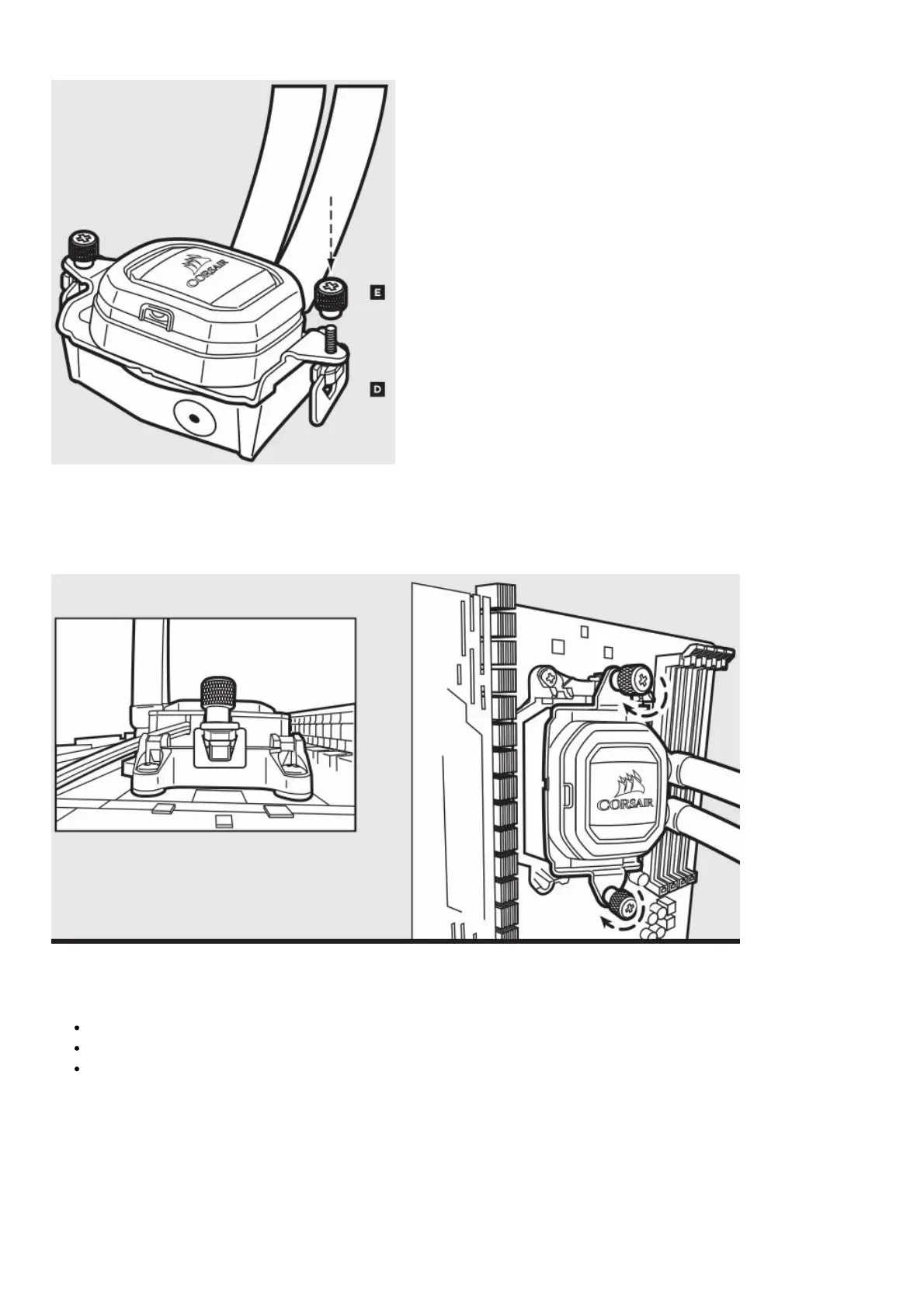

Insert the AMD screw clips and secure with the screws as shown. Do not tighten the thumb screws all the way.
Install the Pump Unit
Align the bracket with the Stock AMD mounting clips as shown. Tighten the thumb screws until secure.
Connect Power to the Fans and Pump
Connect pump power cable to an available SATA power plug (figure 1).
Connect pump tach cable to the CPU_FAN header on your motherboard (figure 1).
Connect each fan to the shrouded 4 pin connectors on the pump (figure 2)
