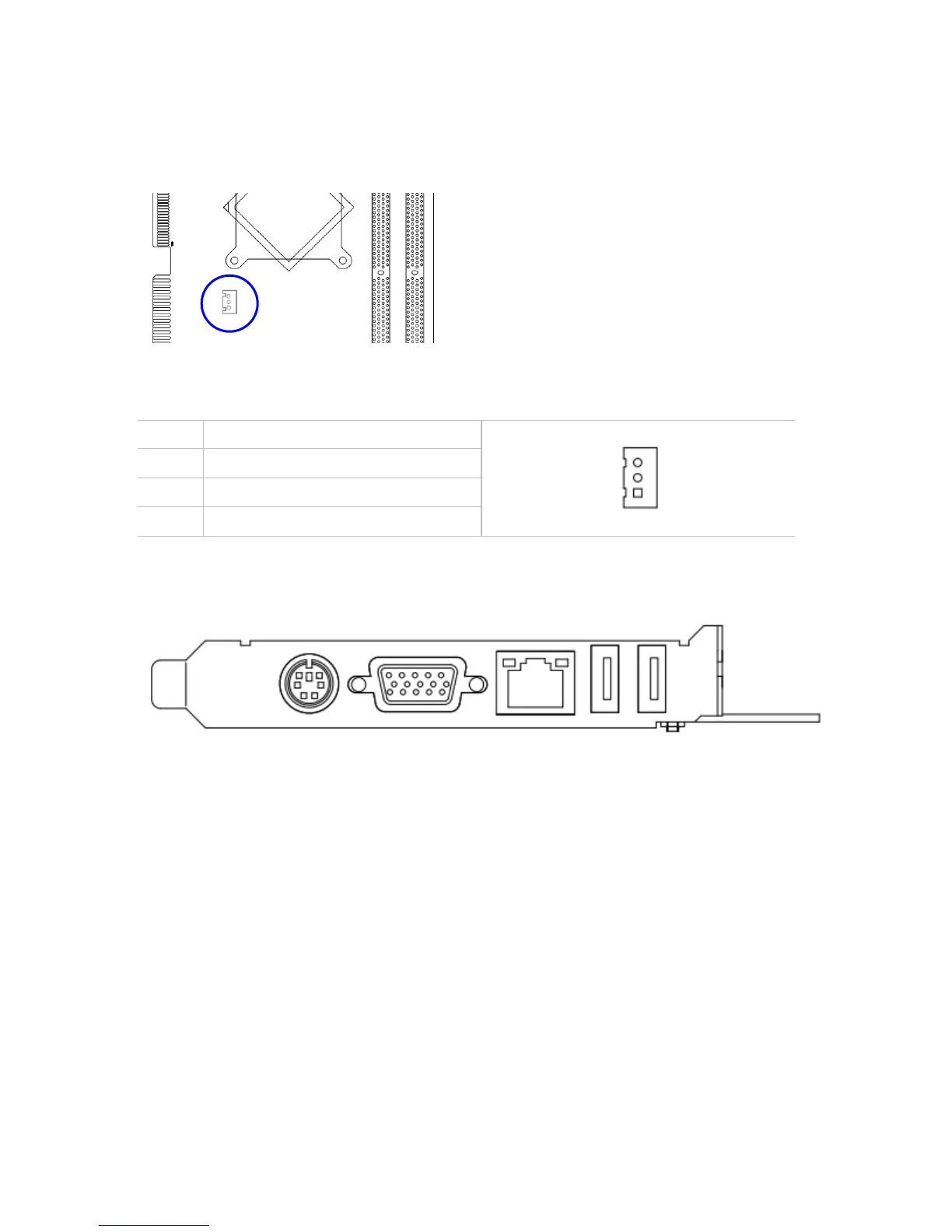

If ATX soft-power is required, a cable has to be connected between EATX1 and the backplane,
providing 5V Standby to the Q35SB, while allowing the board to send the PS-ON signal to the power
supply.
ATX Header: EATX1
PIN ASSIGNMENT
3 5V Standby
2 GND
1 PS-ON
Back Panel Connections
PS/2 Mouse/Keyboard Connector: (KBM1)
The combo mini-DIN connector combines the keyboard and mouse. A splitter cable is available
VGA Connector (15-pin D-Sub) Connector: (VGA1)
The 15-pin D-Subminiature female connector supports analog displays.
LAN Port connector: (LAN1)
This connector is a standard GbE RJ45 Ethernet port.
Dual USB Port connectors: (USB1)
These connectors are standard type A USB2.0 connectors.
22
