Corvalent Q35SBC - Header & Connectors

Header & Connectors

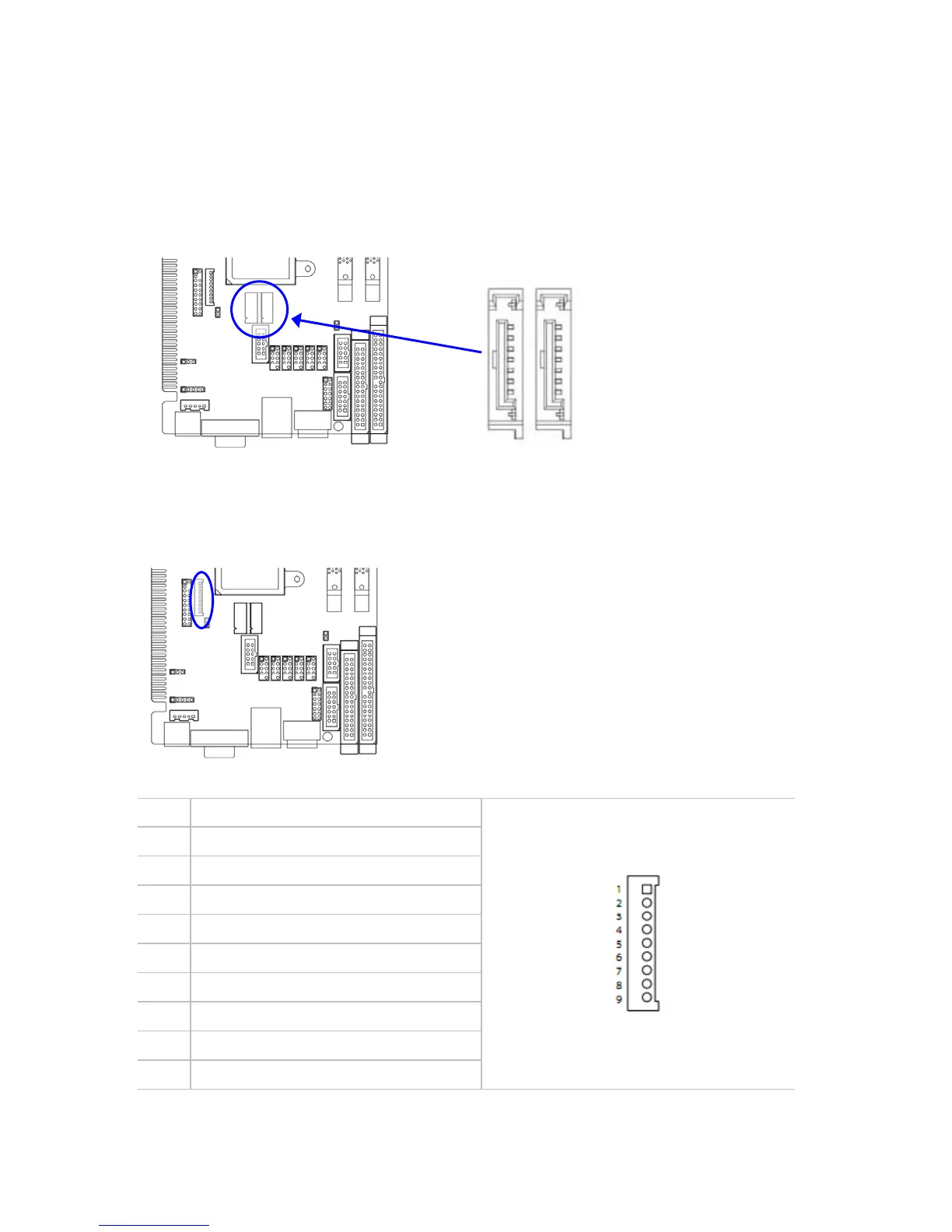

Serial-ATA2 Ports: (SATA1-SATA2 )
These connectors allow for the support of up to 2 SATA devices. It is preferable to use SATA-II
certified cables. These cables easily connect to the motherboard and the SATA peripheral.
External Audio: CN3
The optional AUDIO Daughter board gets connected to this header.
PIN ASSIGNMENT
1 +12V
2 +3.3V
3 AC_SYNC
4 AC_SDOUT
5 GND
6 AC_BCLK
7 GND
8 AC_RST#
9 AC_SDIN0
