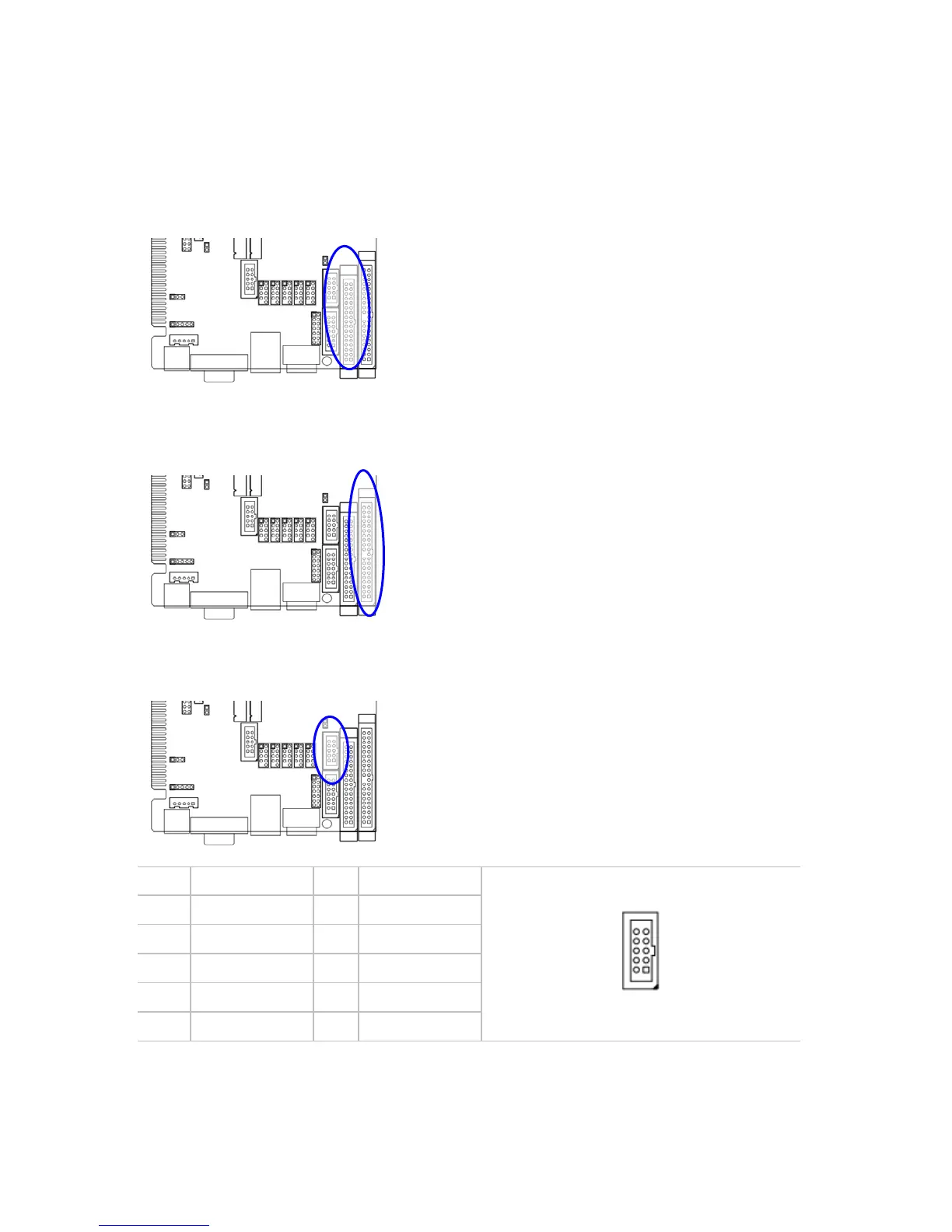

Floppy drive Connector: FDD1
Use this connector with a standard floppy drive ribbon cable. The motherboard supports 1 floppy-
drive. After connecting the single plug end to motherboard, make sure to connect the drive to the
connector at the end of the cable.
PATA IDE Connector: IDE1
Use this connector with a standard 40 pin, 80 wire IDE cable.
Serial Port 1: COM1
PIN ASSIGNMENT PIN ASSIGNMENT
10 GND 9 GND
8 RI# 7 DTR#
6 CTS# 5 TX
4 RTS# 3 RX
2 DSR# 1 DCD#
2 1
24
