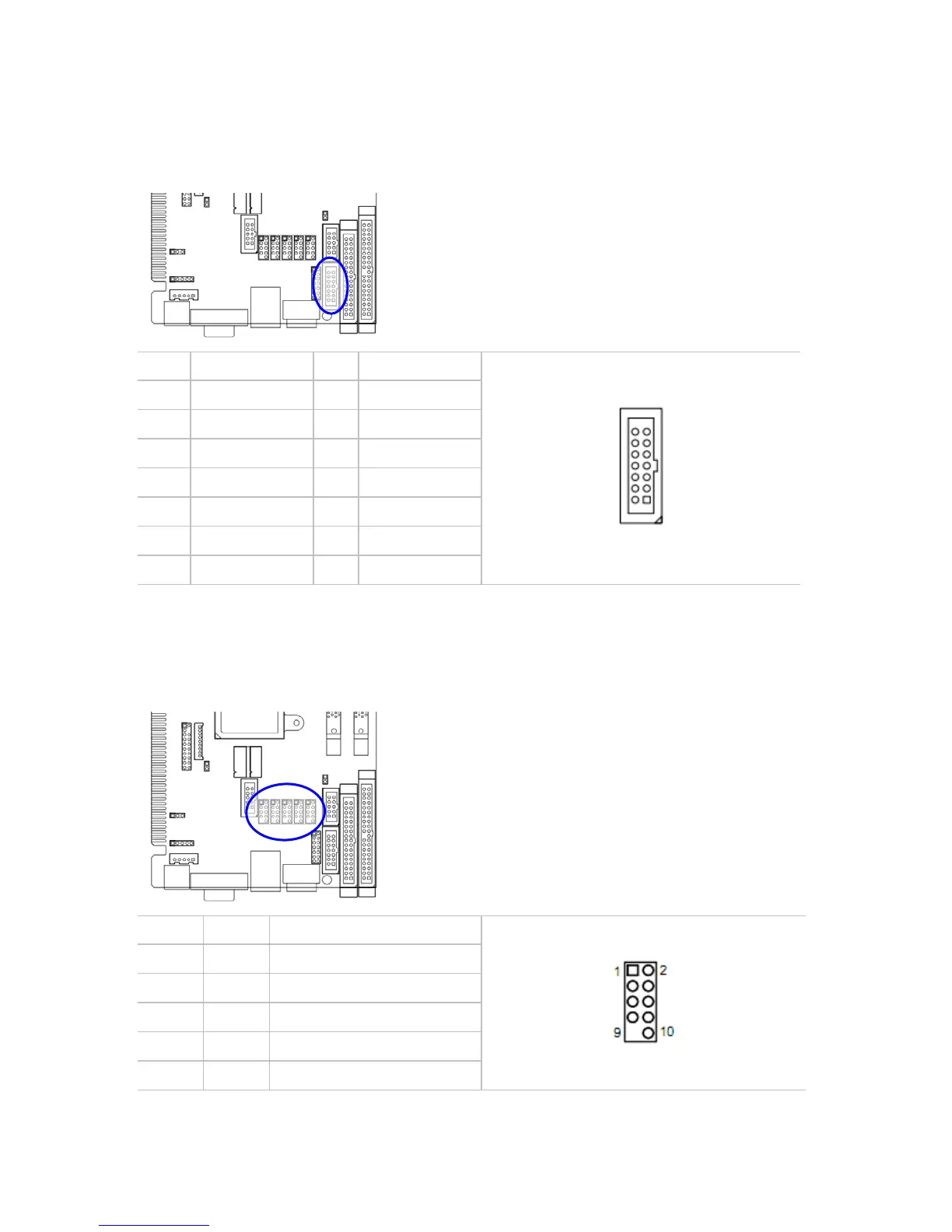

Serial Port 2: COM2
PIN ASSIGNMENT PIN ASSIGNMENT
14 RX- 13 RX+
12 TX- 11 TX+
10 GND 9 GND
8 RI# 7 DTR#
6 CTS# 5 TX
4 RTS# 3 RX
2 DSR# 1 DCD#
2 1
USB Port Headers: USB2, USB3, USB4, USB5 and USB6
The headers are used for additional USB connectivity. By attaching optional USB cables, your will
have 10 additional USB ports.
PIN PIN ASSIGNMENT
1 2 VCC
3 4 D0-
5 6 D1-
7 8 GND
9 10 KEY / N/C
25
