Corvalent Q35SBC - Page 26

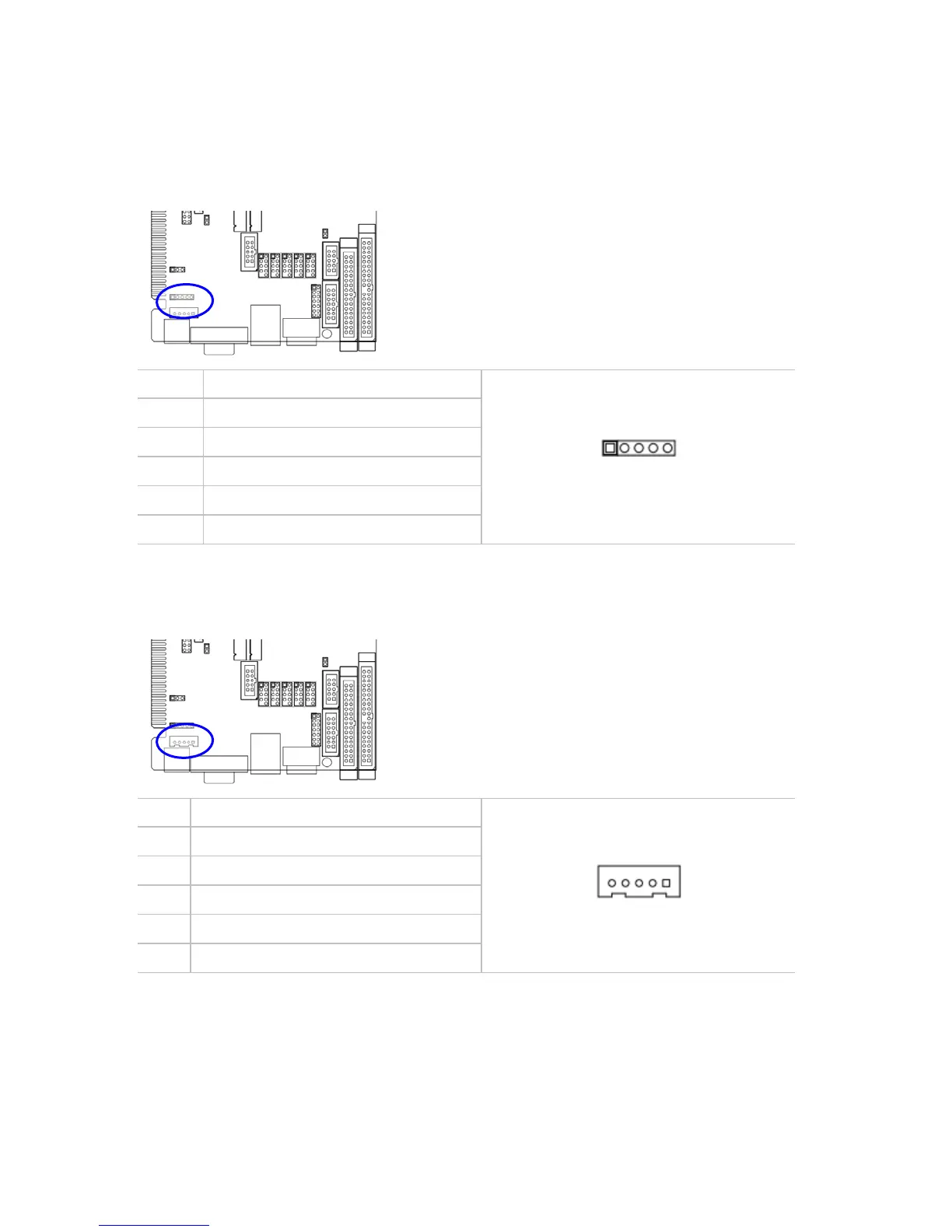

IR infrared module Header: IR1
This connector supports the optional wireless transmitting and receiving infrared module. You must
configure the setting through the BIOS setup to use the IR function.
PIN ASSIGNMENT
1 +5V
2 N/C
3 IRRX
4 GND
4 IRTX
1 4
External Keyboard: EKB1
PIN ASSIGNMENT
5 +5V
4 GND
3 N/C
2 KBDATA
1 KBCLK
5 1
26
