Corvalent Q35SBC - Page 27

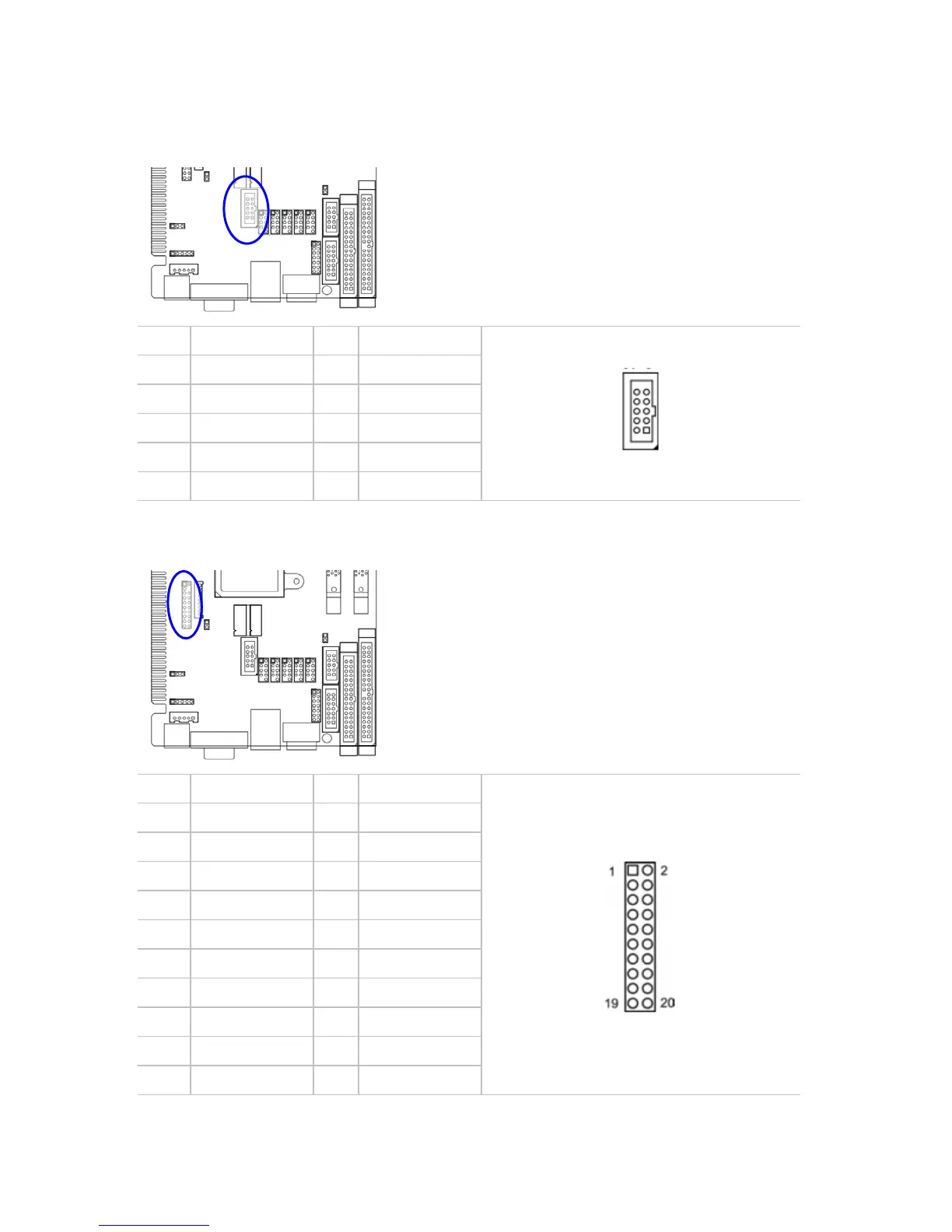

Digital I/O: DIO1
PIN ASSIGNMENT PIN ASSIGNMENT
10 GND 9 +5V
8 DI3 7 DO3
6 DI2 5 DO2
4 DI1 3 DO1
2 DI0 1 DO0
2 1
Trusted Platform Module: TPM1
PIN ASSIGNMENT PIN ASSIGNMENT
1 CLK 2 GND
3 LFRAME 4 N/C
5 LRESET 6 N/C
7 LAD3 8 LAD2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 N/C 14 N/C
15 +3.3V_SB 16 SERIRQ
17 GND 18 CLKRUN
19 PD 20 N/C
