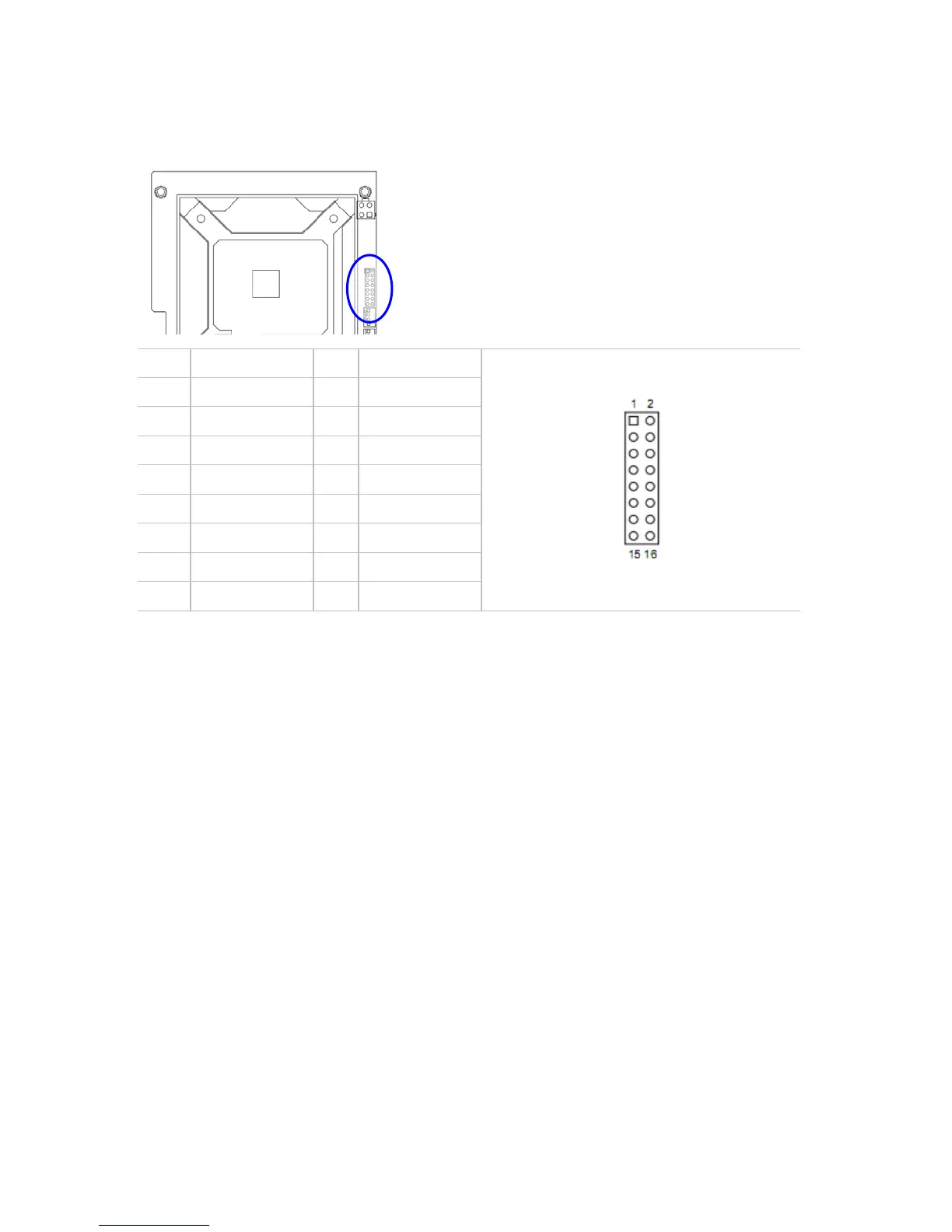

Front Panel Header: JFRT1
PIN ASSIGNMENT PIN ASSIGNMENT
1 Power LED+ 2 Power Switch+
3 GND 4 Power Switch-
5 GND 6 RESET+
7 HDD LED+ 8 RESET-
9 HDD LED- 10 Speaker+
11 SMBCLK 12 Speaker-
13 SMBDATA 14 GND
15 GND 16 +5V
