22

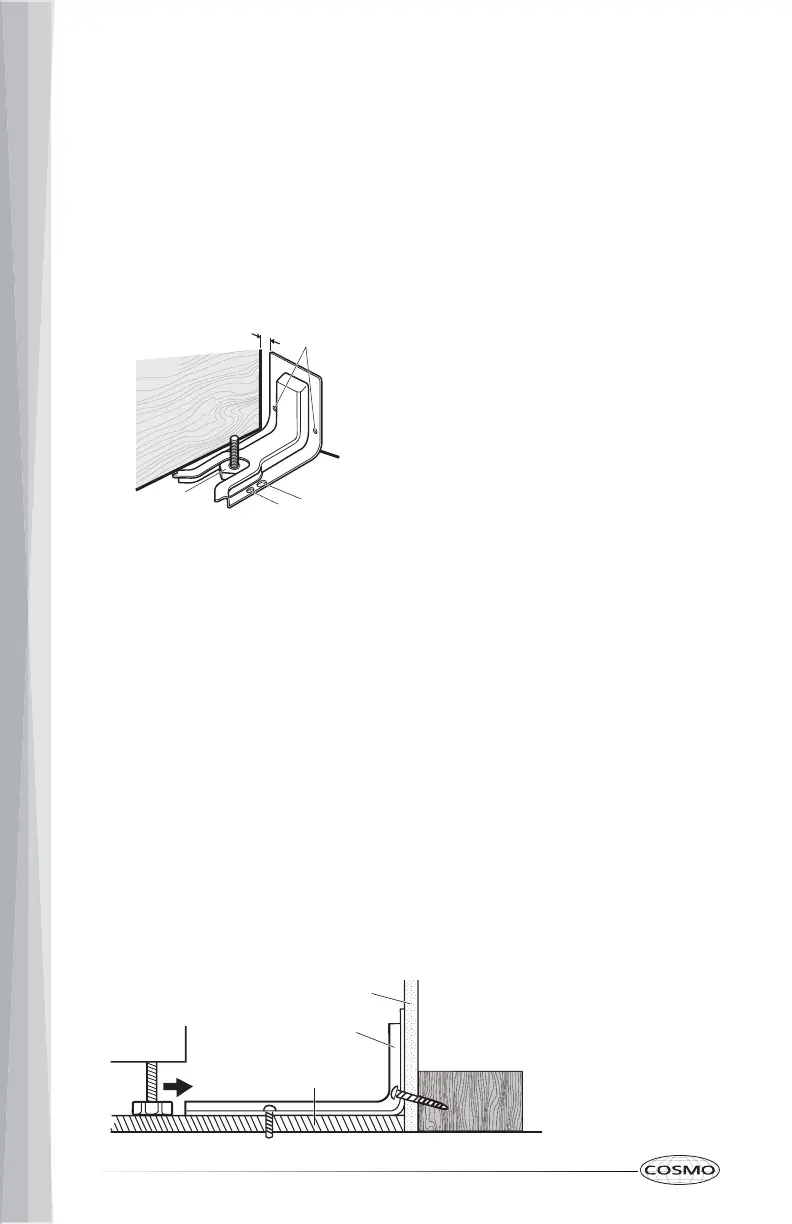

Distance from Adjacent Cabinet
(3/8" to 1/2" [0.95 cm to 1.27 cm])
Wall Holes
Concrete Floor Holes
Wood Floor Holes
Rear Range Foot
a
b
a
b
d
c
d
c
e
e
Wall
Anti-tip
Bracket
Floor
a
b
c
a
b
c
2. Place the bracket so that the back of the bracket is against the rear wall
and the side edge of the bracket is 3/8" to 1/2" from the adjacent cabinet.
NOTE: If there is no adjacent cabinet, place the bracket so that the edge
of the bracket is 3/8" to 1/2" in from the range side panel. If the
countertop overhangs the cabinet, offset the bracket from the cabinet by
the depth of the overhang plus an additional 3/8" to 1/2".
3. Using the anti-tip bracket as a template, mark the two holes for either a
Floor Wood, Floor Concrete, or Wall installation, as shown.
4. Drill two pilot holes where marked. Follow the instructions specific to your
construction.
NOTE: A nail or awl may be used to create a pilot hole, if a drill is not
available. For concrete construction 1/4" x 1 ½" Lag Bolts and 1/2" O.D.
Sleeve Anchors are required.
Wood
• Floor - Drill a 1/8" pilot hole, as shown.
NOTE: Contact a qualified floor covering installer for the best
procedure for drilling mounting holes through your type of floor
covering.
• Wall - Drill an angled 1/8" pilot hole, as shown.
Concrete
• Drill the size hole recommended for the anchors into the concrete at
the center of the holes identified as Floor Concrete or Wall.
