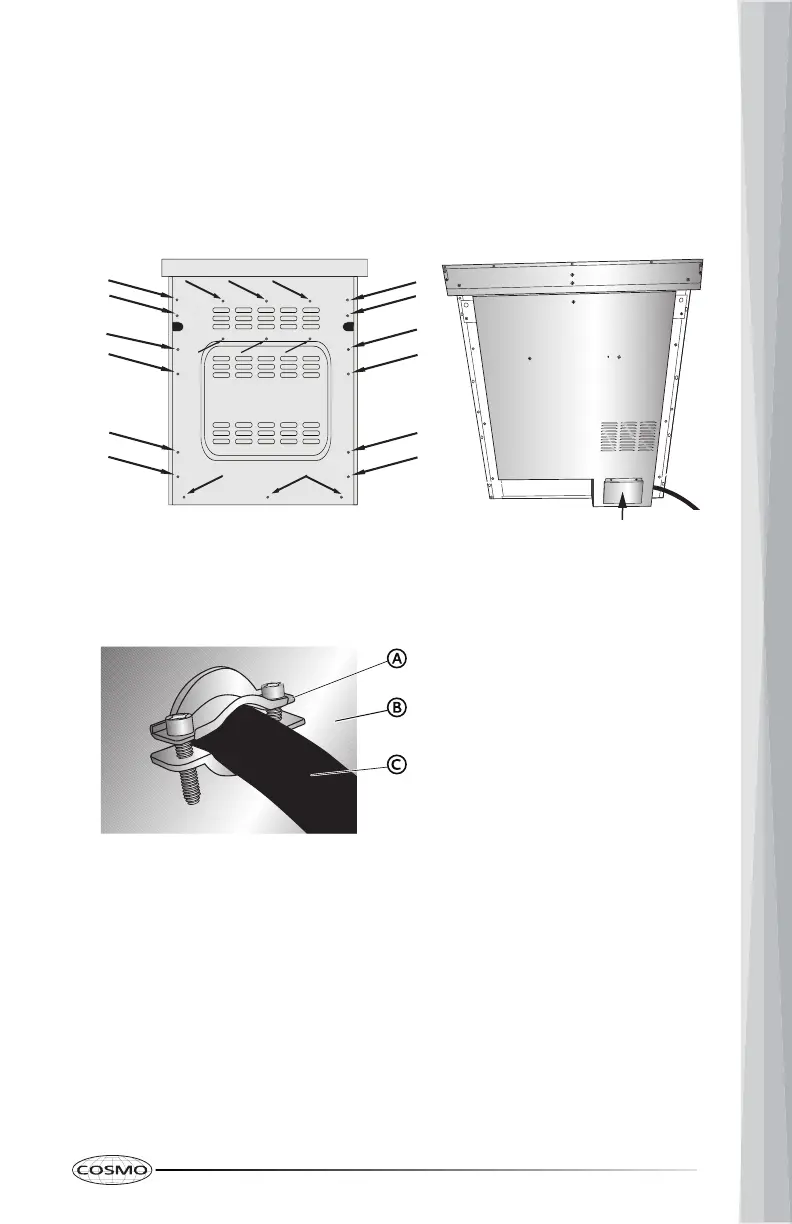

Power supply cord strain relief
Terminal block access
(F965NF only)
UL Listed Strain Relief
Bottom Panel
Power Cord
a
b
c
1. Disconnect power.
2. Remove the terminal block cover screws located on the back of the range.
Pull the cover down and toward you to remove cover.
3. Remove the knockout for the 40-amp supply cord, and assemble a UL
listed strain relief in the opening.
4. Feed the power supply cord behind the black horizontal cross brace and
through the strain relief, allowing enough slack to easily attach the wiring
to the terminal block.
5. Complete installation following instructions for your type of electrical
connection:
• 4-Wire (recommended)
• 3-Wire (if 4-wire is not available)
