CountyLine CL520CT7 - Electrical Wiring and Voltage Setup; Checking and Setting Pump Voltage; Connecting Power Supply Wiring to Switch

Electrical 7
5982 0409

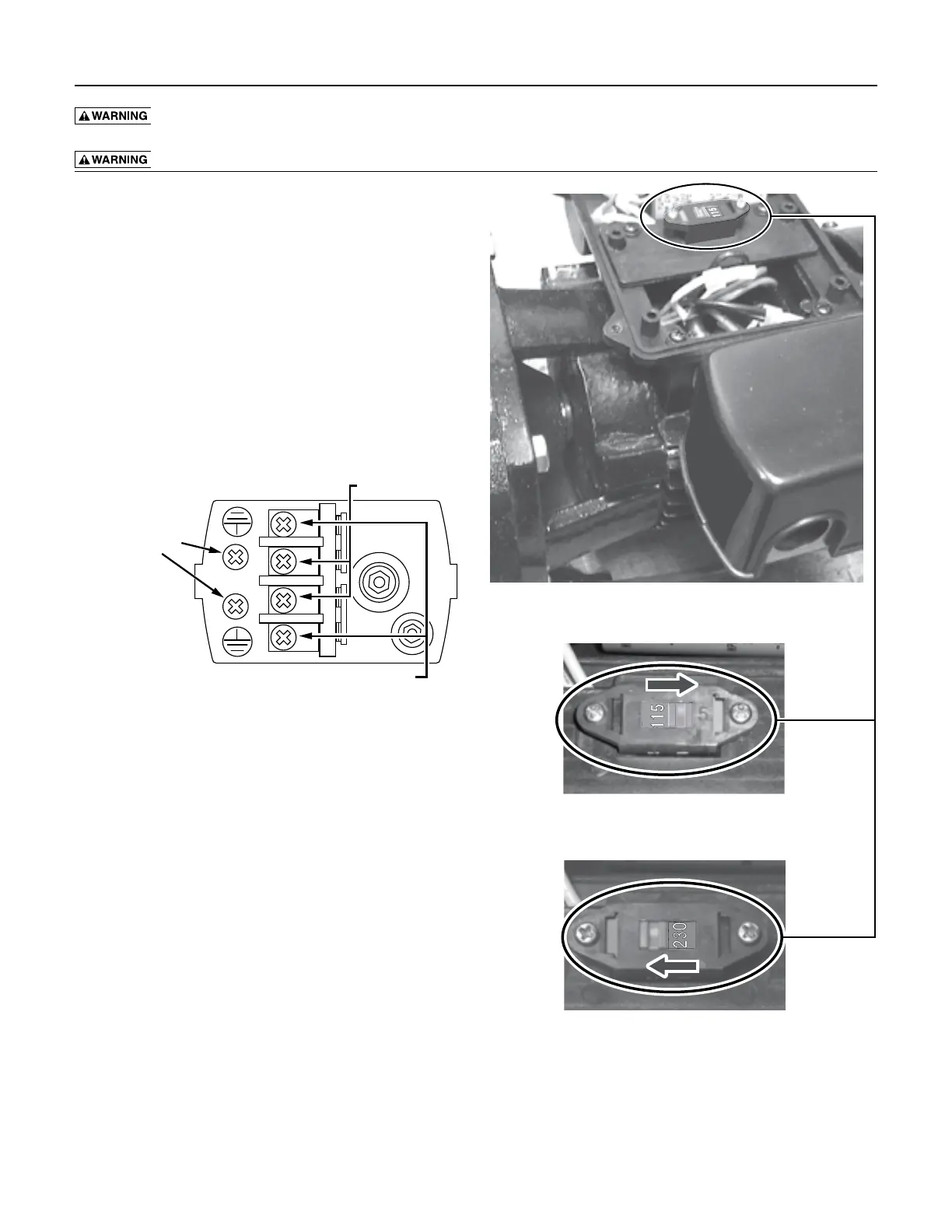

Figure 9B - Pump is shipped from factory set for
115-volt operation (above). To change to 230-volt
operation, slide switch to display ‘230’ (below).
Figure 9A - Remove cover from capacitor box to reach
voltage change slide switch.
Figure 9C - Slide switch set for 230-volt operation.
Check Voltage Setting
1. Turn off power to the pump!
2. Determine if the power supplied to the pump is
115or 230 volts.
3. A qualified person must install electrical wiring.
4. The voltage switch is factory set to 115 volts. If you
have 115 volt service, do not change the selection.
1/2 HP motors are preset at the factory for 115 volts.
5. To change the voltage (if necessary), remove the
motor capacitor cover and slide the switch fully to
the correct voltage.
6. Reinstall the cover.
Do Not Turn on Power Yet!
Co nnect Power Supply Wiring to
Pressure Switch
1. Remove the pressure switch cover.
2. Attach power and ground wires to the pressure
switch as indicated in Figure 8.
3. Reinstall the cover.
Do Not Turn on Power Yet!
Ground
Connections
To Motor
From Line
5907 1108
Figure 8 - Connect power supply wires to pressure
switch as shown.
Risk of electric shock. Can shock, burn or kill. Disconnect power before working on pump, motor,
pressure switch, or wiring.
Risk of fire. Never connect a 115 volt motor to a 230 volt line.
