CountyLine CL520CT7 - 1;2 HP Convertible Pump Repair Parts; Pump Component Identification and Part Numbers; Repair Kits and Assemblies Listing

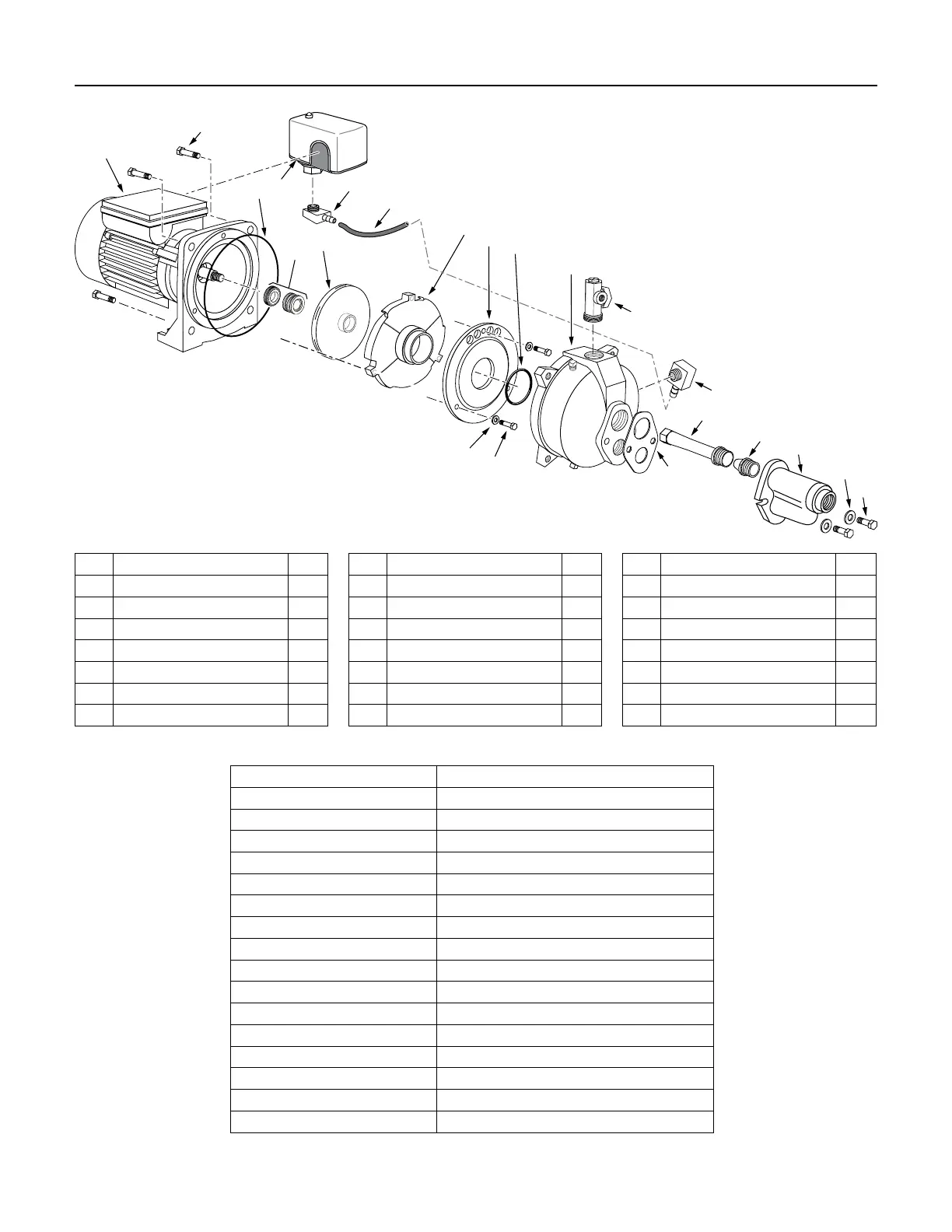

Repair Parts 12
Ref. Description Qty.
1 Motor/Seal Plate Assembly 1
1A Motor Flange Screw 4
2 Seal Plate O-Ring 1
3 Pressure switch 1
4 Shaft Seal 1
5 Impeller 1
6 1/4” NPT x 1/4” Barb Elbow 2
Ref. Description Qty.
7 Hose 1
8 Diffuser 1
9 Diffuser Plate 1
10 Diffuser Plate O-Ring 1
11 Diffuser Plate Washer 3
12 Diffuser Plate Screw 3
13 Venturi 1
Ref. Description Qty.
14 Nozzle 1
15 Pump Body 1
15A Pressure Regulator 1
16 Ejector Gasket 1
17 Ejector Body 1
18 Washer 2
19 Ejector Capscrew 2
1/2 HP Convertible (Deep Well) Pump CL520CT7
Part Description Part Number
Seal and O-Ring Kit RPK-35
Overhaul Kit RPK-205DW
Ejector Kit FP520-100
Pump Body Assembly R176-72
Pressure Switch (30-50) TC2151
Pressure Switch Tubing FPASFK
Pressure Regulator FPAPR
Kits Include: Ref. Nos
Seal and O-Ring Kit: 2, 4, 10, 16
Overhaul Kit (Shallow well) 1A, 2, 4, 5, 8, 9, 11(3), 12(3), 13, 14
Overhaul Kit (Convertible) 1A, 2, 4, 5, 8, 9, 10, 11, 12
Ejector Kit ( Convertible) 6(2), 7, 13(5), 14(2), 16, 17, 18(2), 19(2)
Pump Body Assembly (Convertible) 2, 6, 10, 15, 16, 1/4” NPT Plug(2), 1/2” NPT Plug
Pump Body Assembly (Shallow well) 2, 6, 13, 14, 15, 1/4” NPT Plug(2), 1/2” NPT Plug
Pressure Switch 3
Pressure Switch Tubing Kit 6(3), 7
1
2
3
1A
5
4
6
7
8
5912 1011
9
6
16
13
14
17
18
19
15
15A
11
10
12
