Disassembling and refitting

Coway co., Ltd

4-3

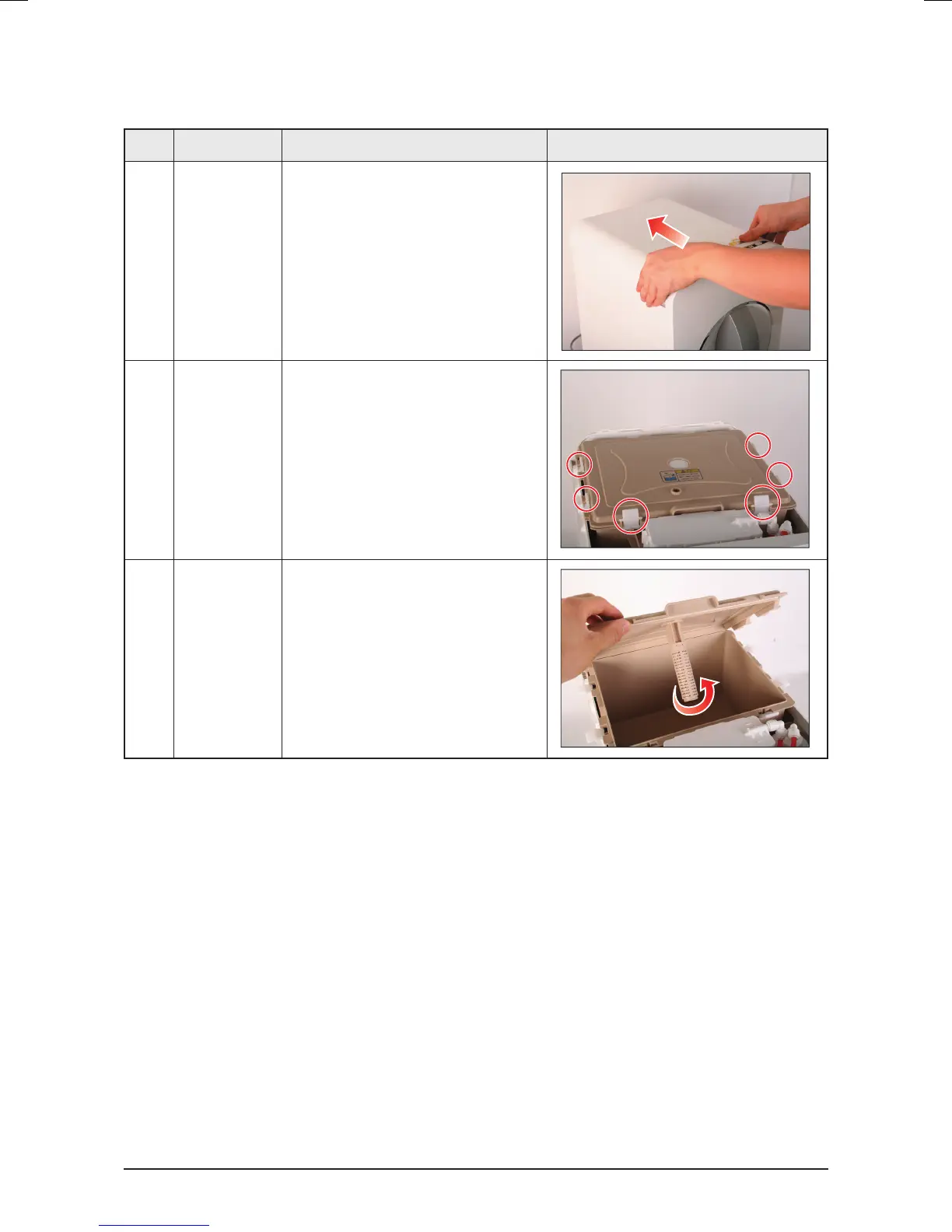

4-2-2 Separating the top cover

No. Part name Explanation Reference picture

1 Top cover

Assy

1) Separate the Top cover Assy

the direction of the arrow.

2 Main tank

cap Assy

1) Open the 6 main tank sealing

clips and then separate the Main

tank cap Assy

3 Ceramic

filter

1) Separate by rotating the

Ceramic

filter.

P-07QR_L_U-Eng.indb 3 2008-07-22 ｿﾀﾈﾄ 2:54:17

Table of Contents3
Precautions on Electricity (P-07QR Only)5
Precautions on Installation6
Precautions on Use7
Precautions on Services (P-07QR Only)8
Product Characteristics9
Major Specifications10
Appearance and Dimensions11
Installation Materials13
- Installing the Product15
Checking the System after Installation17
Disassembling and Refitting Information19
Draining Water before Disassembling the Product20
- Separating the Top Cover21
- Front Assy Part Separation22
- Rear Cover Part Separating24
Exploded View and Parts List of P-07QR/L/U28
Service Parts List of P-07QR/L/U31
Electrical Wiring Diagram (P-07QR Only)35
Cable Specification (P-07QR Only)36
Water Piping Diagram37
- P-07QU Water Piping Diagram38
PBA Location Diagram (P-07QR Only)39
Names of each Part43
Water Filtering System44
- The 5-Step Water Filtering System (P-07QU)45
Toto Services46
- Replacing Filters47
- Cleaning and Maintenance49
