Parts location diagrams

Coway co., Ltd

6-5

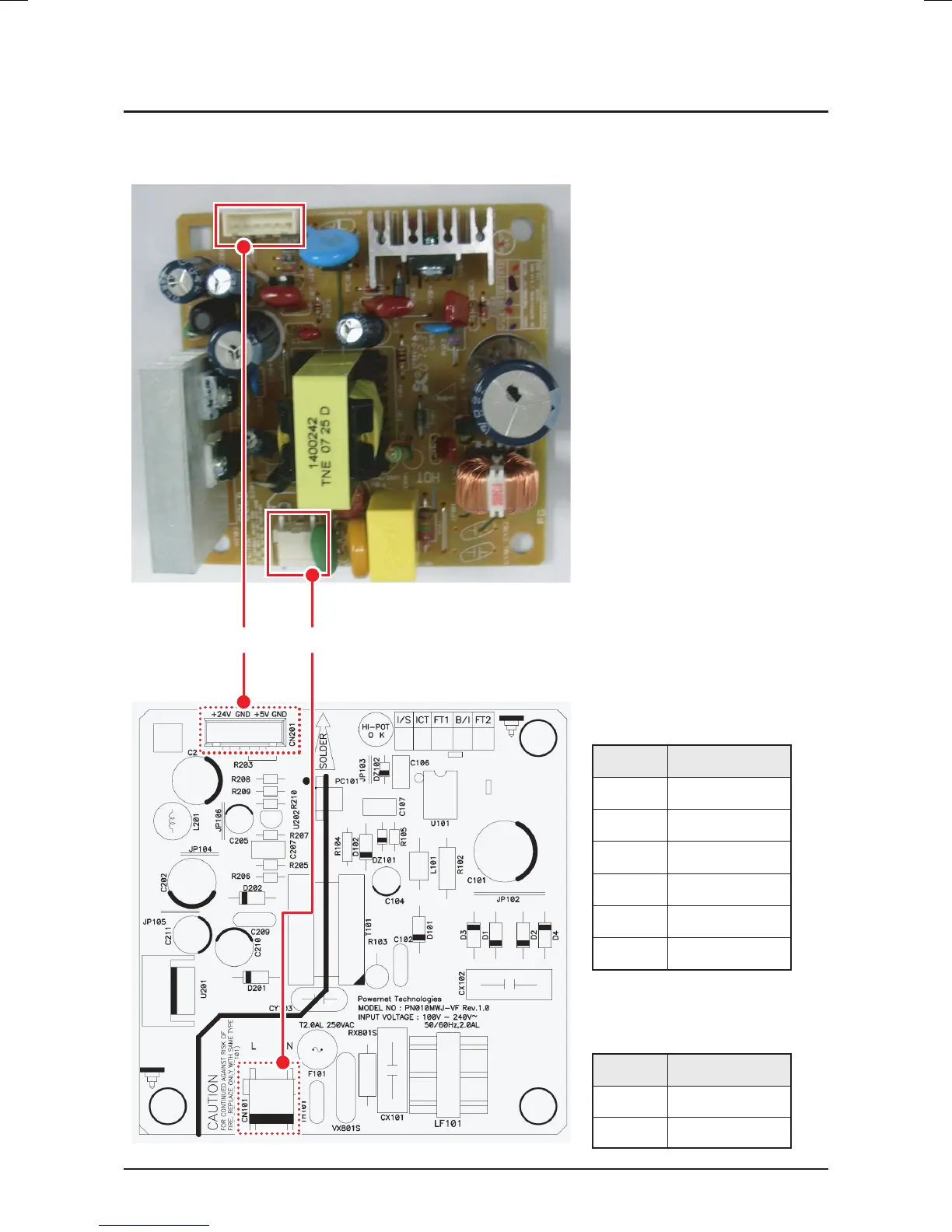

6-4 PBA location diagram (P-07QR only)

6-4-1 SMPS 35W TYPE

1 CN2 (DC POWER OUTPUT)

Pin No. Signal

1 GND

2 5Vdc

3 GND

4 GND

5 24Vdc

6 24Vdc

2 CN1 (220Vac POWER INPUT)

Pin No. Signal

1 220Vac

2 220Vac

P-07QR_L_U-Eng.indb 5 2008-07-22 ｿﾀﾈﾄ 2:55:26

Table of Contents3
Precautions on Electricity (P-07QR Only)5
Precautions on Installation6
Precautions on Use7
Precautions on Services (P-07QR Only)8
Product Characteristics9
Major Specifications10
Appearance and Dimensions11
Installation Materials13
- Installing the Product15
Checking the System after Installation17
Disassembling and Refitting Information19
Draining Water before Disassembling the Product20
- Separating the Top Cover21
- Front Assy Part Separation22
- Rear Cover Part Separating24
Exploded View and Parts List of P-07QR/L/U28
Service Parts List of P-07QR/L/U31
Electrical Wiring Diagram (P-07QR Only)35
Cable Specification (P-07QR Only)36
Water Piping Diagram37
- P-07QU Water Piping Diagram38
PBA Location Diagram (P-07QR Only)39
Names of each Part43
Water Filtering System44
- The 5-Step Water Filtering System (P-07QU)45
Toto Services46
- Replacing Filters47
- Cleaning and Maintenance49
