Coway P-07QR - Rear Cover Part Separating

Disassembling and refitting
4-6
Coway co., Ltd

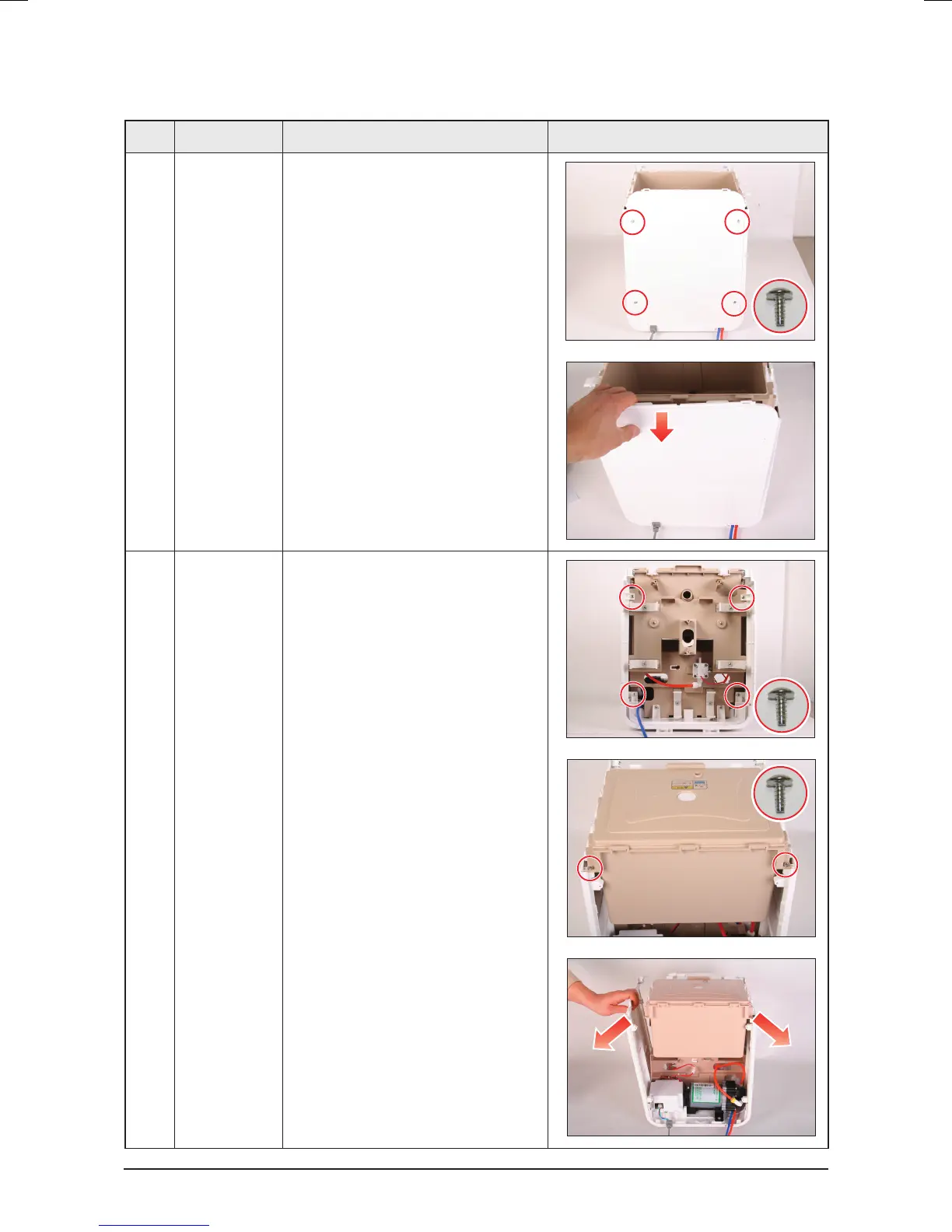

4-2-4 Rear cover Part separating
No. Part name Explanation Reference picture
1 Rear cover 1) Remove the 4 screws from the
Rear cover.
: 4-4x10 TAP
2) Separate the
Rear cover in the
direction of the arrow.
2 Side Assy
R/L
1) Separate 4 screws from the
Side
Assy R/L.
: 4-4x10 TAP
2) Remove the 2 screws from the
main tank.
: 2-4x10 TAP
3) Please separate it in the direction
of the arrow.
