Coway P-07QR - Page 25

Disassembling and refitting
Coway co., Ltd
4-7

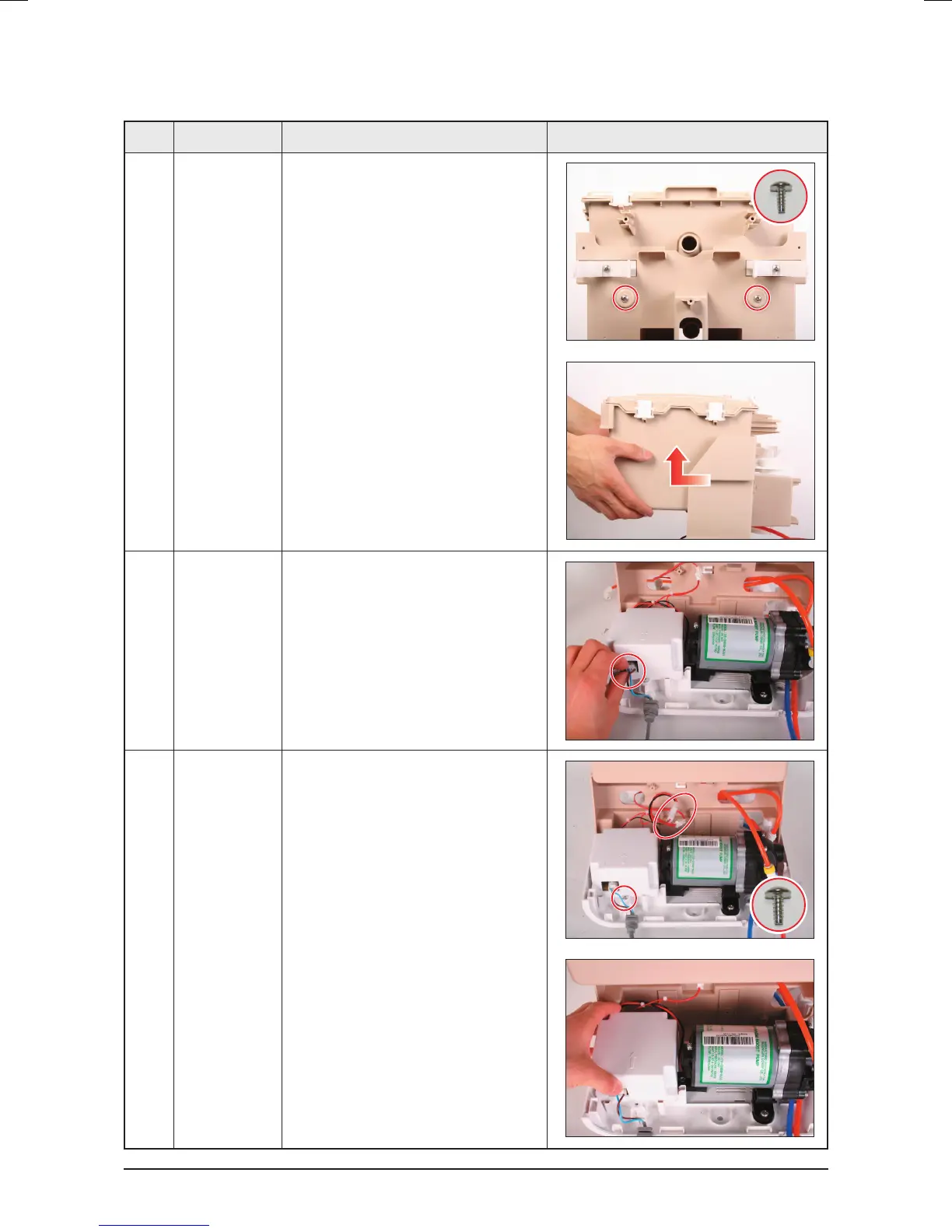

No. Part name Explanation Reference picture
3 Main tank 1) Remove the 2 screws from the
Main tank.
: 2-4x10 TAP
2) Separate the
Main tank in the
direction of the arrow.
4 Power code 1) Separate the connector in the
Power code completely.
(P-07QR only)
5 SMPS 1) Separate the 1 screw and the 2
connectors from SMPS.
(P-07QR only)
: 4x10 TAP
2) Separate SMPS.
(P-07QR only)
