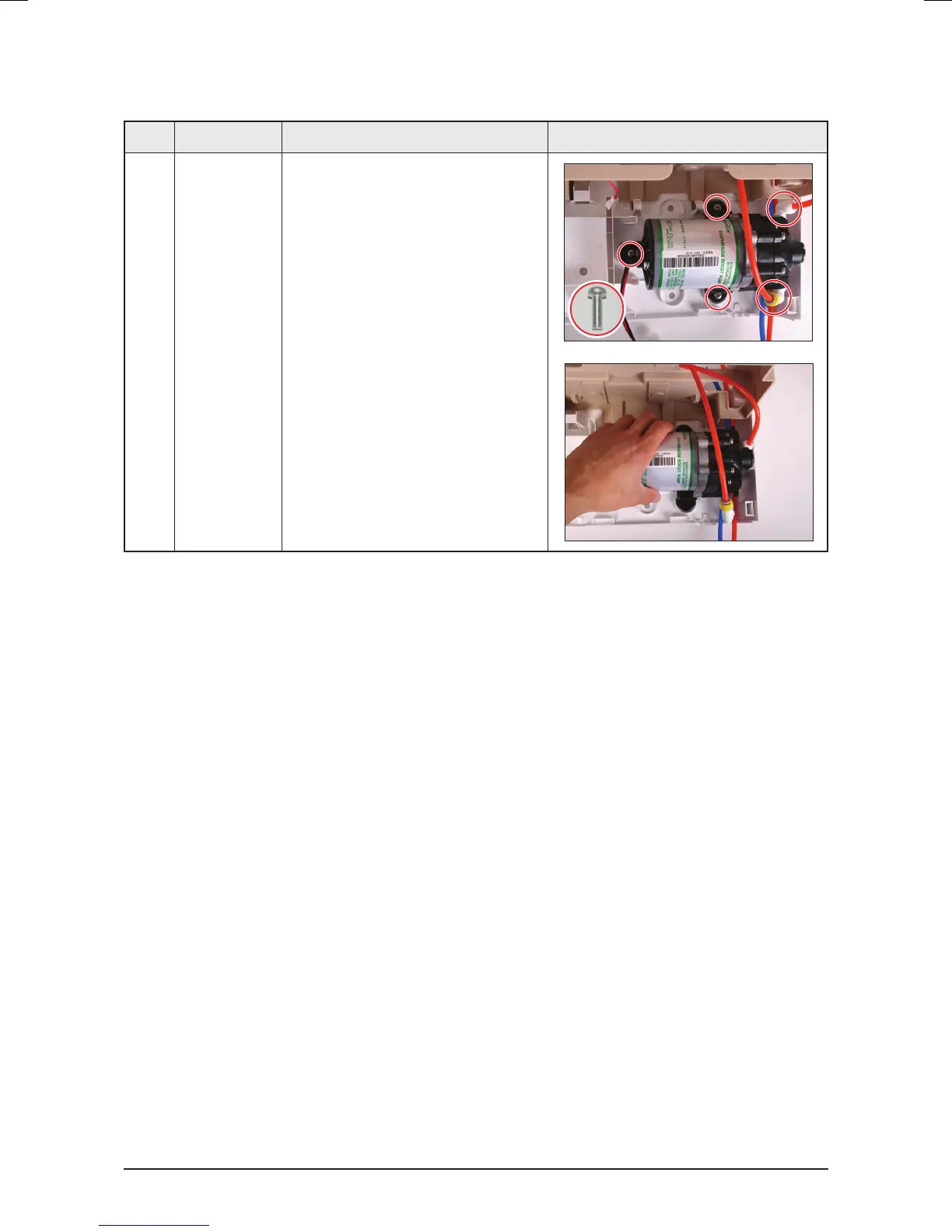

Disassembling and refitting
4-8
Coway co., Ltd
No.
Part name
Explanation
Reference picture
6
Booster
pump
1)
Separate the 3 screws and the 2
connectors from Booster pump.
(P-07QR only)
: 3-M6x18
2)
Separate the
Booster pump.
(P-07QR only)
P-07QR_L_U-Eng.indb 8
2008-07-22 ｿﾀﾈﾄ 2:55:12
25
