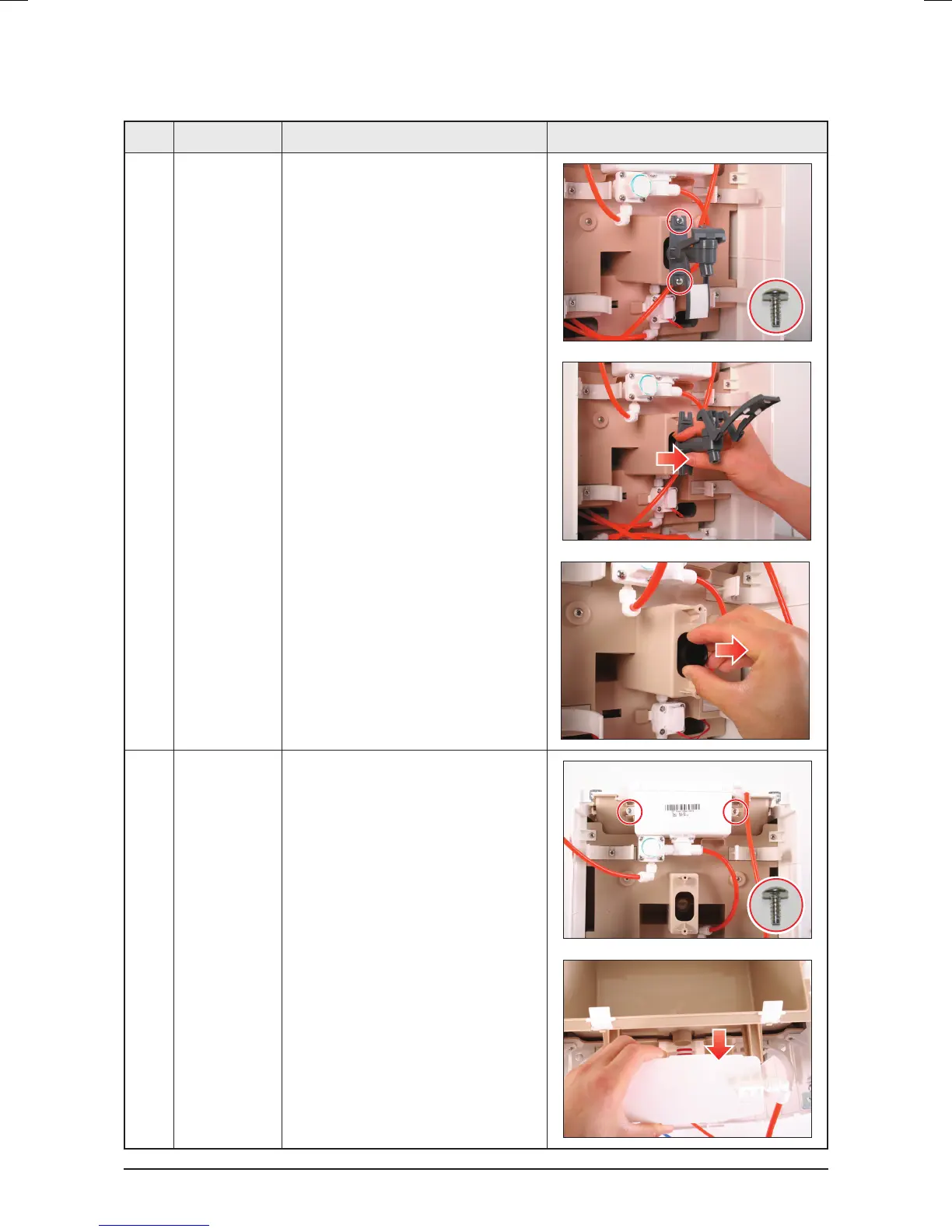

Disassembling and refitting

Coway co., Ltd

4-5

No. Part name Explanation Reference picture

4 Coke Assy 1) Remove the 2 screws from the

Coke Assy

: 2-4x10 TAP

2) Separate the Coke Assy

pulling it forward.

3) Separate the coke connector by

pulling it forward with full force.

5 FLC-3.5 1) Separate 2 screws from FLC-3.5.

(P-07QR only)

: 2-4x10 TAP

2) Separate by pulling FLC-3.5

forward. (P-07QR only)

P-07QR_L_U-Eng.indb 5 2008-07-22 ｿﾀﾈﾄ 2:54:38
