Parts location diagrams
7-2
Coway co., Ltd
1. Harness - SMPS
(connection)
Remaining
2. Harness - Front PBA Connection
3. Harness - Front PBA
(connection)
Remaining

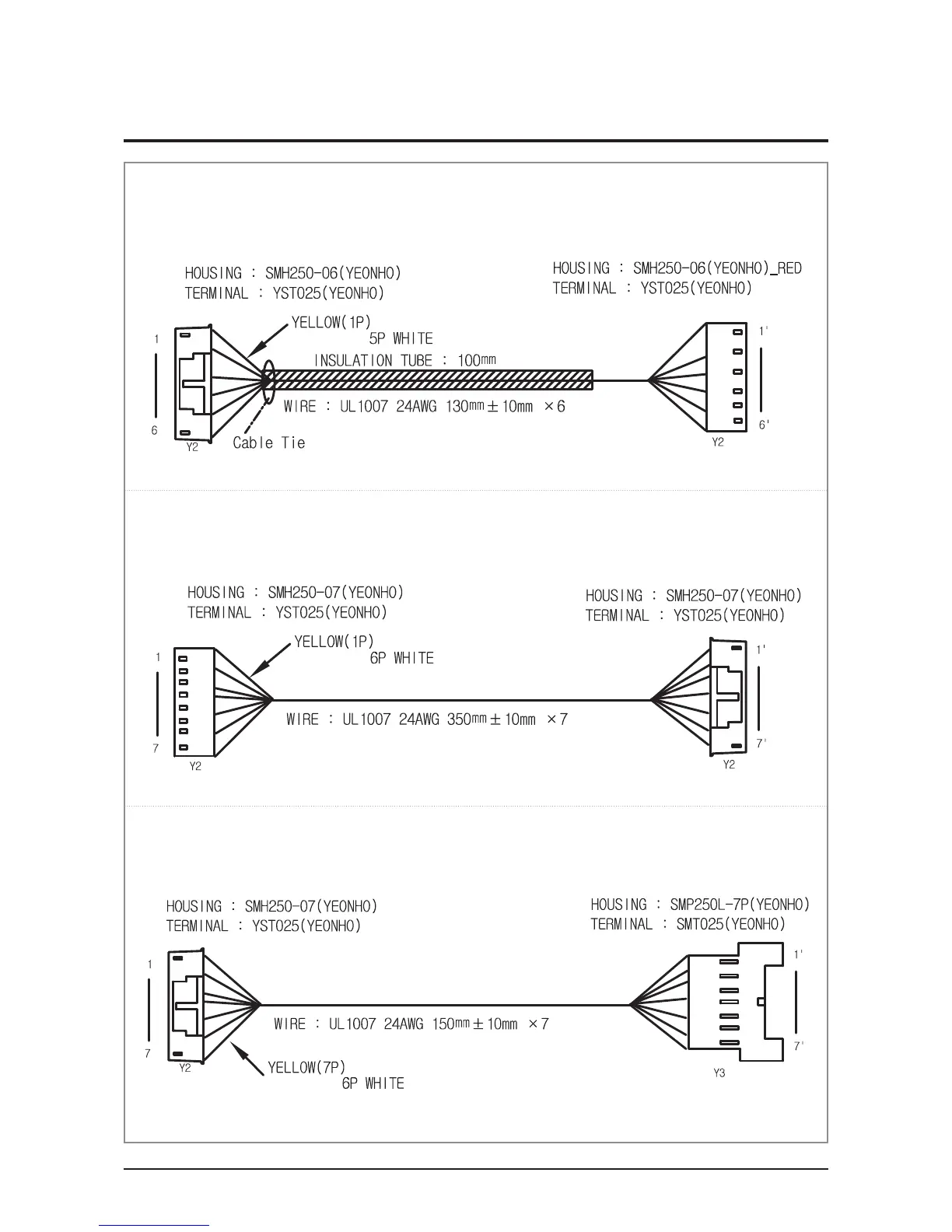

7-2 Cable Specification
