Coway P-220R - 7-4 PBA location diagram

Parts location diagrams
Coway co., Ltd
7-5
2 CN2
Extract Valve
Pin No. Signal
1 DC
24 V
2 SIGNAL
1
CN10
Feed/NOS Valve
Pin No. Signal
1 DC
24 V
2 SIGNAL
3 DC
24 V
4 SIGNAL
3 CN3
Low
Level Sensor
Pin No. Signal
1 DC
5 V
2 SIGNAL
3 GND

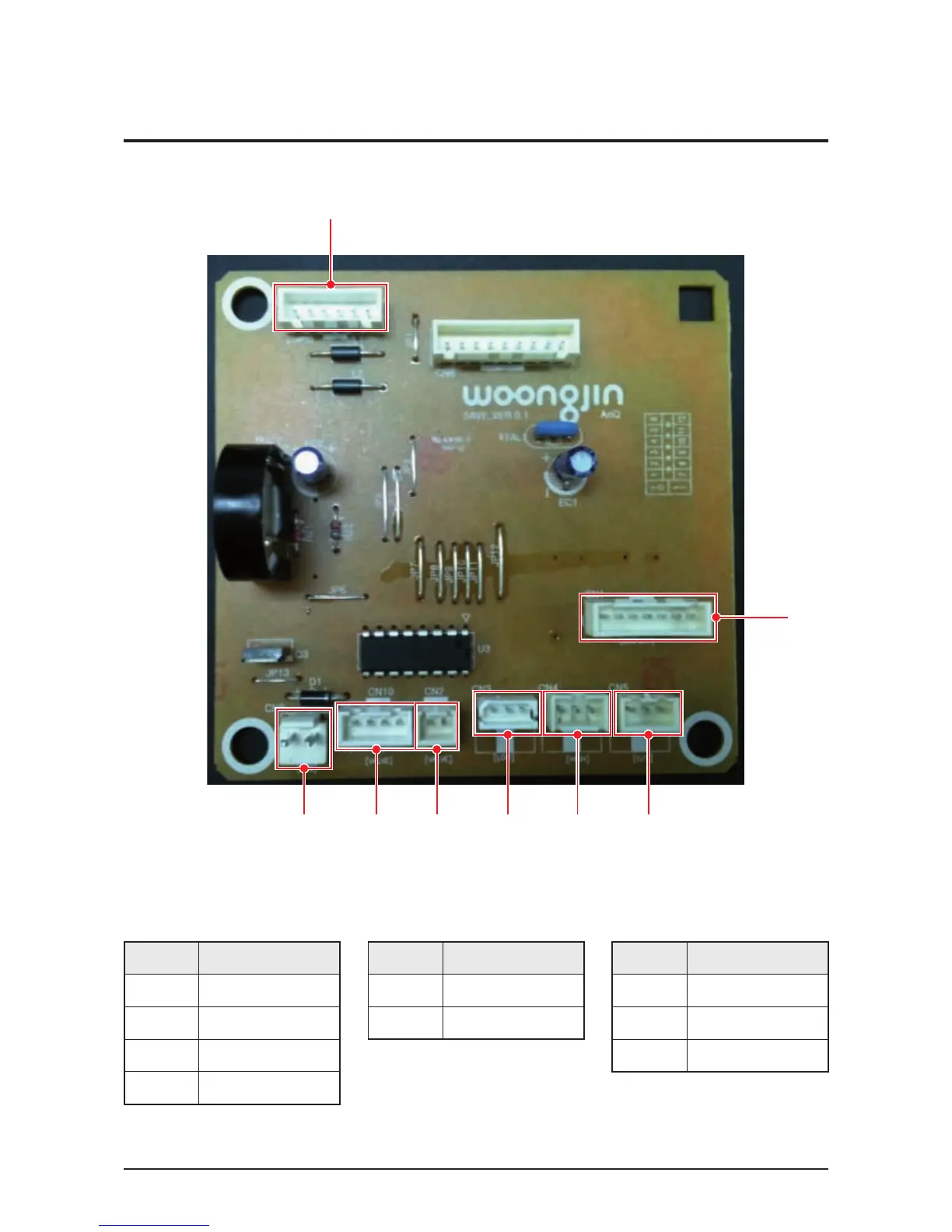

7-4 PBA location diagram
7-4-1 MAIN PBA
1 2 3 4 5
6
7
8
